Allen-Bradley 1769-L24ER-QB1B User Manual

178 Rockwell Automation Publication 1769-UM021G-EN-P - October 2015
Chapter 7 Use I/O Modules with CompactLogix 5370 L1 Controllers

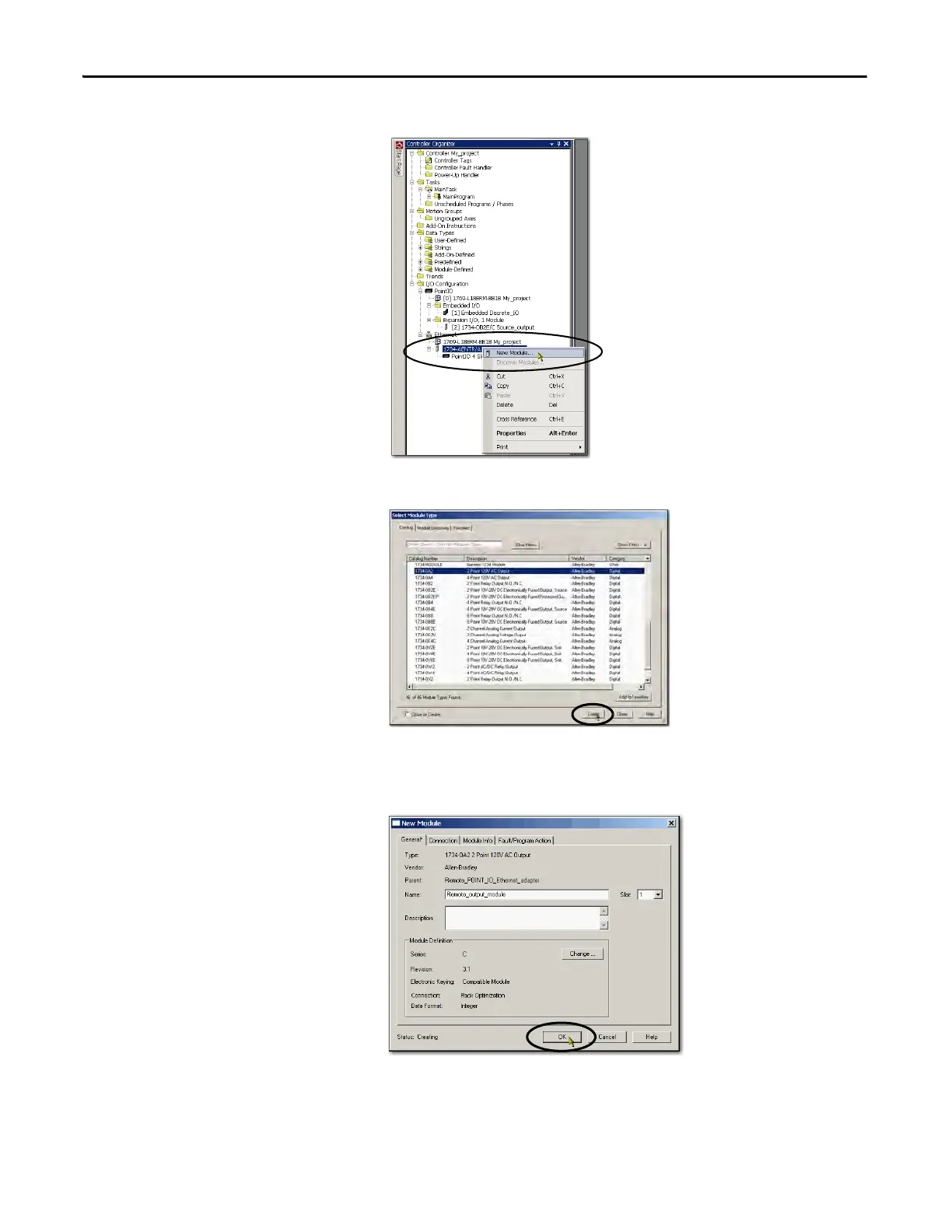

4. Right-click the new adapter and choose New Module.
5. Select the desired I/O module and click Create.
The New Module dialog box appears.
6. Configure the new I/O module as necessary and click OK.
7. Repeat these steps to add all desired distributed I/O modules to
the project.

Allen-Bradley 1769-L24ER-QB1B Specifications

General

Brand	Allen-Bradley
Model	1769-L24ER-QB1B
Category	Controller
Language	English
