Rockwell Automation Publication 1769-UM021G-EN-P - October 2015 261
Use I/O Modules with CompactLogix 5370 L3 Controllers Chapter 9

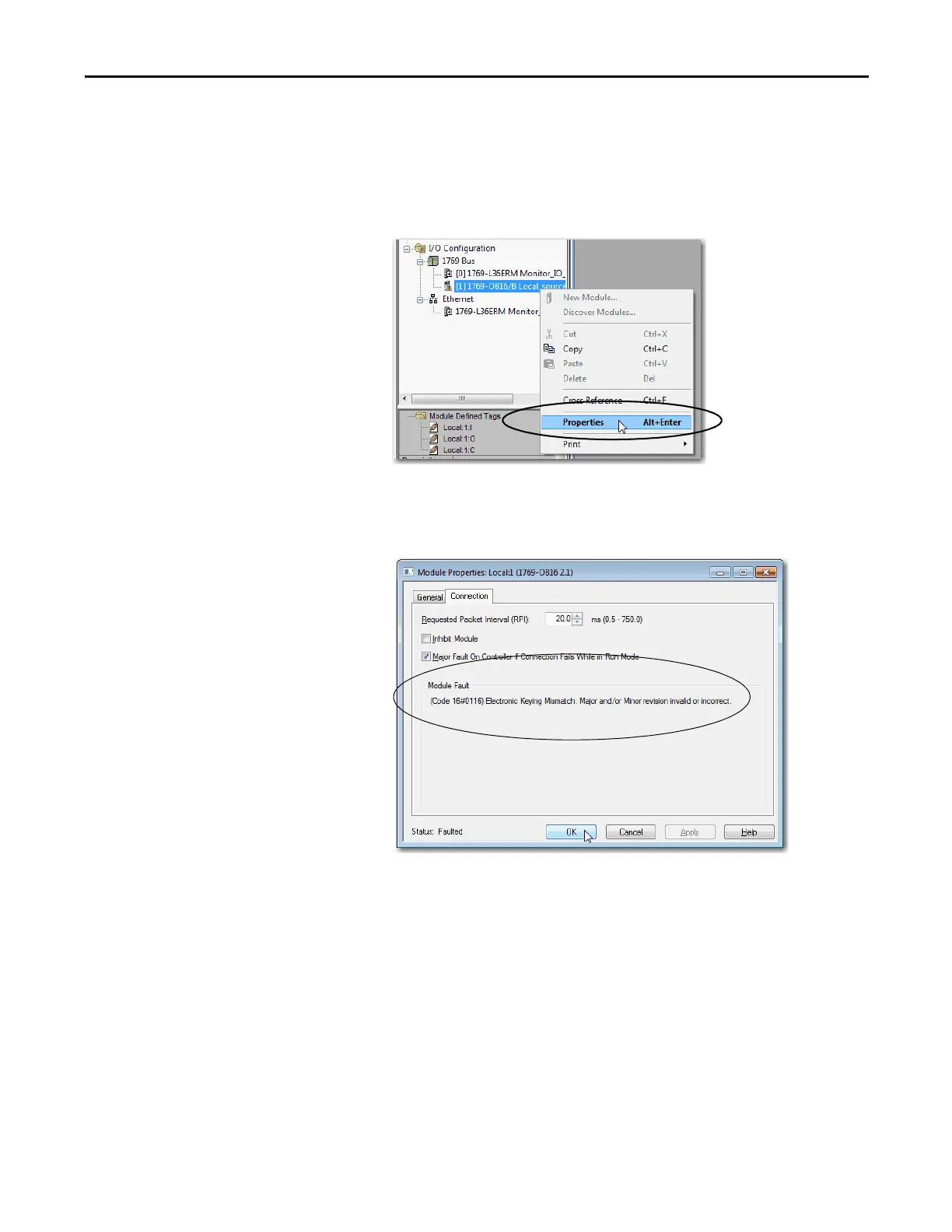

To see the fault description on the Connection tab in Module Properties dialog
box, complete these steps.
1. In the I/O Configuration, right-click the faulted I/O module and
choose Properties.
2. Click the Connection tab and use the fault description, in the Module
Fault section, to diagnose the issue.
3. Click OK to close the dialog box and remedy the issue.
