Chapter 8 Use I/O Modules with CompactLogix 5370 L2 Controllers
Table 25 - Example CompactLogix 5370 L2 Control Systems with a 1769-HSC High-speed Counter Module
Controller Cat. No. Number of Embedded
I/O Modules
1769-HSC High-speed Counter Module Power Supply Distance Rating Calculation Impact
1769-L24ER-QB1B 1 The embedded I/O module is the first module in the module count. At its maximum power supply distance rating, the

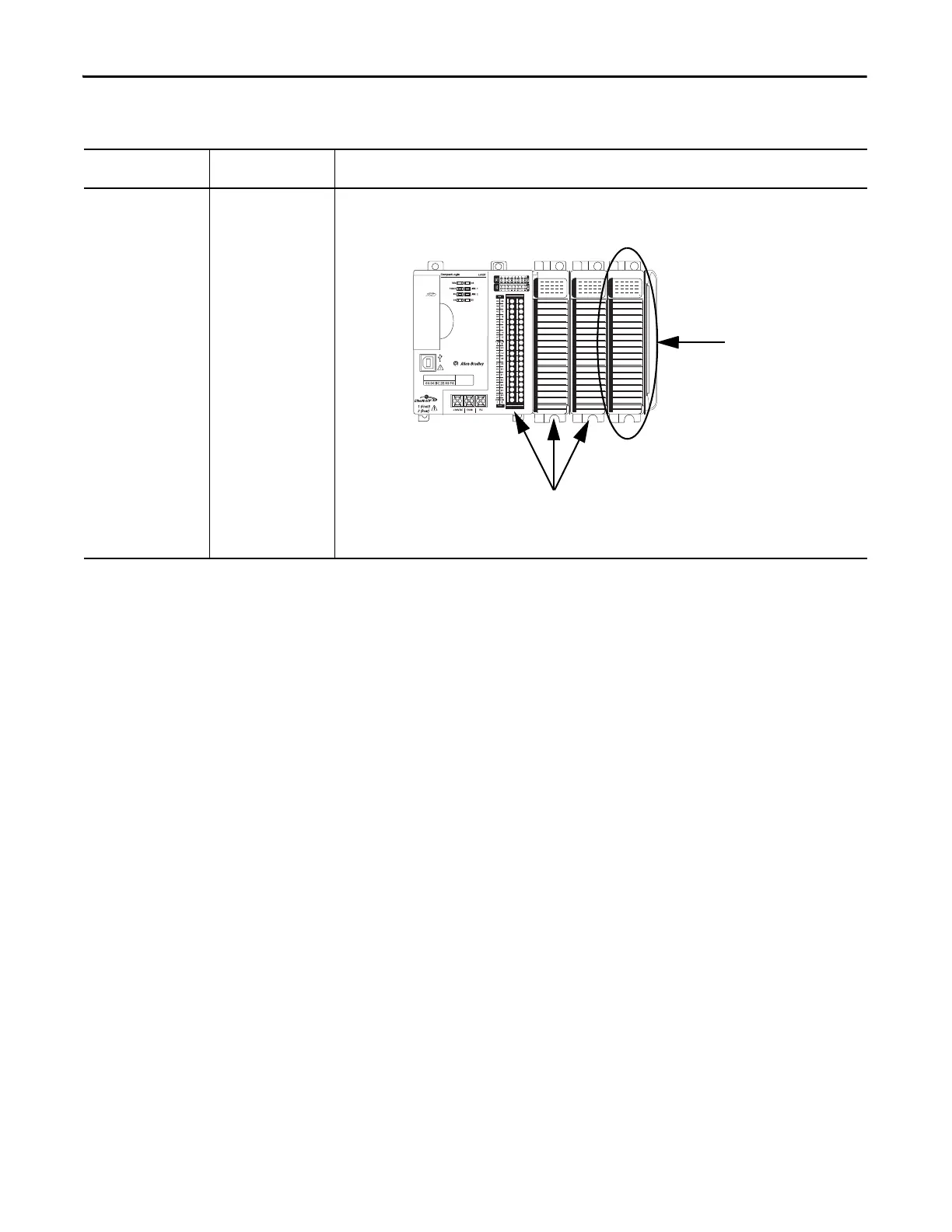

1769-HSC high-speed counter module can be installed in slot 3 of the local expansion modules, as shown in the following
graphic.
Three modules between the power supply and the 1769-HSC high-speed counter module.
With this controller catalog number, you can only install up to two local expansion modules
between the controller and the 1769-HSC high-speed counter module.
1769-HSC Module
To Next Page
