132 Rockwell Automation Publication 1769-UM021G-EN-P - October 2015
Chapter 6 Communicate over Networks

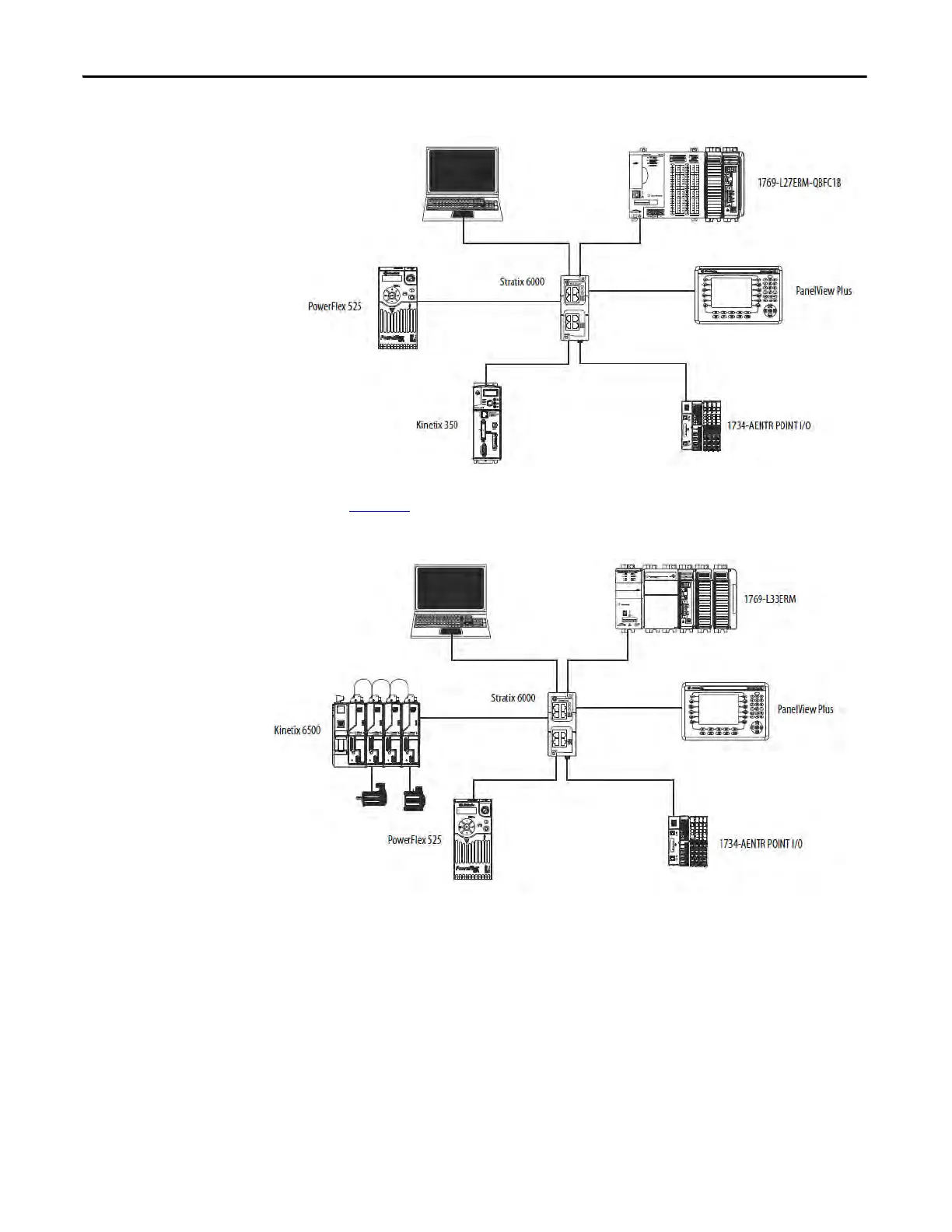

Figure 15 - Example 1769-L27ERM-QBFC1B Control System Using a Star Network Topology
Figure 16 shows an example 1769-L33ERM control system using a star topology.
Figure 16 - Example 1769-L33ERM Control System Using a Star Network Topology
