Rockwell Automation Publication 1769-UM021G-EN-P - October 2015 195
Use I/O Modules with CompactLogix 5370 L2 Controllers Chapter 8
The embedded high-speed counter also supports four output points. Figure 37

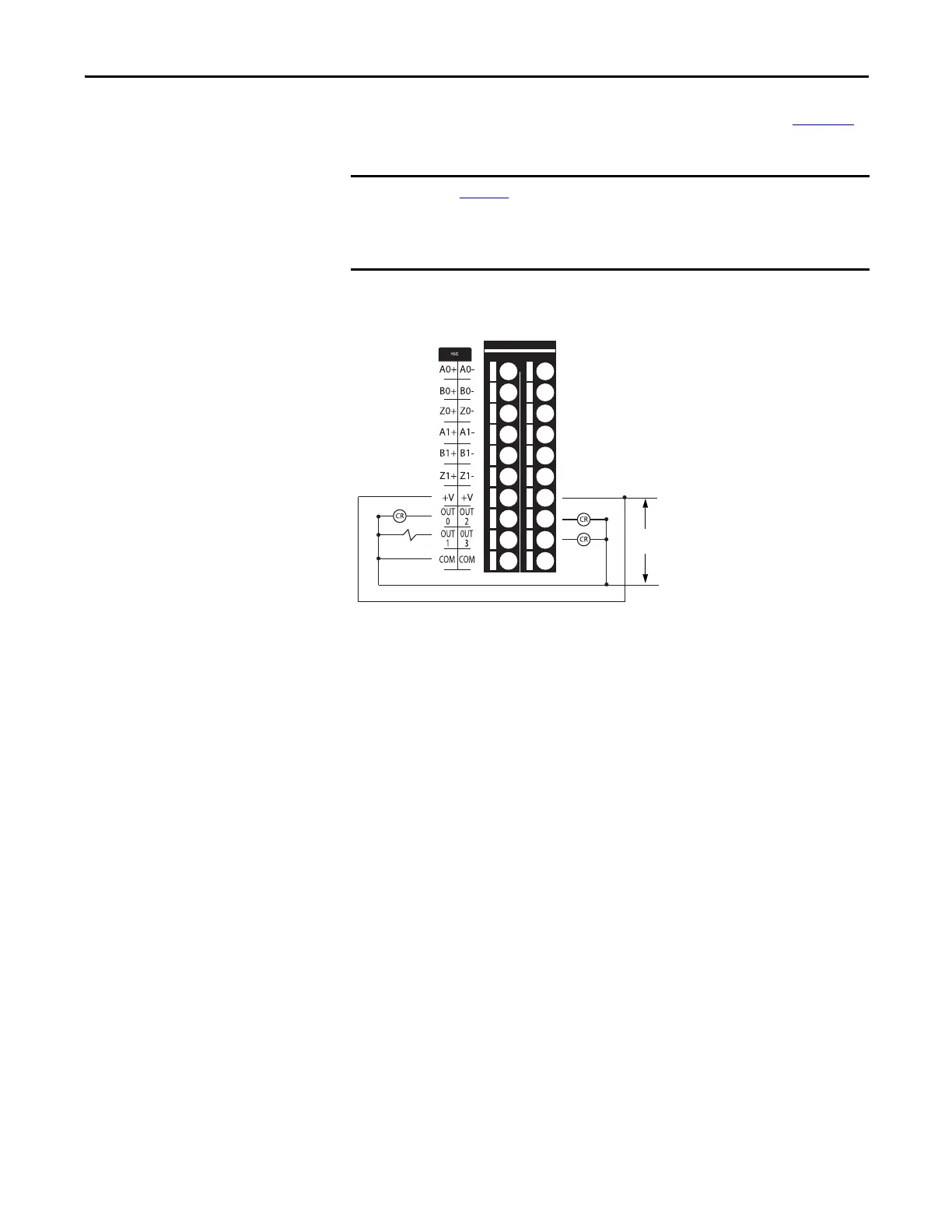

shows a wiring diagram for the embedded high-speed counter output points.
Figure 37 - 1769-L27ERM-QBFC1B Controller Embedded High-speed Counter Output
Wiring Diagram
IMPORTANT
Figure 37 shows the embedded high-speed counter output points on the
1769-L27ER-QB1B controller. The embedded high-speed counter points on the
1769-L24ER-QBFC1B and 1769-L27ERM-QBFC1B controllers are organized and
wired the same.
+DC
5/24V DC
-DC
