8 FLEX I/O Digital Input Modules
Publication 1794-IN093E-EN-P - August 2018
Install Your Digital Input Module
Compatibility
The following communication adapters are required to ensure compatibility with
the 1794-IB32:
Remote I/O 1794-ASB series E or later
1794-ASB2 series D or later
ControlNet 1794-ACN15 series C, firmware revision 4.1 or later
1794-ACNR15 series C, firmware revision 4.1 or later
DeviceNet 1794-ADN Series B, firmware revision 2.4 or greater for
out-of-box compatibility
Ethernet 1794-AENT series A, firmware revision 2.4 or later
PROFIBUS 1794-APB series A, version 1.1 of the GSD file
(You can download the GSD file at www.ab.com/networks/gsd.)
ControlLogix® Family RSLogix 5000® programming software, version 11 or later

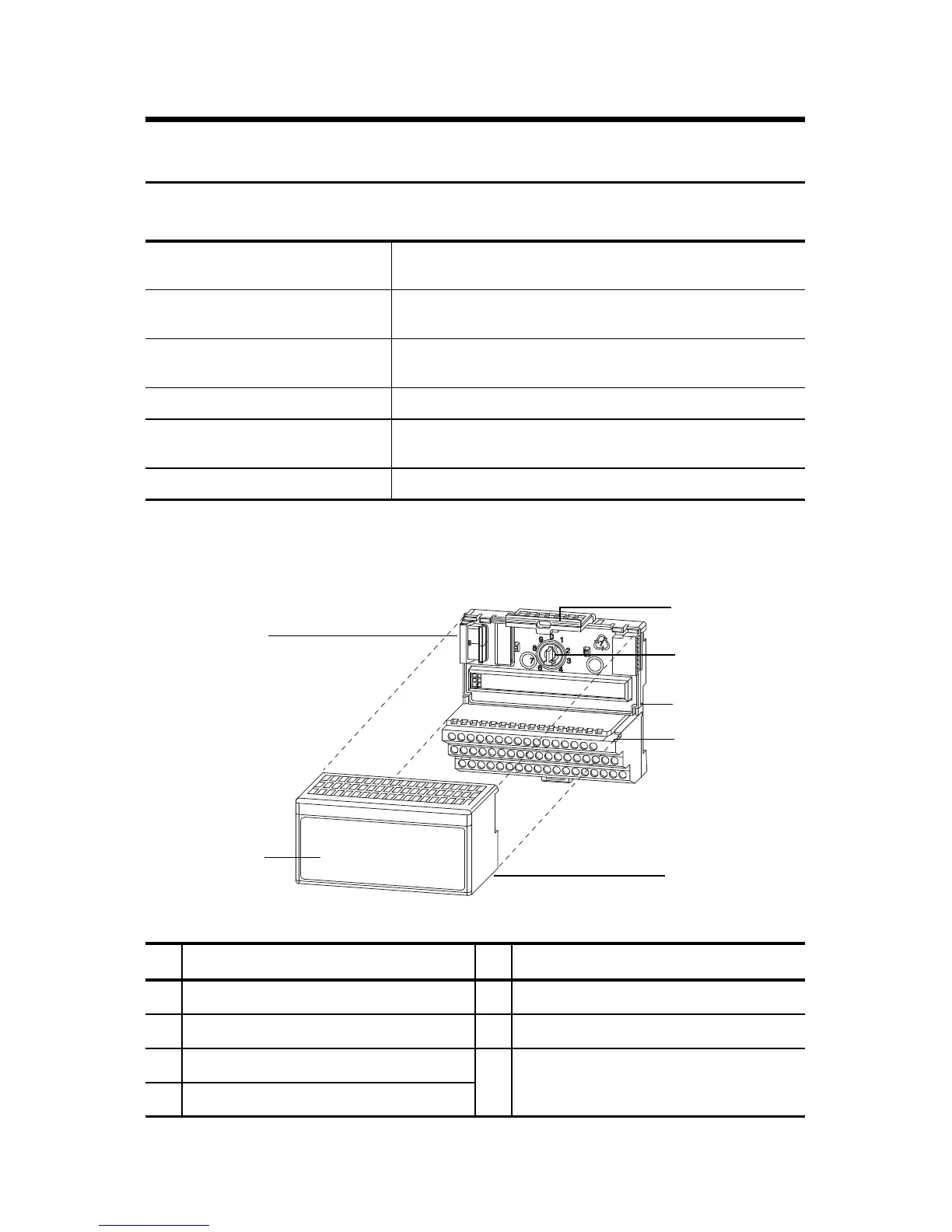

Description Description
1 FlexBus connectors 5 Groove
2 Latching mechanism 6 Alignment bar
3 Keyswitch
7
Module
4 Terminal base
