Allen-Bradley 2098-DSD-010 - Limit and - Limit Inputs

Publication 2098-IN003E-EN-P — April 2004
Ultra3000 Connector Data 2-43

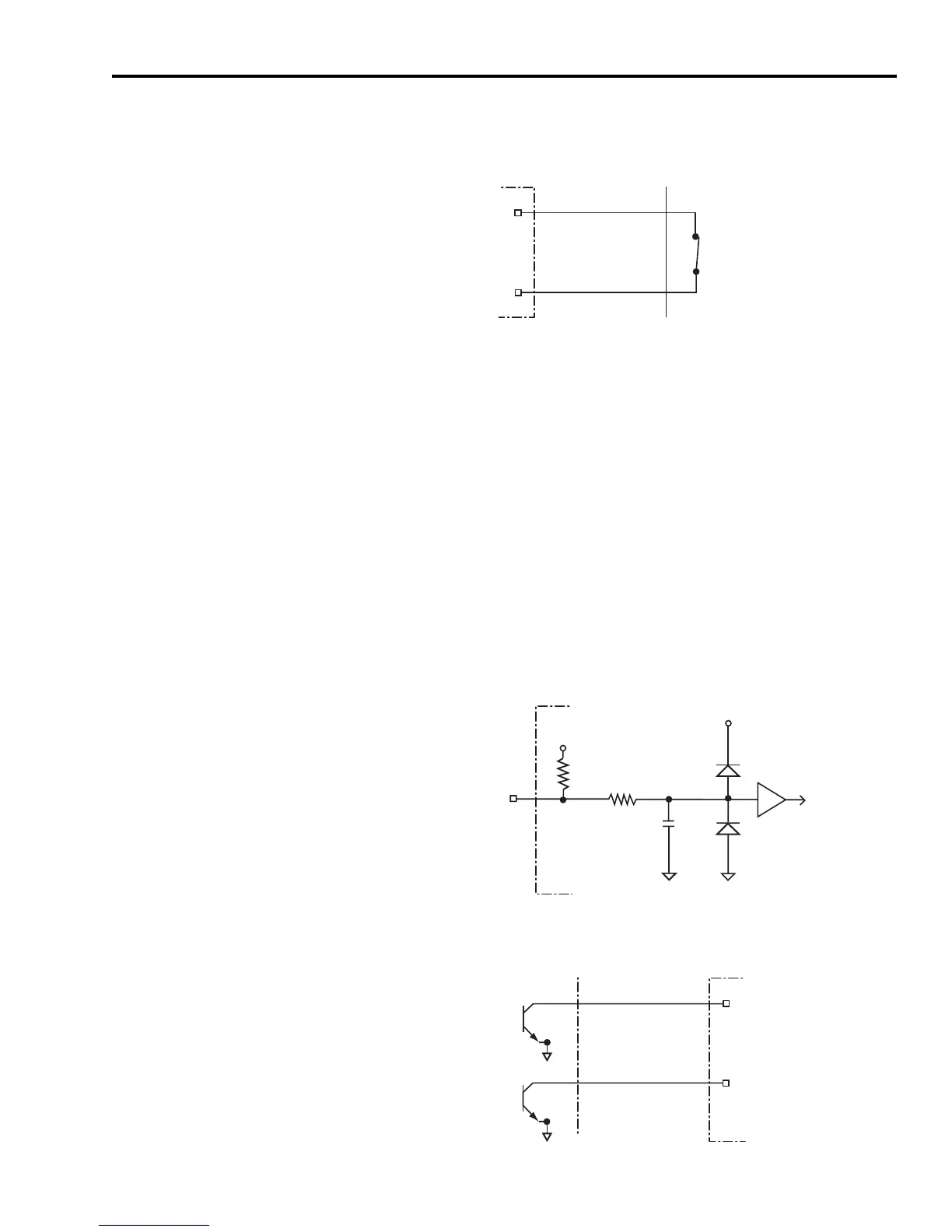

Figure 2.40
Typical Thermostat Connection
+ Limit and - Limit Inputs
The Ultra3000 drive includes integral overtravel limit inputs on the
motor encoder connector (CN2). The logic is designed so that an open
condition will halt motion in the corresponding direction. The integral
limits are configured by the actual motor file and not software
programmable. Although typically not for use on standard servo
motors, they may be activated for linear motors or other unique
applications. Figure 2.41 shows the configuration of the +Limit and
-Limit inputs. Figure 2.42 shows a typical connection to a motor with
integral limit switches.
Figure 2.41
+ Limit and - Limit Input Configuration
Figure 2.42
Typical + Limit and - Limit Connection
TS
ECOM
Thermostat
normally
closed
Ultra3000 Drive
Motor/Encoder
1k Ω
1k Ω
+ 5 V
+ 5 V
0.01 μF
COMMON COMMON
+ LIMIT
or
- LIMIT
Ultra3000 Drive
POSITIVE
OVERTRAVEL
LIMIT +
LIMIT -
NEGATIVE
OVERTRAVEL
Motor/Encoder Ultra3000 Drive
