Rockwell Automation Publication 2198-UM002G-EN-P - February 2019 431

Motor Control Feature Support Appendix E

Configure the Axis for SLAT

Follow these steps to configure the SLAT attributes.

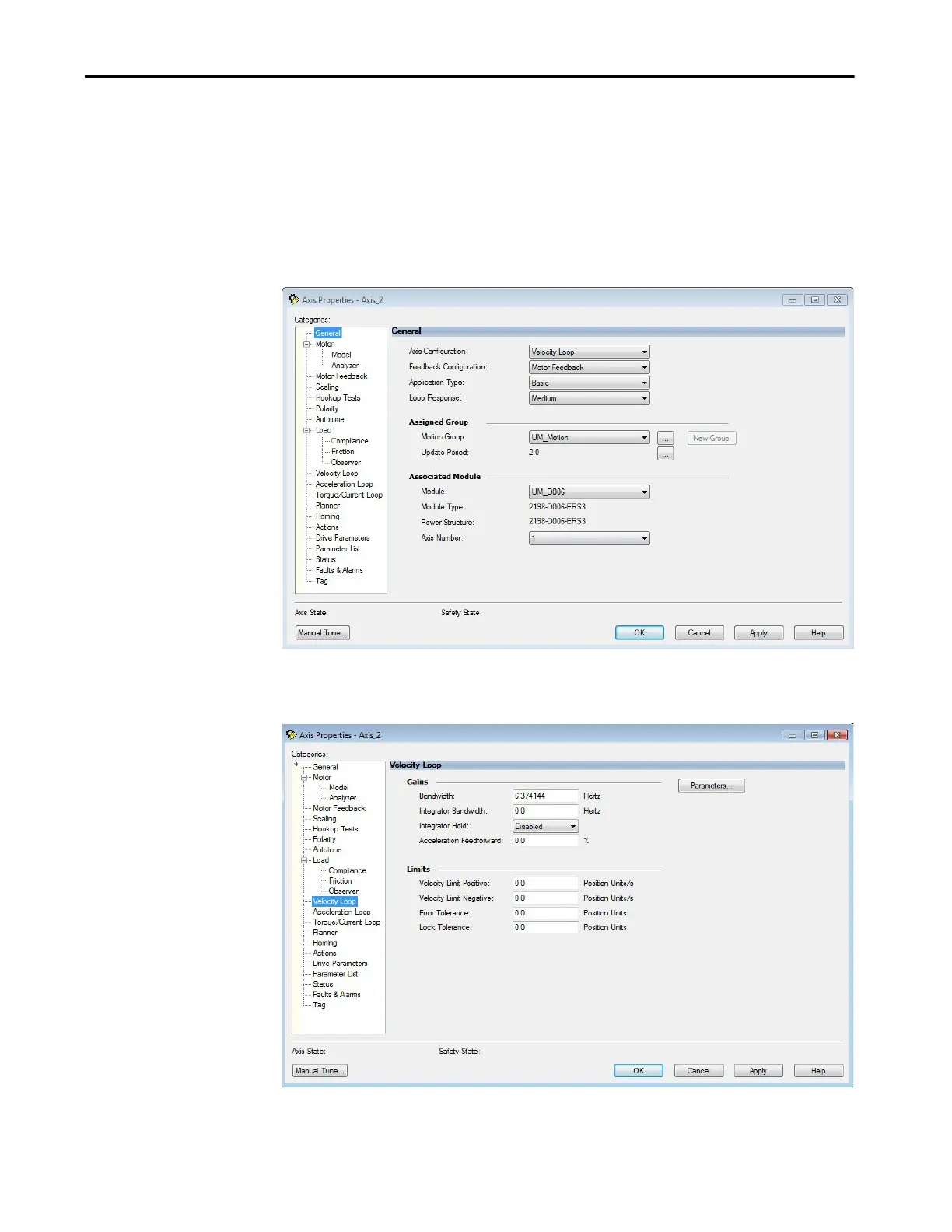

1. In the Controller Organizer, right-click an axis and choose Properties.

2. Select the General category.

The General dialog box appears.

3. From the Axis Configuration pull-down menu, choose Velocity Loop.

The Velocity Loop dialog box appears.

4. Enter values for the Velocity Loop attributes appropriate for your

application.
