Battery Replacement
3. Remove the battery.
4. Insert the new battery with the positive polarity (+) facing up.
Replace Battery in PanelView Plus 6 and PanelView Plus 6 Compact
Terminals
400 and 600 Terminals
You can replace the battery with the terminal mounted in the panel. No special tools are required
to remove the battery.
Follow these steps to replace the battery in a 400 or 600 terminal.
1. Disconnect power from the terminal.
2. Unlatch the battery cover by pulling it straight out.
3. Lift the cover.

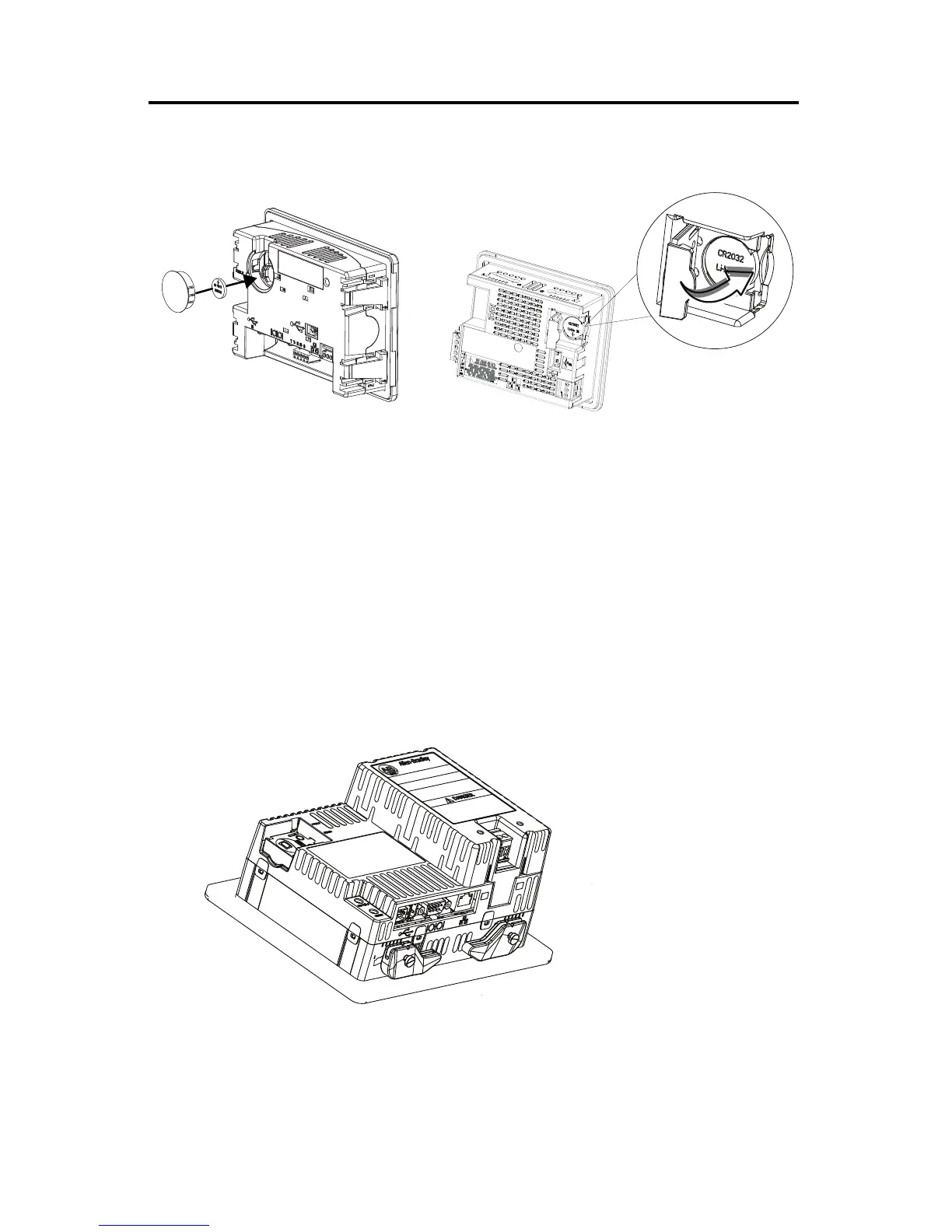

Battery
Cover
Battery
C600 /C1000
C400
To Next Page
