Battery Replacement

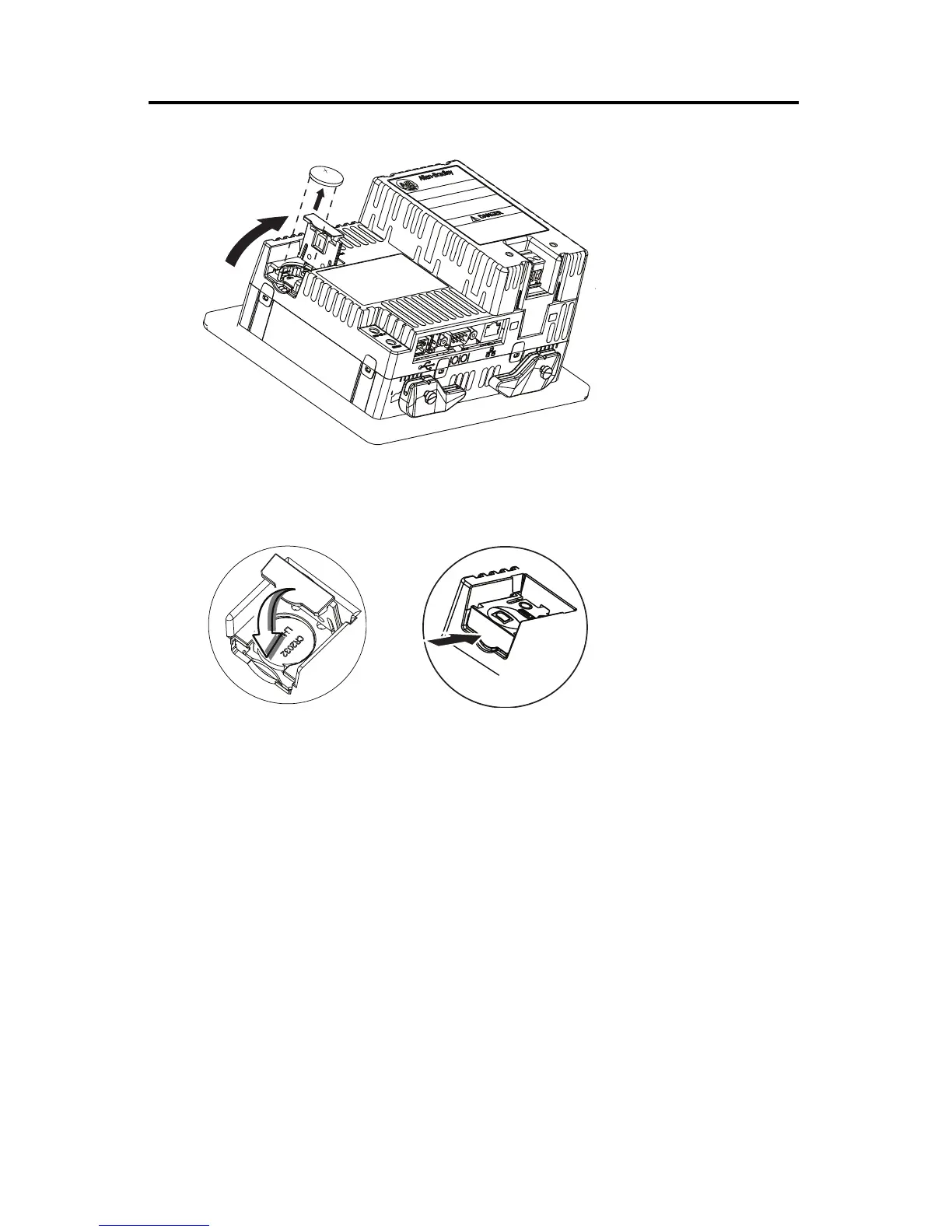

4. Remove the battery.
5. Insert the new battery with the positive (+) polarity facing up and press gently until the
battery snaps into place.
6. Close the battery cover and push the end in until you hear a click.
Replace Battery in PanelView Plus 6 Compact Terminals
1000 Terminals
Follow these steps to replace the battery in a 1000 terminal.
1. Disconnect power from the terminal.
2. Place the terminal, display side down, on a flat stable surface.
3. Detach the communication module, if attached, from the logic module by removing the
four screws.
