Rockwell Automation Publication 2711P-IN009J-EN-P - December 2017 9

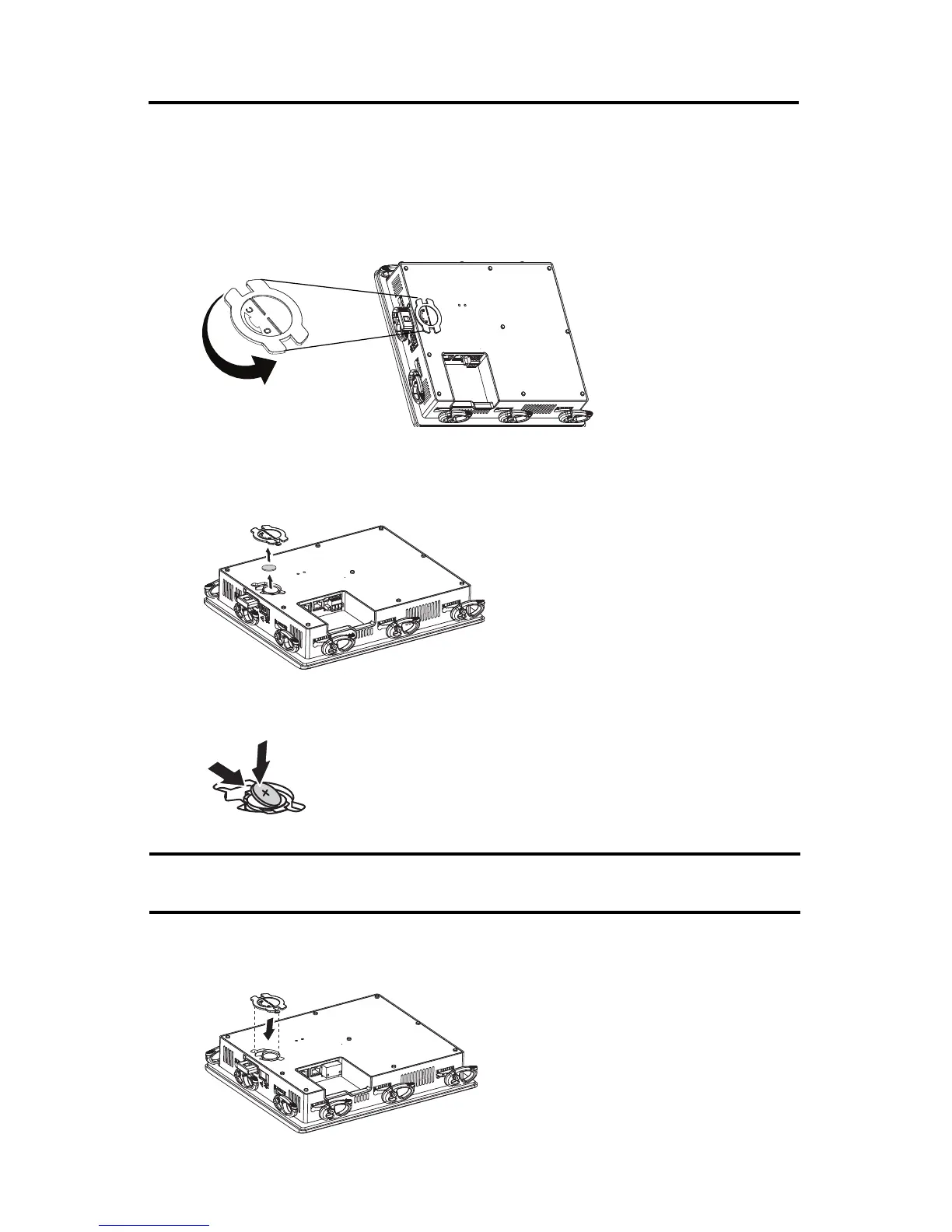

Battery Replacement
Replace Battery in PanelView Plus 7 Standard Terminals
Follow these steps to replace the battery in PanelView Plus 7 Standard terminals.
1. Disconnect power from the terminal.
2. Remove the battery cover by rotating it from the C(lose) to O(pen) position.
3. To disengage the battery, on the metal latch, press the vertical center tab away from the
battery.
The battery is released.
4. Insert the new battery at an angle under the metal latch, with the positive polarity (+)
facing up.
5. Gently press down on the opposite side of the battery until it locks into place.
6. Replace the battery cover by aligning its tabs with the battery opening and rotate the
cover from the O(pen) to C(lose) position.
IMPORTANT Make sure that the battery is fully inserted under the plastic tabs. If the battery is not fully
inserted, damage can occur, and this result voids the warranty.
