Bulletin 900-TC32
Thermocouple/RTD Ranges and Selections
11
Input Ranges (In Degrees C)
✶ Applicable standards by input type are as follows:
K, J, T, E, N, R, S, B: JIS C1602-1995
L: Fe-CuNi, DIN 43710-1985
U: Cu-CuNi, DIN 43710-1985
7 JPt100: JIS C1604-1989, JIS C1606-1989
Pt100: JIS C1604-1997, IEC 751
‡ The non-contact temperature sensor must be configurable for type K thermocouple output within either of the four specified ranges. For example, an OMRON
ES1A or Calex EL Series (Convir) infrared sensor.
§ Shaded areas indicate default setting for thermocouple (900-TC32xT) or platinum RTD (900-TC32xP) type 900-TC32 controllers.
§
§
❉

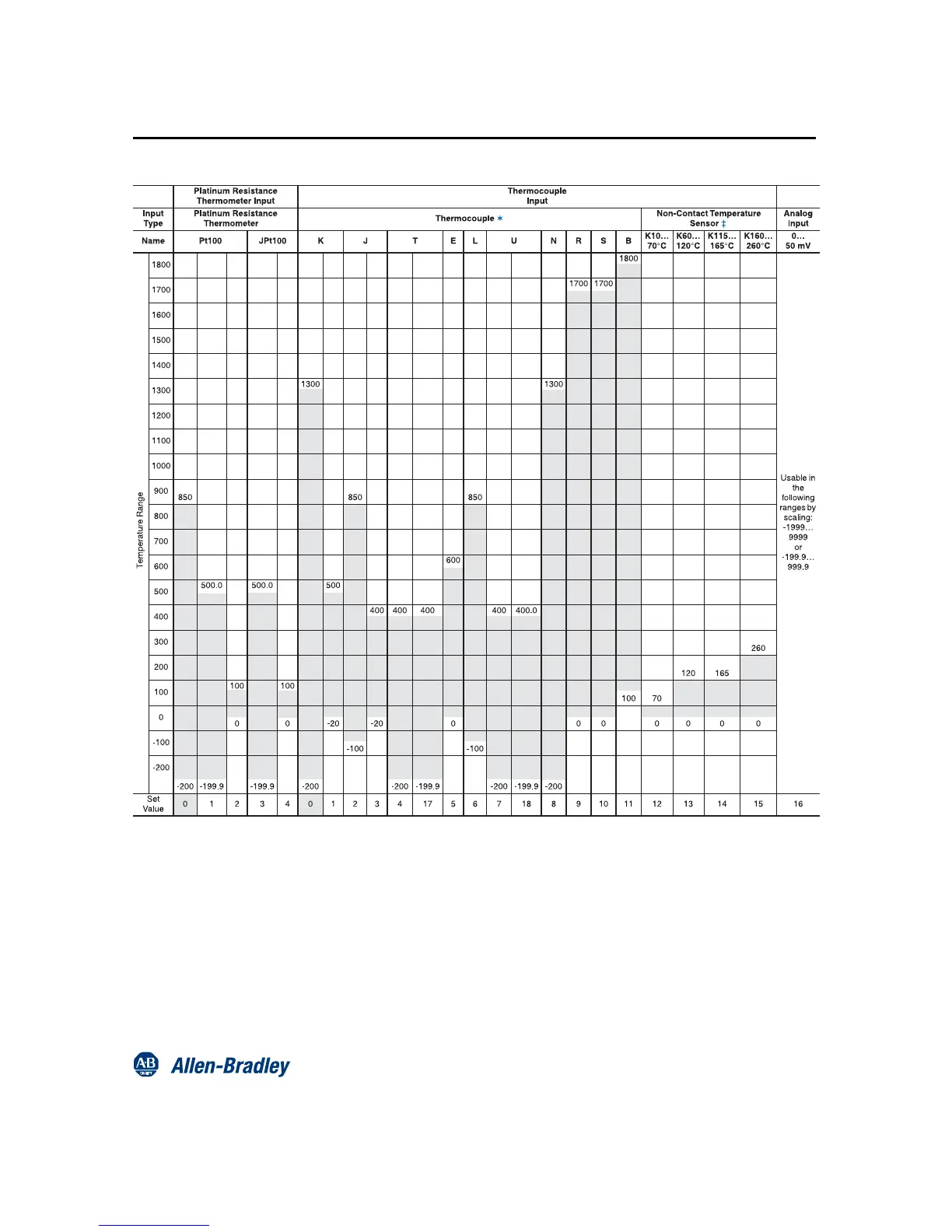

900-TC32 Input Ranges
