Allen-Bradley Compact 1769-OB32 - Transient Pulse Duration

20 Compact 32-point Solid-state 24V dc Source Output Module
Publication 1769-IN031A-EN-P - April 2003

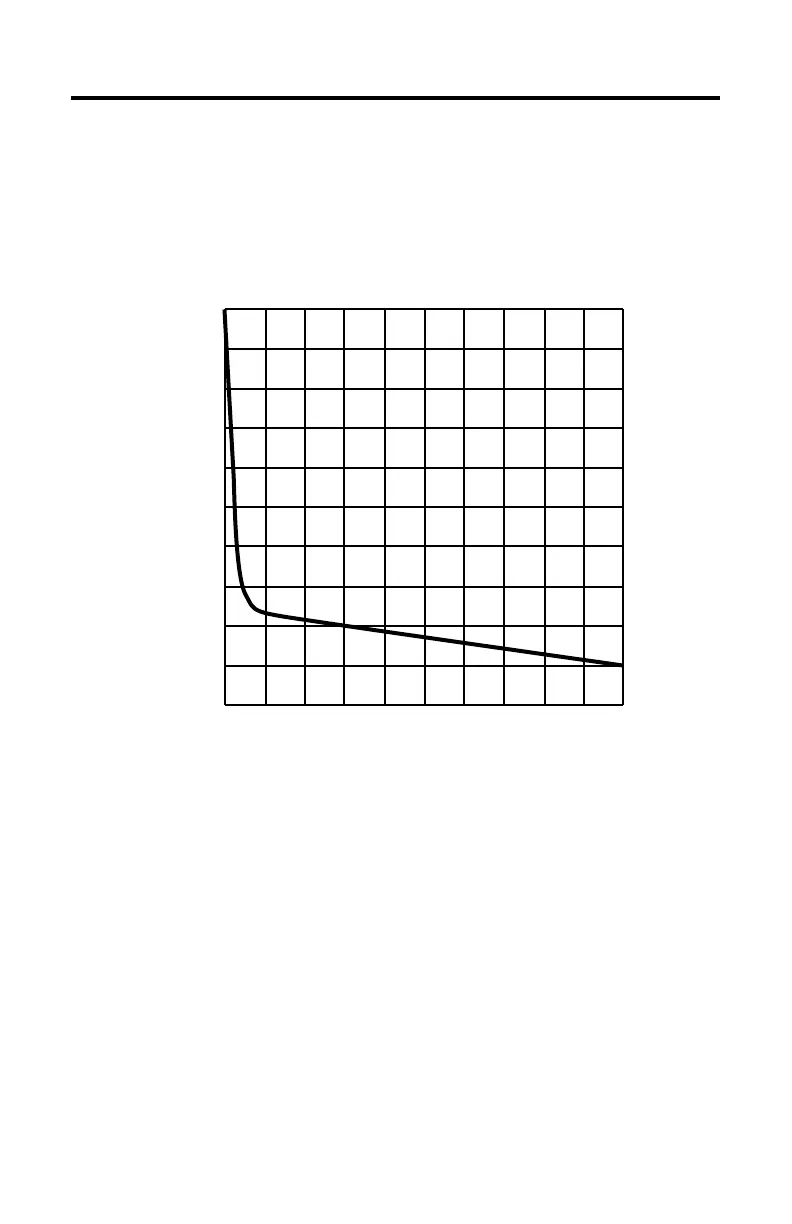

The graph below illustrates that the duration of the transient is proportional to the
load current. Therefore, as the on-state load current increases, the transient pulse
decreases. Power-up transients do not exceed the time duration shown below, for
the amount of loading indicated, at 60°C (140°F).
0.4
1.0
0.9
0.8
0.7
0.6
0.5
0.3
0.2
0.1
0.0
10009008007006005004003002001001
30519-M
On-State Load Current (mA)
Transient Pluse Duration as a Function of Load Current
Time-Duration of transient (mS)
