MicroLogix™ 1500 Programmable Controller Base Units 9
Publication 1764-IN001A-ML-P

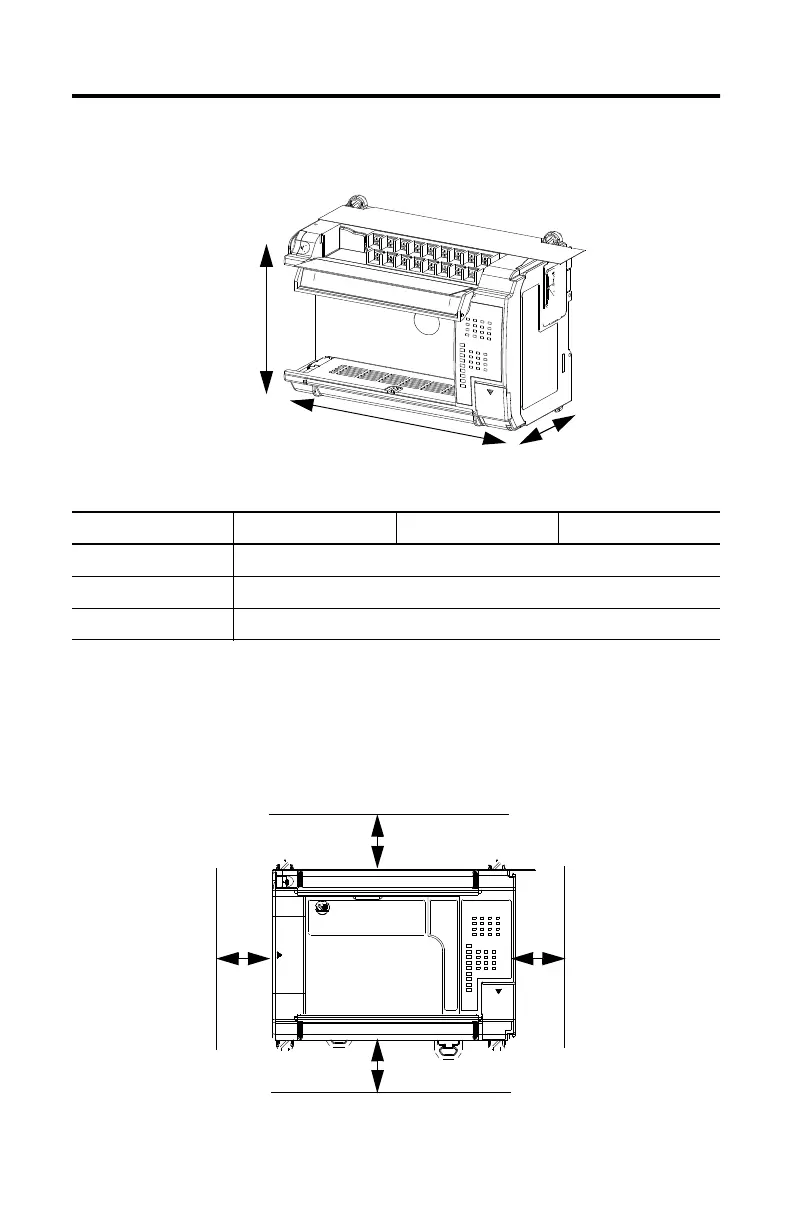

Mounting Dimensions
Controller Spacing
The base unit is designed to be mounted horizontally, with the Compact™
expansion I/O extending to the right of the base unit. Allow 50 mm (2 in.) of
space on all sides for adequate ventilation, as shown below.
Table 5 Dimensions
Dimension 1764-24AWA 1764-24BWA 1764-28BXB
Height (A) 138 mm (5.43 in.)
Width (B) 168 mm (6.62 in.)
Depth (C) 87 mm (3.43 in.)
A
C
B
Top
Bottom
Side
Side
Allen-Bradley Parts

Allen-Bradley micrologix 1500 Specifications

General

Processor Type	16-bit
Programming Language	Ladder Logic
Mounting	DIN rail or panel mount
Programming Software	RSLogix 500
Communication Ports	RS-232
Power Supply	24V DC
Operating Temperature	0°C to 55°C (32°F to 131°F)
Controller Type	Programmable Logic Controller (PLC)
