1-6 Overview
Keypad or Keypad & Touch

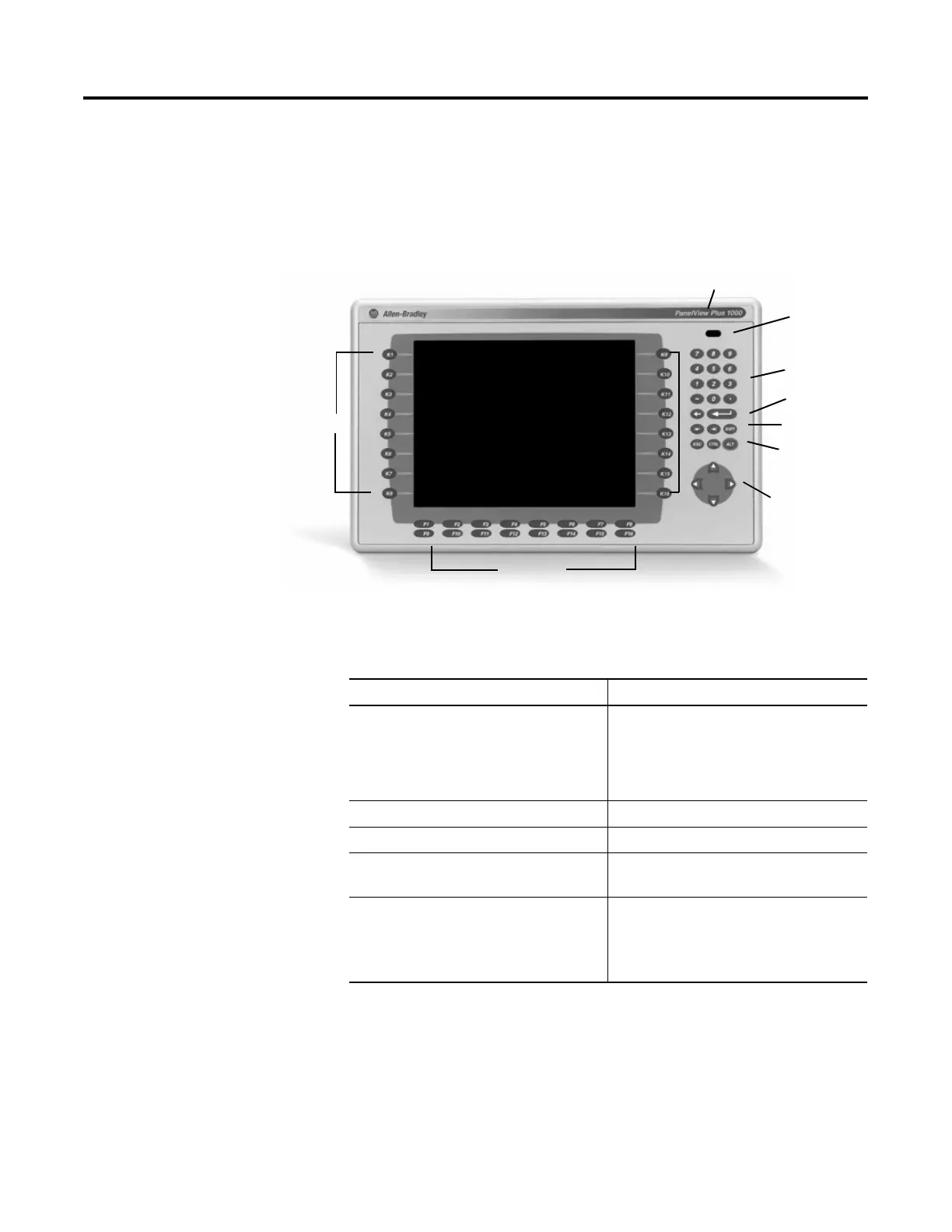

The following illustration shows the features of the 1000 keypad or
keypad & touch display. All of the displays are similar except for size
and the number of function keys available.
All of the Kxx and Fxx function keys on the keypad terminals are
programmable.
Backspace
and Enter Key
IrDA Port
Navigation Keys
Numeric Keypa
Function Keys
Allen-Bradley Label
Tab, Shift Keys
Esc, Ctl, Alt Keys
Function Keys
Feature Description
Function Keys
700 (F1-F10, K1-K12)
1000 (F1-F16, K1-K16)
1250 (F1-F20, K1-K20)
1500 (F1-F20, K1-K20)
Programmable keys that initiate functions
on terminal display. These keys may have
custom legends.
Label Allen-Bradley or customer applied label.
IrDA Port For data or application transfers.
Numeric Keypad 0-9, ., -, Backspace, Enter, Tab, Shift, Esc,
Ctrl, Alt keys
Navigation Keys Use the arrow keys to move cursor in lists,
select objects,
Alt+arrow key activates home, end, page
up, page down functions.
