Allen-Bradley PanelView Plus 600 User Manual

Rockwell Automation Publication 2711P-TD001D-EN-P - February 2011
30 Wiring and Grounding Guidelines for PanelView Plus Terminals
Isolated DC PanelView Plus Terminals
The isolated DC PanelView Plus terminals can be used in a system with other
DC equipment, powered by a single DC power source.

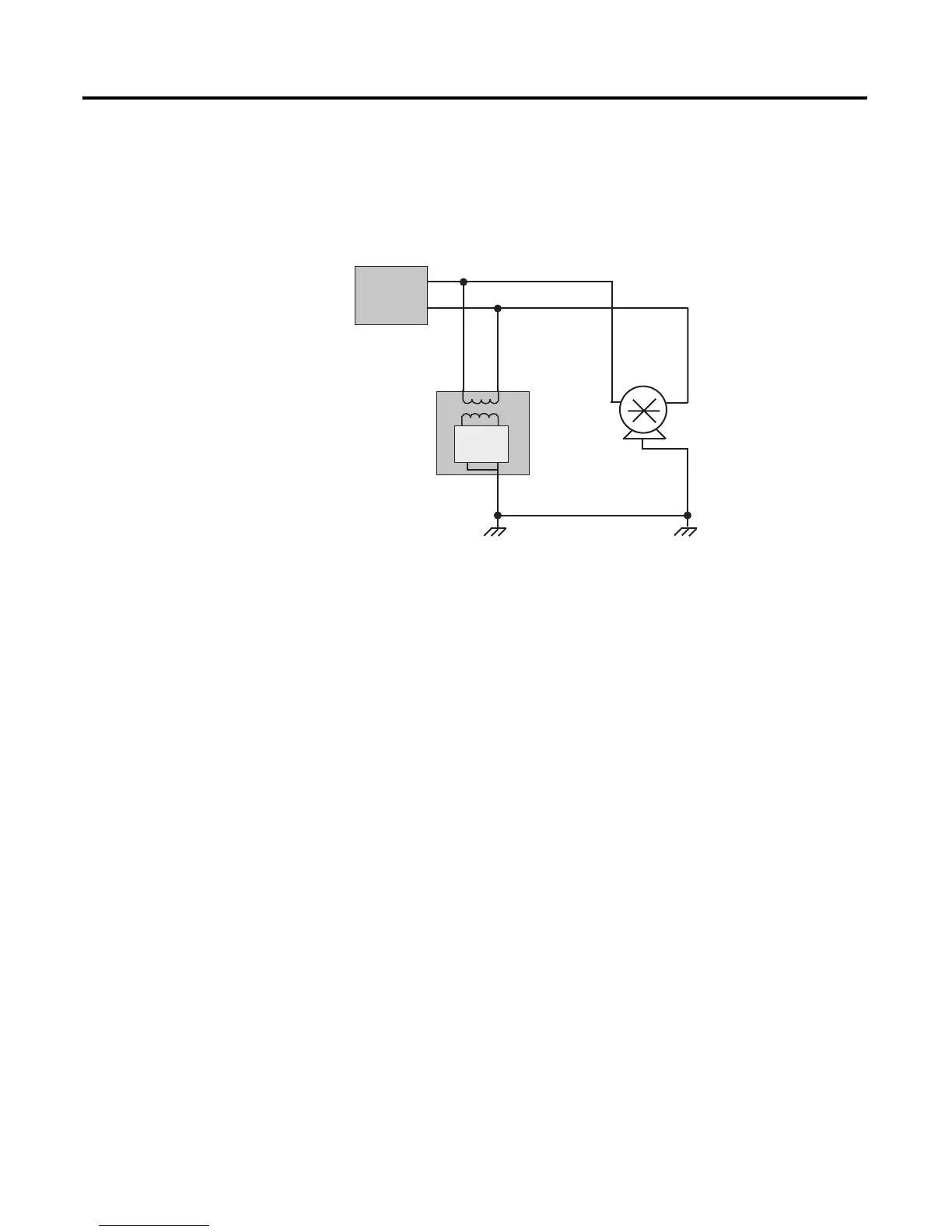

Single Power Supply with Isolated DC Terminal
AC/DC Power Supply
Circuitry
DC+ DC-
+24V DC
Power
Common
DC Motor,
Solenoid
Isolated
PanelView Plus Terminal
Common Tied
to Earth

Allen-Bradley PanelView Plus 600 Specifications

General

Resolution	320 x 240 pixels
Touchscreen	Analog resistive
Backlight	LED
Operating System	Windows CE
Power Supply	24V DC
Communication Ports	Ethernet, RS-232
Memory	64 MB RAM
Operating Temperature	0°C to 50°C
Enclosure Rating	NEMA 4X
Processor	XScale processor
