Remove and Install the
Power Terminal Block
PanelView Plus terminals are shipped with the power terminal block installed.
You can remove the terminal block for ease of installation, wiring, and
maintenance.
PanelView Plus 400 and 600 Terminals
Follow these steps to remove the terminal block in any PanelView Plus 400 and
600 terminal, including the PanelView Plus Compact 400 and 600 terminals.

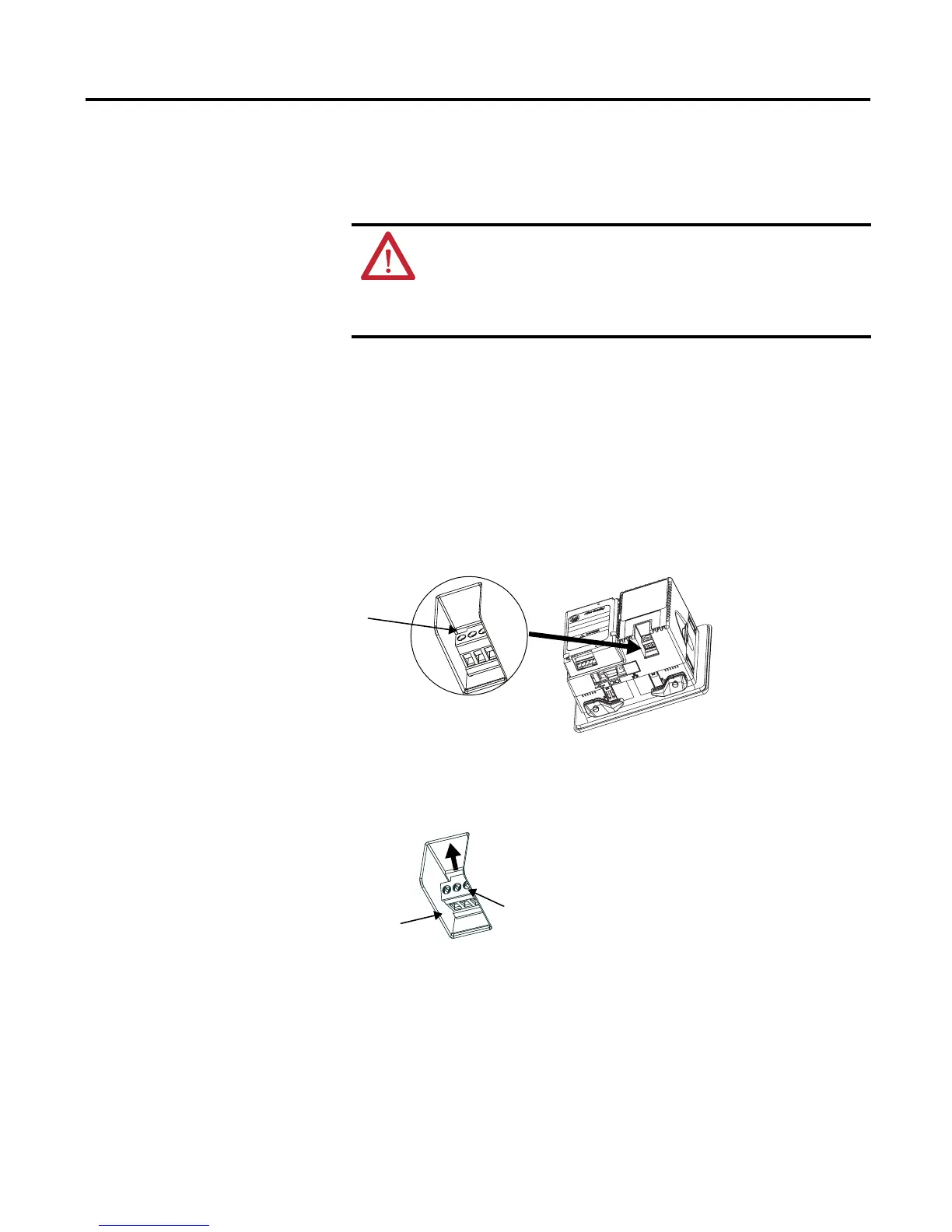

1. Insert the tip of a small screwdriver into the terminal block access slot.
2. Gently pry the terminal block away from the terminal to release the
locking mechanism.
Follow these steps to replace the terminal block.
1. Press the terminal block base in first with the block leaning outward.
2. Gently push the top of the terminal block back to the vertical position to
snap in the locking tab.
WARNING: Explosion Hazard
Do not disconnect equipment unless power has been switched off and the
area is known to be nonhazardous.
Disconnect all power before installing or replacing components. Failure to
disconnect power may result in electrical shock or damage to the device.
