5-14 Installing and Replacing Components

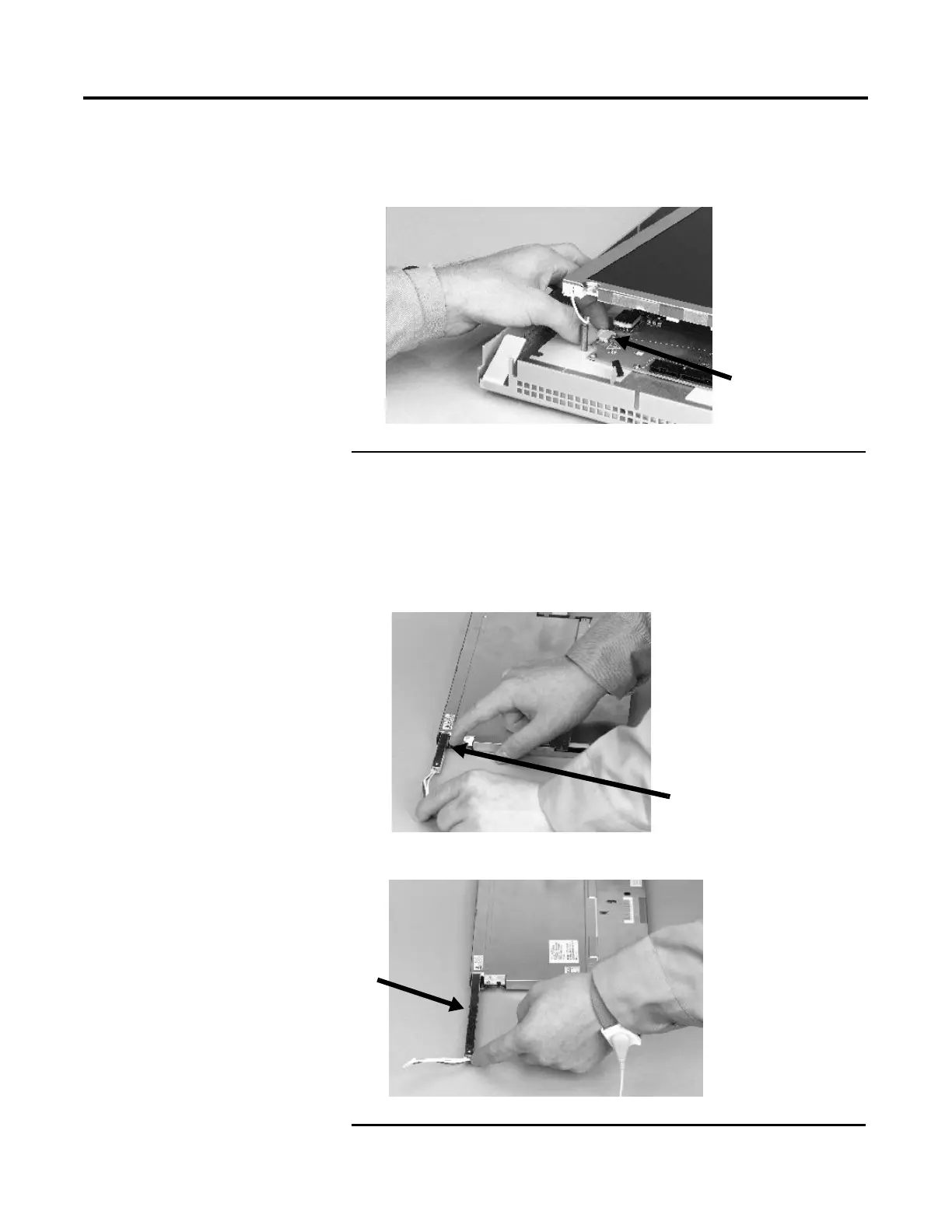

5. Detach the Backlight Connector from the circuit board.
The 1250 has two Backlight Connectors.
For PanelView Plus 700/1000
Work on a clean, flat, stable surface to protect the display from
debris, scratches and damage.
6. Press the retaining tab that secures the backlight and then pull
out the backlight.
7. Insert the new backlight.
Backlight
Connector
Backlight
Retaining Tab
Backlight
