English-7

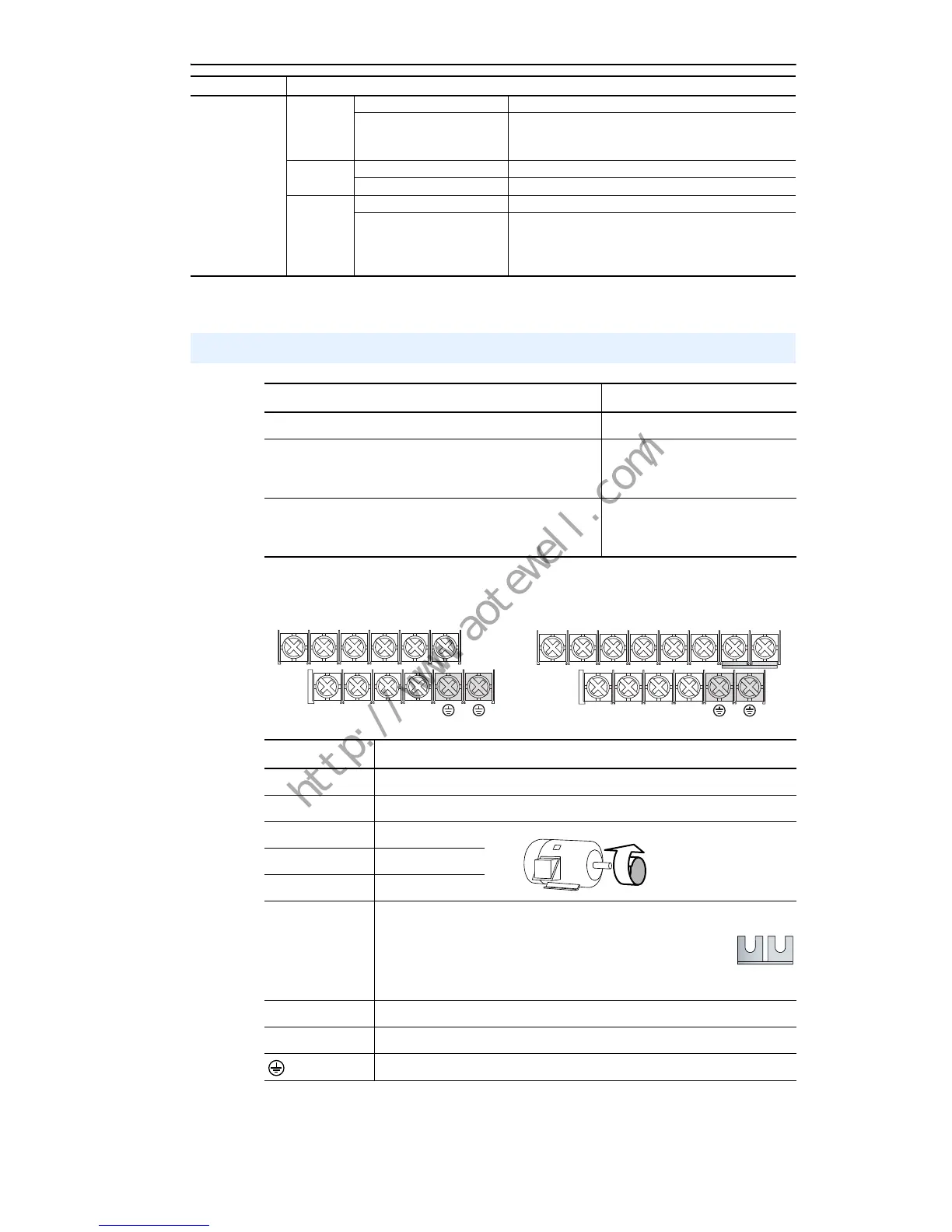

Power Terminal Block
Control Outputs Relay: Quantity: (1) Programmable Form C
Specification
Resistive Rating:
Inductive Rating:
3.0A at 30V DC, 3.0A at 125V, 3.0A at 240V AC
0.5A at 30V DC, 0.5A at 125V, 0.5A at 240V AC
Opto: Quantity:
(2) Programmable
Specification: 30V DC, 50mA Non-inductive
Analog: Quantity: (1) Non-Isolated 0-10V or 4-20mA
Specification
Resolution:
0 to 10V DC Analog:
4-20mA Analog:
10-bit
1k ohm minimum
525 ohm maximum
Category Specification
Power Wiring
Power Wire Rating Recommended Copper Wire
Unshielded 600V, 75°C (167°F) THHN/THWN 15 Mils insulated, dry location
Shielded 600V, 75°C or 90°C (167°F or 194°F) RHH/
RHW-2
Anixter OLF-7xxxxx,
Belden 29501-29507 or
equivalent
Shielded Tray rated 600V, 75°C or 90°C (167°F or
194°F) RHH/RHW-2
Anixter 7V-7xxxx-3G
Shawflex 2ACD/3ACD or
equivalent
Terminal
(1)
Description
R/L1, S/L2 1-Phase Input
(2)
R/L1, S/L2, T/L3 3-Phase Input
U/T1 To Motor U/T1
=
Switch any two motor
leads to change
forward direction.
V/T2 To Motor V/T2
W/T3 To Motor W/T3
P2, P1
DC Bus Inductor Connection (C Frame drives only.)
The C Frame drive is shipped with a jumper between
Terminals P2 and P1. Remove this jumper only when a DC
Bus Inductor will be connected. Drive will not power up
without a jumper or inductor connected.
DC+, DC- DC Bus Connection
BR+, BR- Dynamic Brake Resistor Connection
Safety Ground - PE
(1)
Important: Terminal screws may become loose during shipment. Ensure that all
terminal screws are tightened to the recommended torque before applying power to
the drive.
(2)
Single-phase operation requires a 65% derate of drive rated current.
