5. Ramp To Hold is selected by setting [Stop Select x]. The drive will
ramp the frequency to zero based on the deceleration time programmed
into [Decel Time 1/2]. Once the drive reaches zero hertz, a DC Injection
holding current is applied to the motor. The level of current is set in [DC
Brake Level].
In this mode, the braking is applied Continuously. [DC Hold Time] has
no effect in this mode. Braking will continue until one of the following
events occur:
– The Enable Input is opened, or . . .
– A Start command is re-issued.
Again, caution must be exercised to not overheat the motor by applying
excess voltage and/or for excess time, particularly if the motor is not
rotating.

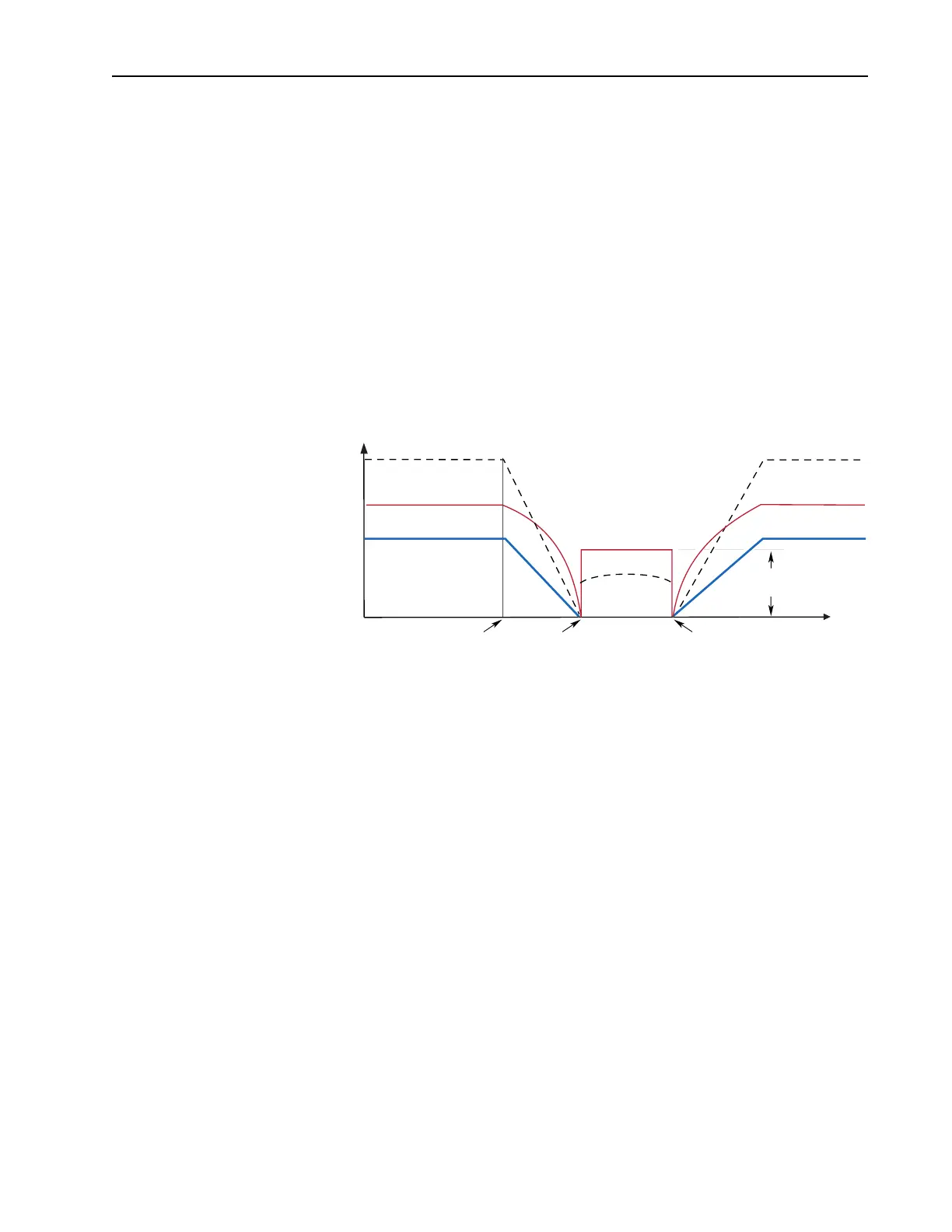

DC
Hold Level
Time
Output Voltage
Output Voltage
Output Current
Output Current
Motor Speed
Output Voltage
Output Current
Motor Speed
Re-issuing a
Start Command
Stop
Command
Zero
Command
Speed
