Rockwell Automation Publication 750-PC100A-EN-P - December 2016
PowerFlex 750-Series Products with TotalFORCE Control 21
Frames 8…12 Bus Supplies
PE
7
6
5
4
8
4
1
2
3
4
5
6
PEPE
PE
6
7
3
2

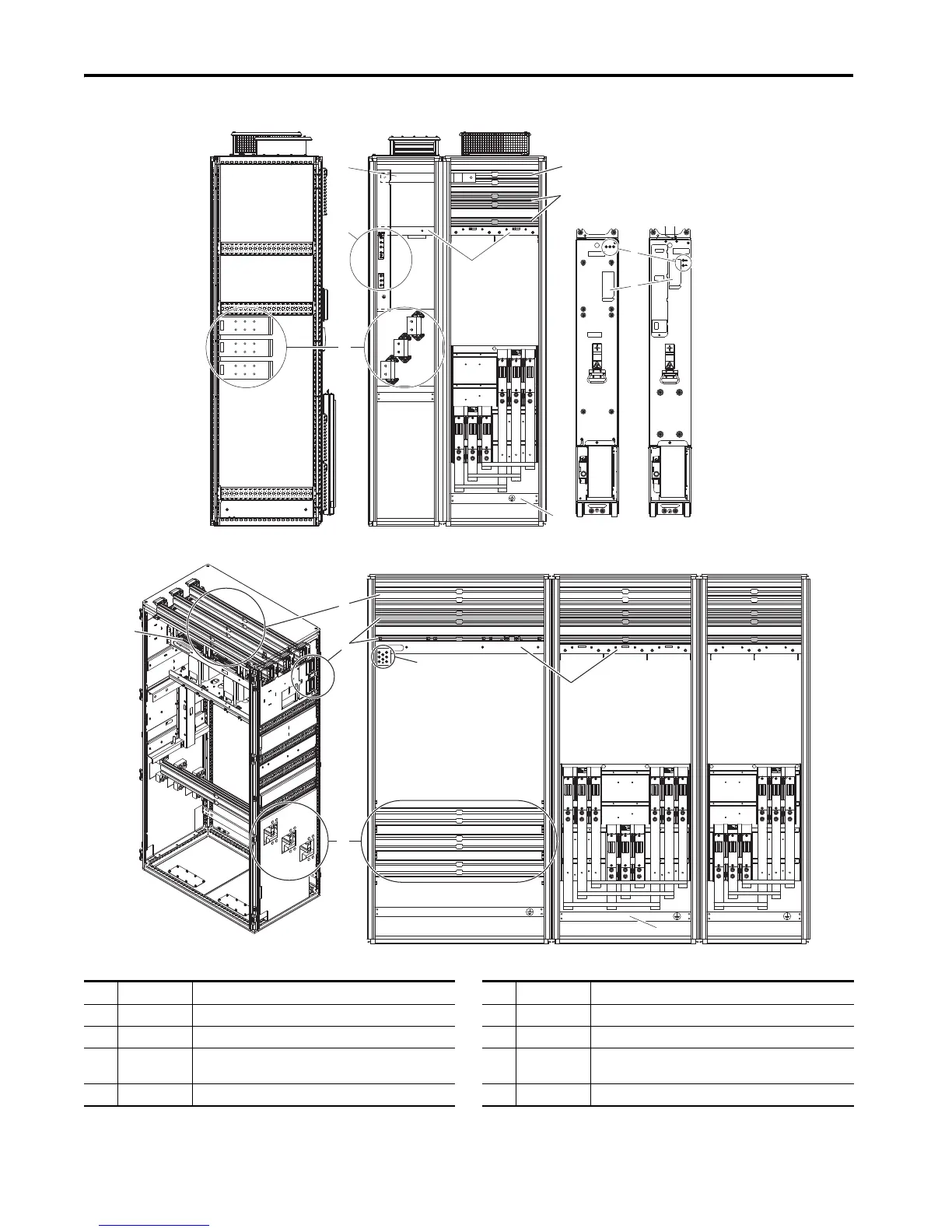

Frame 8 bus supply shown.
Frame 10 bus supply shown. Layout is typical for Frames 10 through 12.
Item Name Description Item Name Description
1 AC Link Connects AC circuit breaker to LCL fuse assembly 5 Power Bus R/L1, S/L2, T/L3 AC line input power connections
2 AC Bus AC power supply 6 Control Bus 120/240V and 24V AC control power supply connections
3 DC Bus DC+, DC- 7 PE Grounding Bar Terminating point to chassis ground for incoming AC line and motor shield.
PE ground bar clamps, kit number SK-RM-GRNDCLMP-nn, are available.
4 Testpoints DC+, DC- and R/L1, S/L2, T/L3 voltage testpoint sockets 8 Nameplate Power module and LCL filter module nameplate locations
