28 PowerFlex 750-Series Products with TotalFORCE Control
Rockwell Automation Publication 750-PC100A-EN-P - December 2016

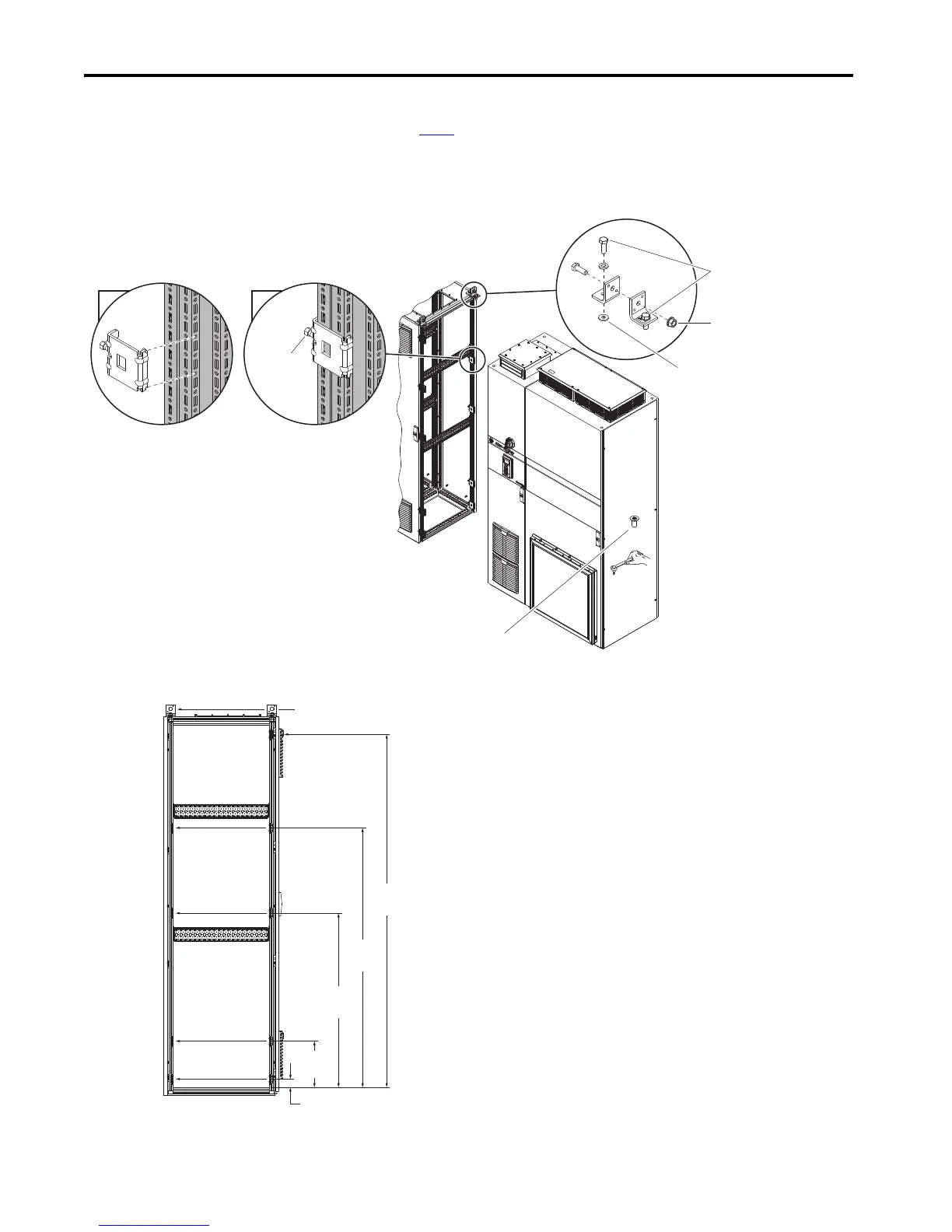

Align and Join Cabinet Sections
See the PowerFlex 750-Series Products with TotalFORCE Control Installation Instructions, publication 750-IN100, for detailed instructions on how to prepare the cabinet sections to be joined.
Procedures and precautions concerning the removal and proper handling of components must be reviewed and understood.
Nine clamps and two bracket sets are provided to join cabinets.
• Two bracket sets install on the top exterior of the cabinets.
• Nine camps install on the interior framework.
• Install a single interior clamp in the top position on the door side of the cabinet.
Install the side sheet that was removed from the input bay on the last power bay in the installation.
Bracket Spacing
Join cabinets with eight clamps and two bracket sets.
20.0 N•m
(177 lb•in)
42.4 N•m
(375 lb•in)
9.0 N•m
(79 lb•in)
M6
T20
4.8 N•m
(42 lb•in)
21
Side sheet from input bay.
Clamp
Bracket Set
Paint-piercing rubber washer.
1368 mm
(53.9 in.)
918 mm
(36.1 in.)
1869 mm
(73.6 in.)
243 mm
(9.6 in.)
43 mm
(1.7 in.)
Top Bracket Sets
Clamps
Install top clamp on door
side of the cabinet only.
