Allen-Bradley PowerFlex 755TL User Manual

Rockwell Automation Publication 750COM-UM009A-EN-P - May 2017 93
Using the I/O Chapter 4

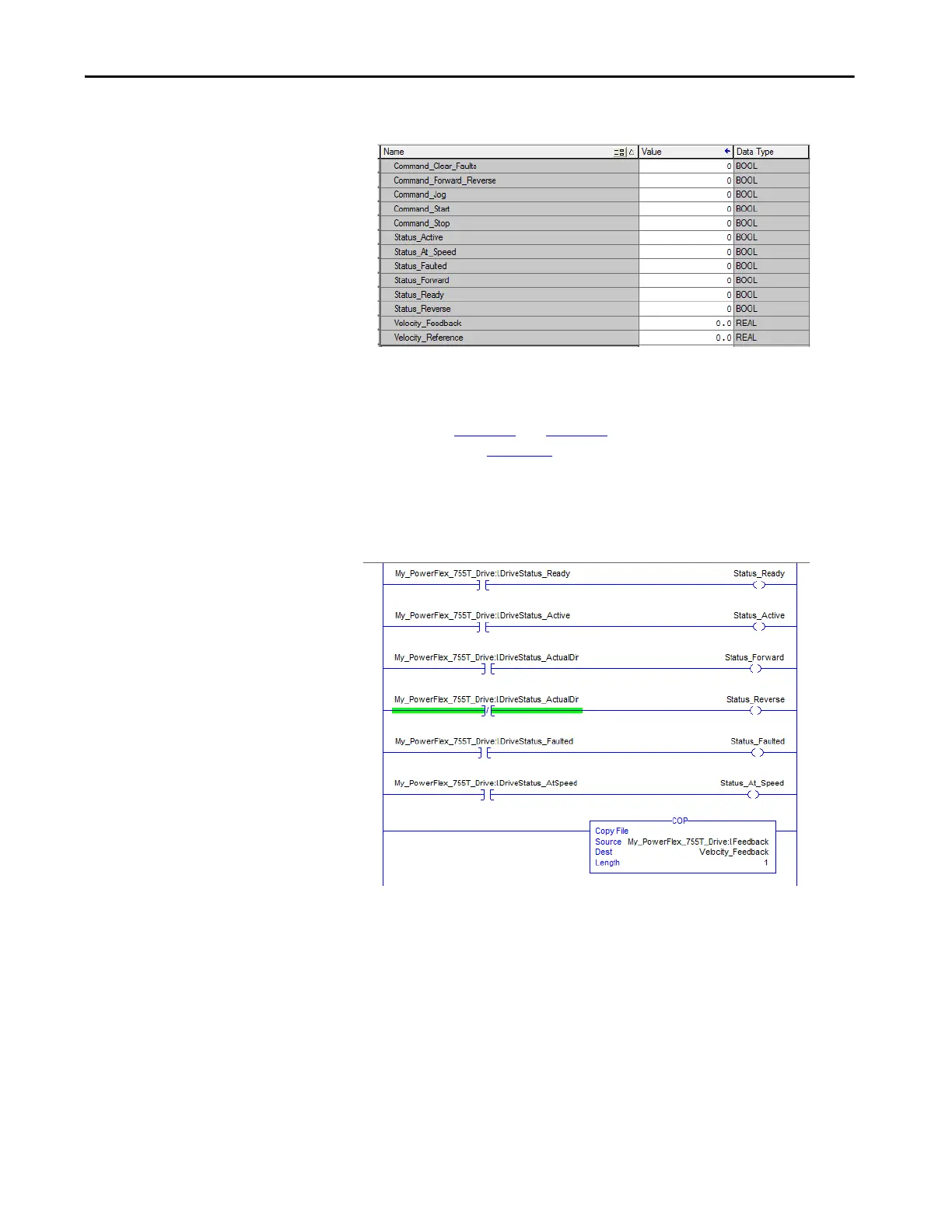

Figure 14 - ControlLogix Program Tags for Drive Add-on Profile Ladder Logic Program Example
An example ladder logic program that uses the automatically created
descriptive Controller tags and passes their data to the user-defined Program
tags is shown in Figure 15
and Figure 16. The name that is assigned when
configuring the I/O (Chapter 3
) determines the prefix for the drive Controller
tags.
Figure 15 - ControlLogix Controller Example Ladder Logic Program Using a Drive Add-on Profile
for Logic Status/Feedback
