Appendix A Enclosure Information

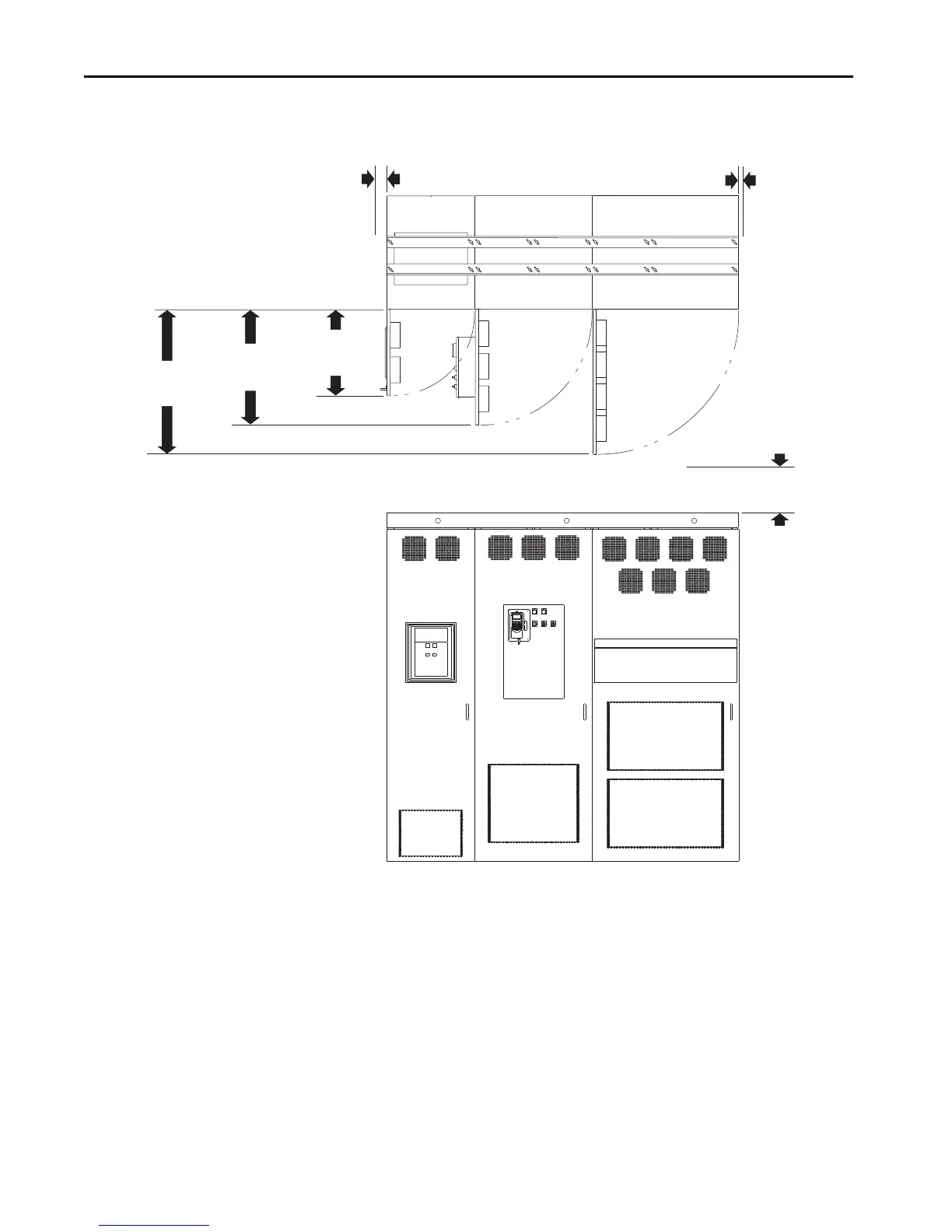

Figure 29 - Frame 13 in IP20 2500 MCC Style Enclosure
73 mm
(2.9 in.)
27 mm
(1.0 in.)
591.5 mm
(23 in.)
790.2 mm
(31 in.)
990.2 mm
(39 in.)
200 mm
(7.87 in.)
Top View
Front View
Clearance to Wall
Clearance to Wall
Height Clearance
Door Swing Clearance
Door Swing Clearance
Door Swing Clearance
