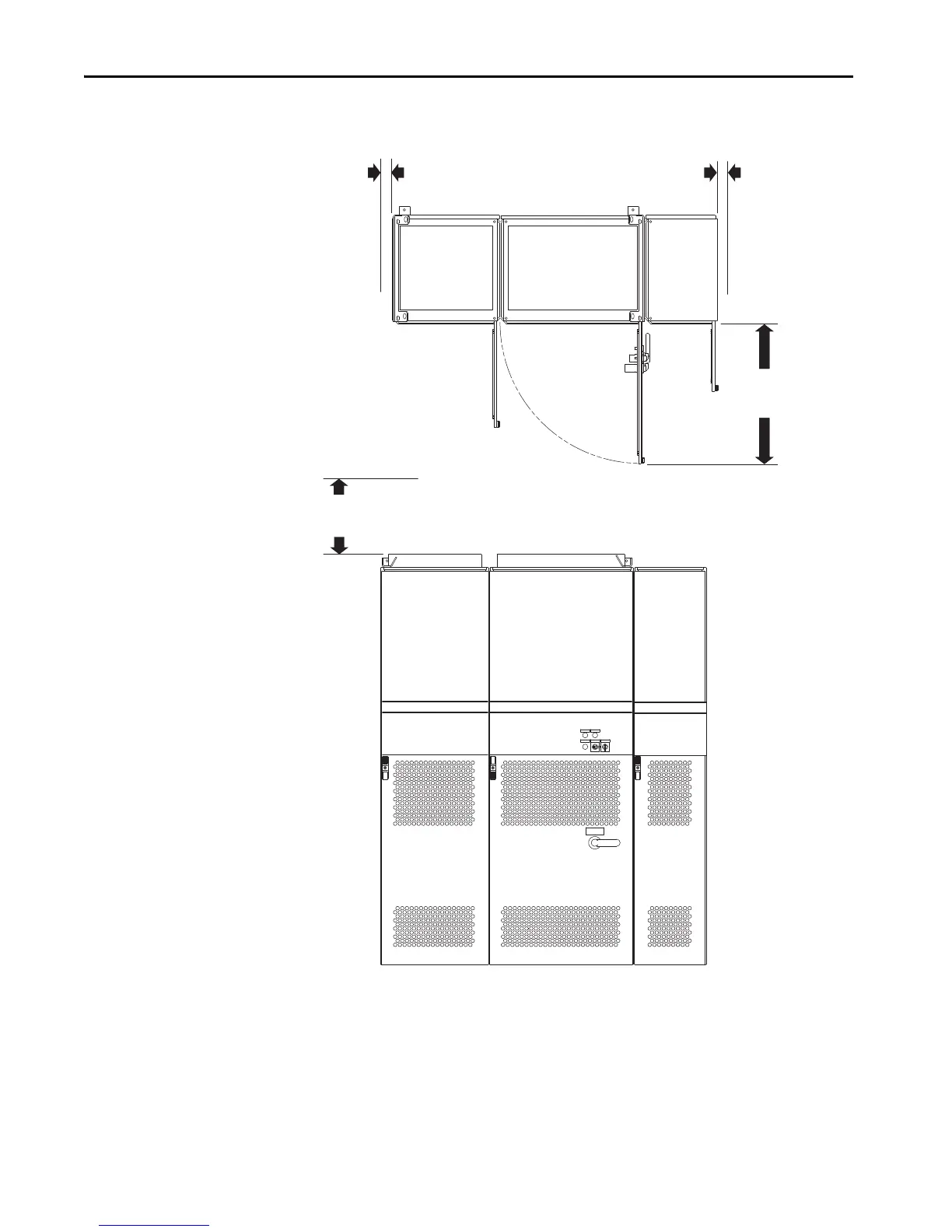

Figure 31 - Frame 13 in IP21 Rittal Enclosure
200 mm
(7.87 in.)
50 mm
(2.0 in.)
50 mm
(2.0 in.)
800 mm
(31.5 in.)
Top View
Clearance to Wall
Clearance to Wall
Height Clearance
Door Swing Clearance
Front View
