138 Rockwell Automation Publication 750-IN100B-EN-P - July 2017
Chapter 6 I/O Wiring

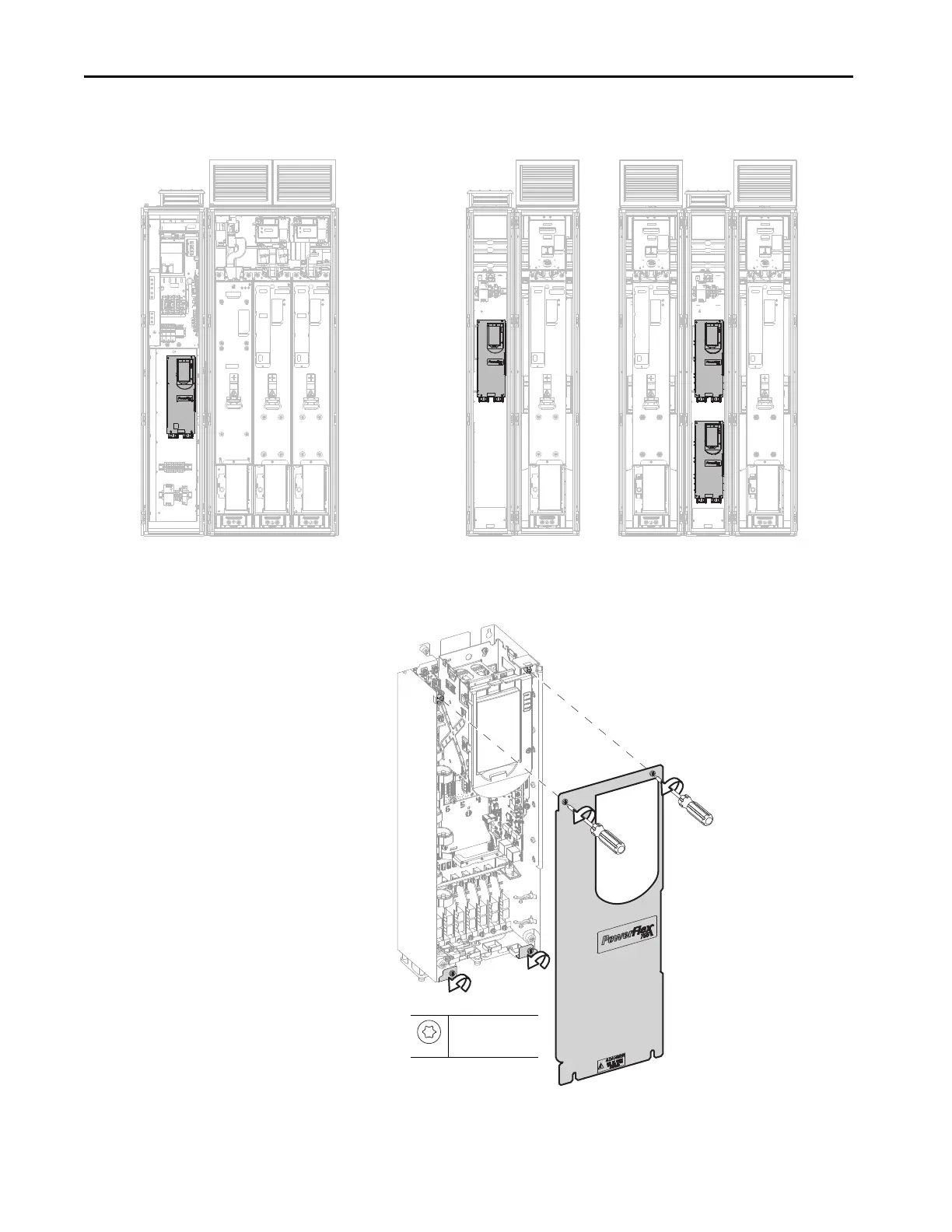

Access Control Pod
The control pod is located in the input bay of 755TL and 755TR drives and
the control bay of a common bus inverter, if equipped.
1. Remove the control pod front cover.
– Remove top screws.
– Loosen bottom screws.
Input Bay
755TL and 755TR Drives and 755TM Bus Supplies
Control Bay
755TM Common Bus Inverters
M4 x 8 mm
T25
2.6 N•m (23 lb•in)
To Next Page
