Rockwell Automation Publication 750-IN100B-EN-P - July 2017 51
Prepare for Installation Chapter 3

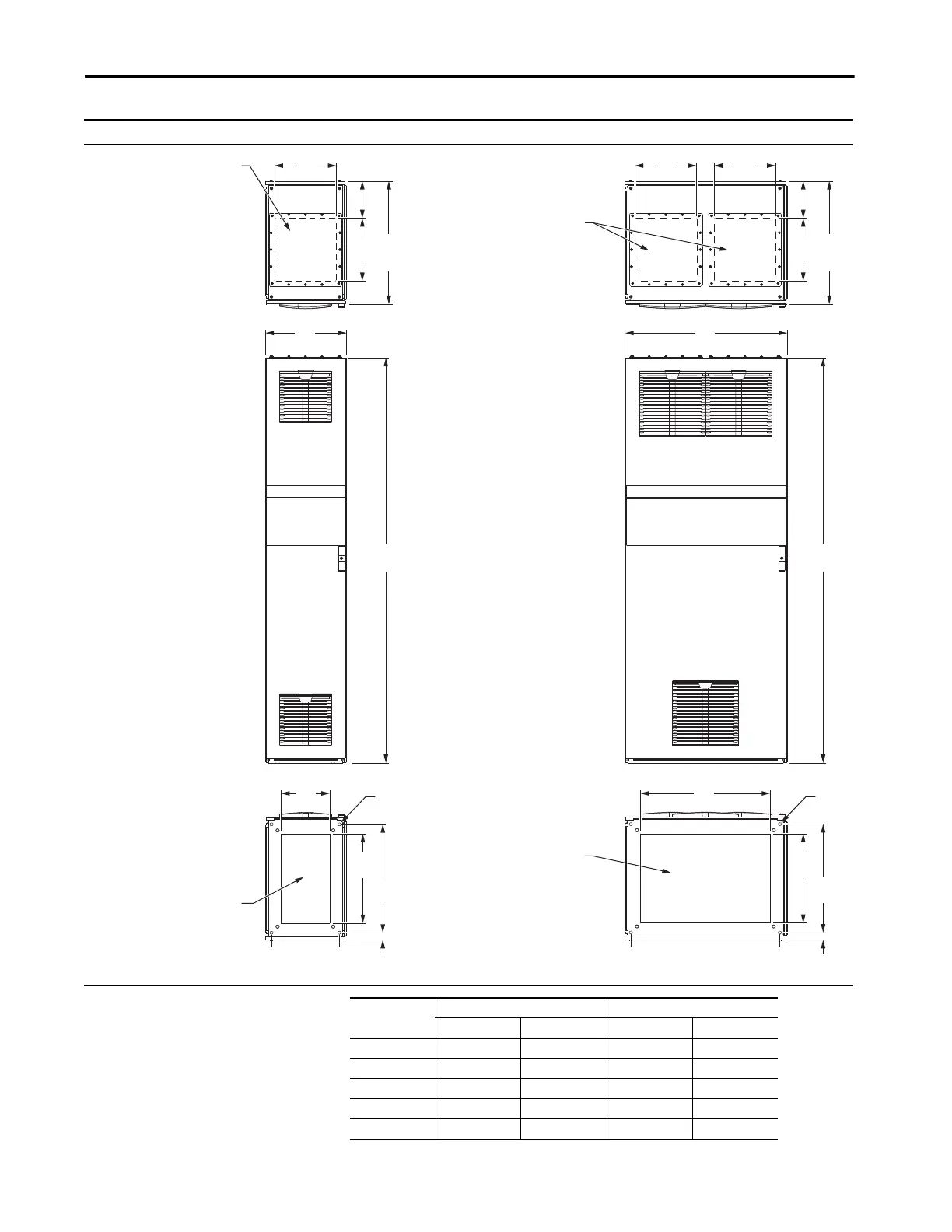

Optional Entry Wire Bays Top, Front, and Bottom Views - Dimensions are mm (in.)
305
(12.0)
183
(7.2)
310
(12.2)
AB A
B
240
(9.4)
305
(12.0)
305
(12.0)
183
(7.2)
310
(12.2)
440
(17.3)
535
(21.1)
440
(17.3)
535
(21.1)
640
(25.2)
800
(31.5)
400
(15.7)
36
(1.4)
2132
(83.9)
676
(26.6)
36
(1.4)
2132
(83.9)
676
(26.6)
Power Cables - Top Entry
Power Cables - Top Entry
Power Cables - Bottom Entry
Power Cables - Bottom Entry
Frame
Entry Bay – 400 (15.7) Wide Entry Bay – 800 (31) Wide
ABAB
8––––
9––––
10 400 (15.7) 65 (2.6)
11 465 (18.3) 65 (2.6)
12 465 (18.3) 65 (2.6)
