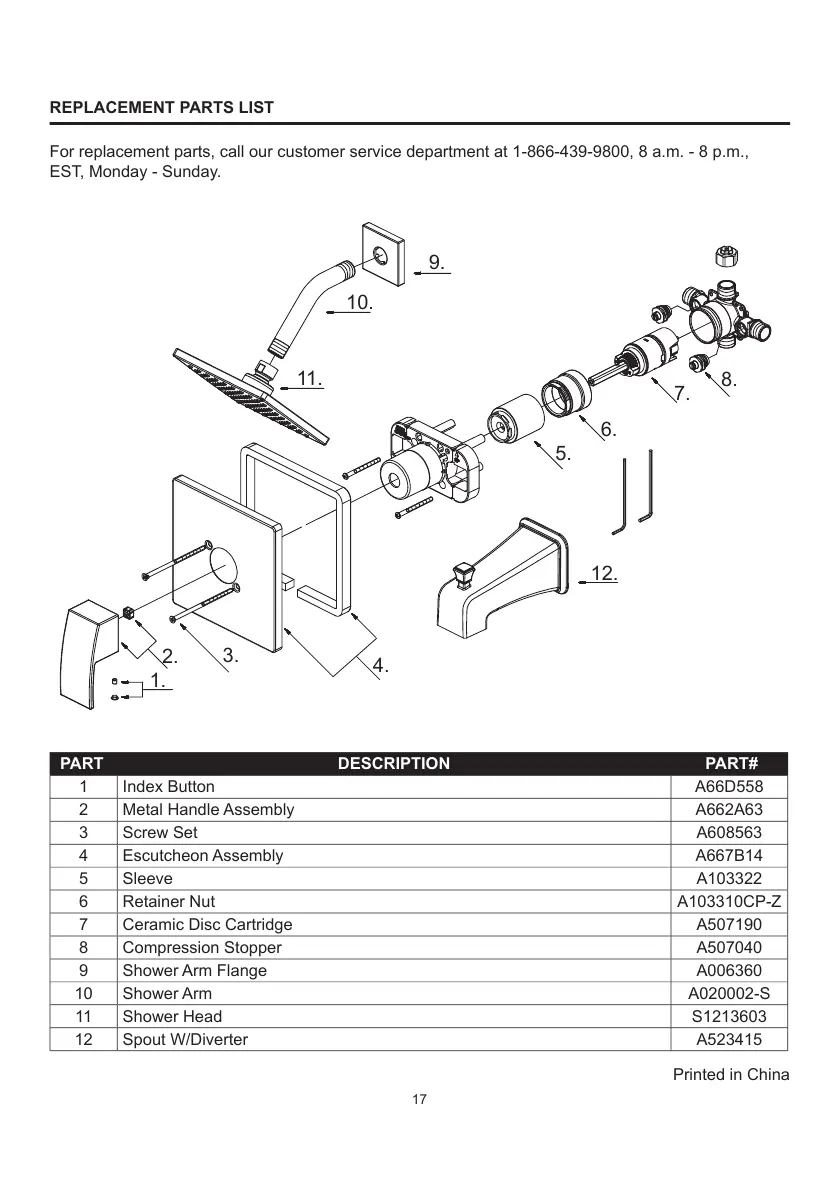

REPLACEMENT PARTS LIST
For replacement parts, call our customer service department at 1-866-439-9800, 8 a.m. - 8 p.m.,
EST, Monday - Sunday.
PART DESCRIPTION PART#
1 Index Button A66D558
2 Metal Handle Assembly A662A63
3 Screw Set A608563
4 Escutcheon Assembly A667B14
5 Sleeve A103322
6 Retainer Nut A103310CP-Z
7 Ceramic Disc Cartridge A507190
8 Compression Stopper A507040
9 Shower Arm Flange A006360
10 Shower Arm A020002-S
11 Shower Head S1213603
12 Spout W/Diverter A523415
Printed in China
