4

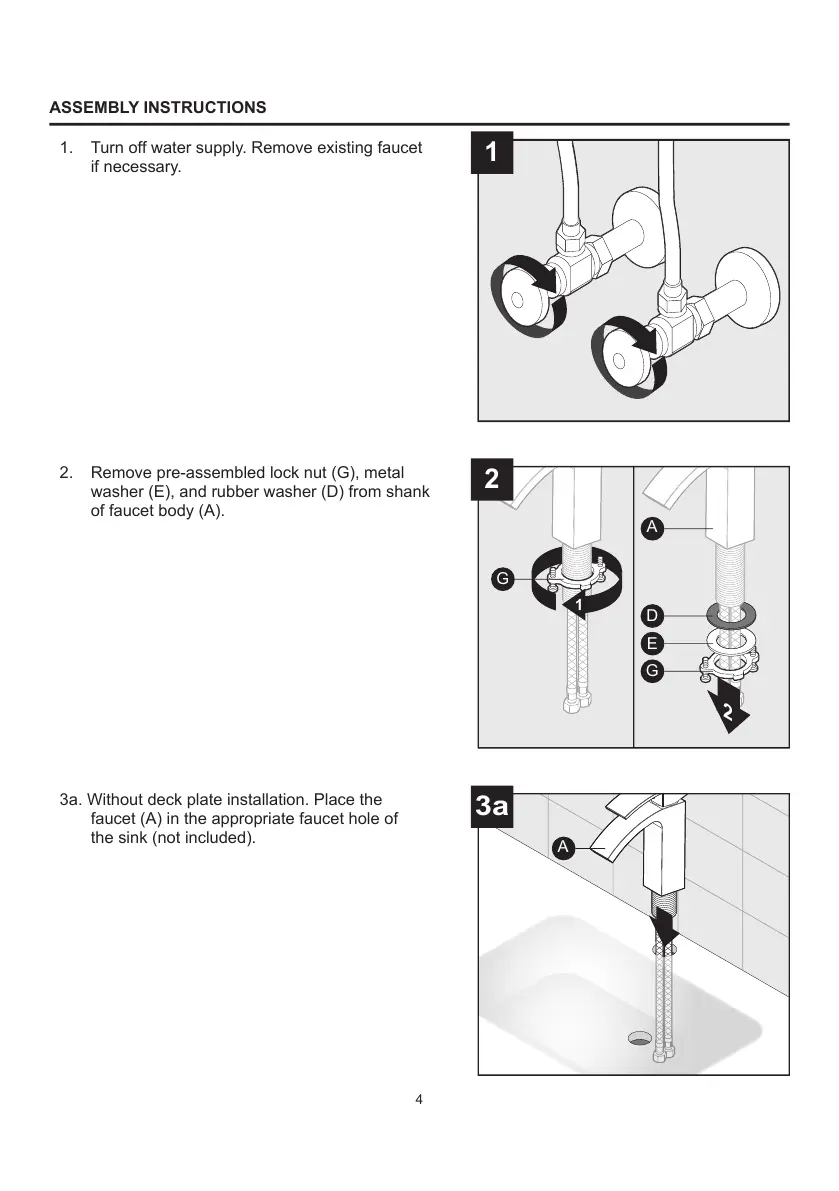

ASSEMBLY INSTRUCTIONS
2. Remove pre-assembled lock nut (G), metal
washer (E), and rubber washer (D) from shank
of faucet body (A).
3a. Without deck plate installation. Place the
faucet (A) in the appropriate faucet hole of
the sink (not included).
1. Turnoffwatersupply.Removeexistingfaucet
if necessary.
2
1
1
2
3a
G
D
E
A
G
A
