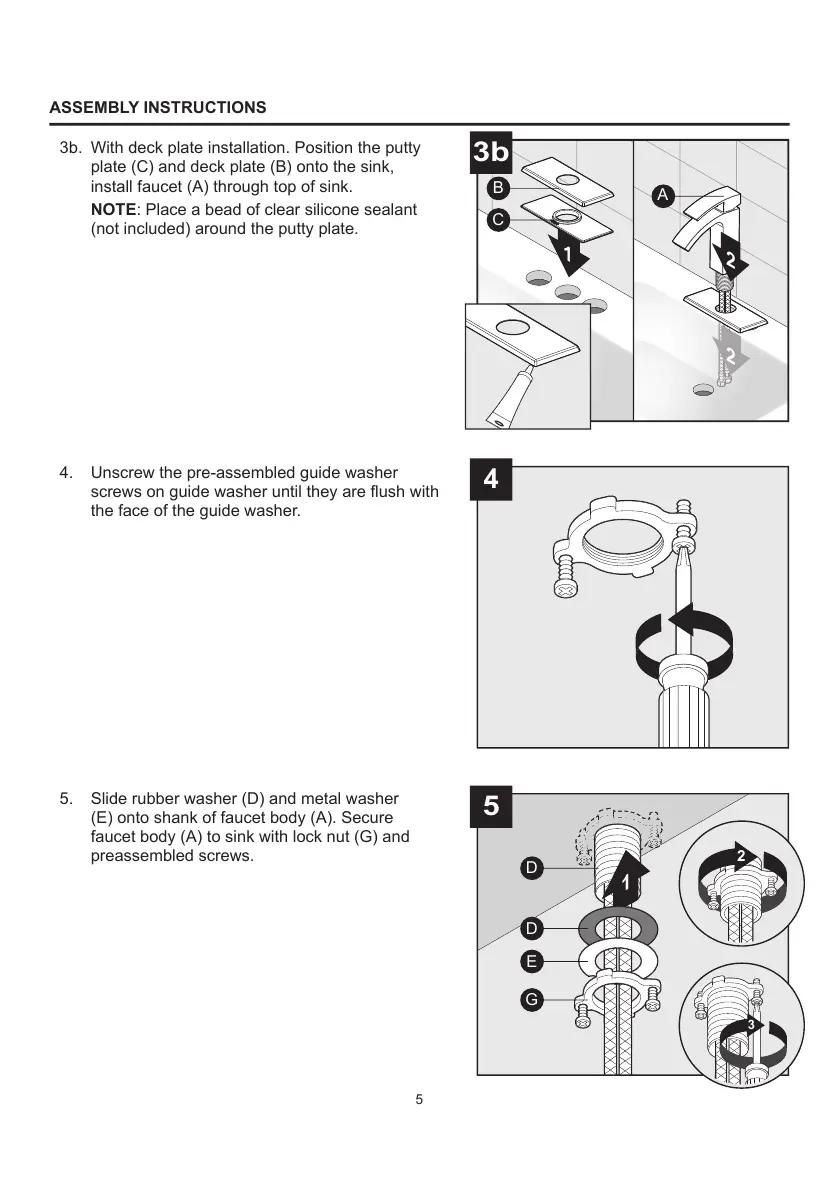

ASSEMBLY INSTRUCTIONS
5. Slide rubber washer (D) and metal washer
(E) onto shank of faucet body (A). Secure
faucet body (A) to sink with lock nut (G) and
preassembled screws.
4. Unscrew the pre-assembled guide washer
screws on guide washer until they are flush with
the face of the guide washer.
3b. With deck plate installation. Position the putty
plate (C) and deck plate (B) onto the sink,
install faucet (A) through top of sink.
NOTE: Place a bead of clear silicone sealant
(not included) around the putty plate.
1
2
2
1
4
5
3b
B
C
A
D
D
E
G
To Next Page
