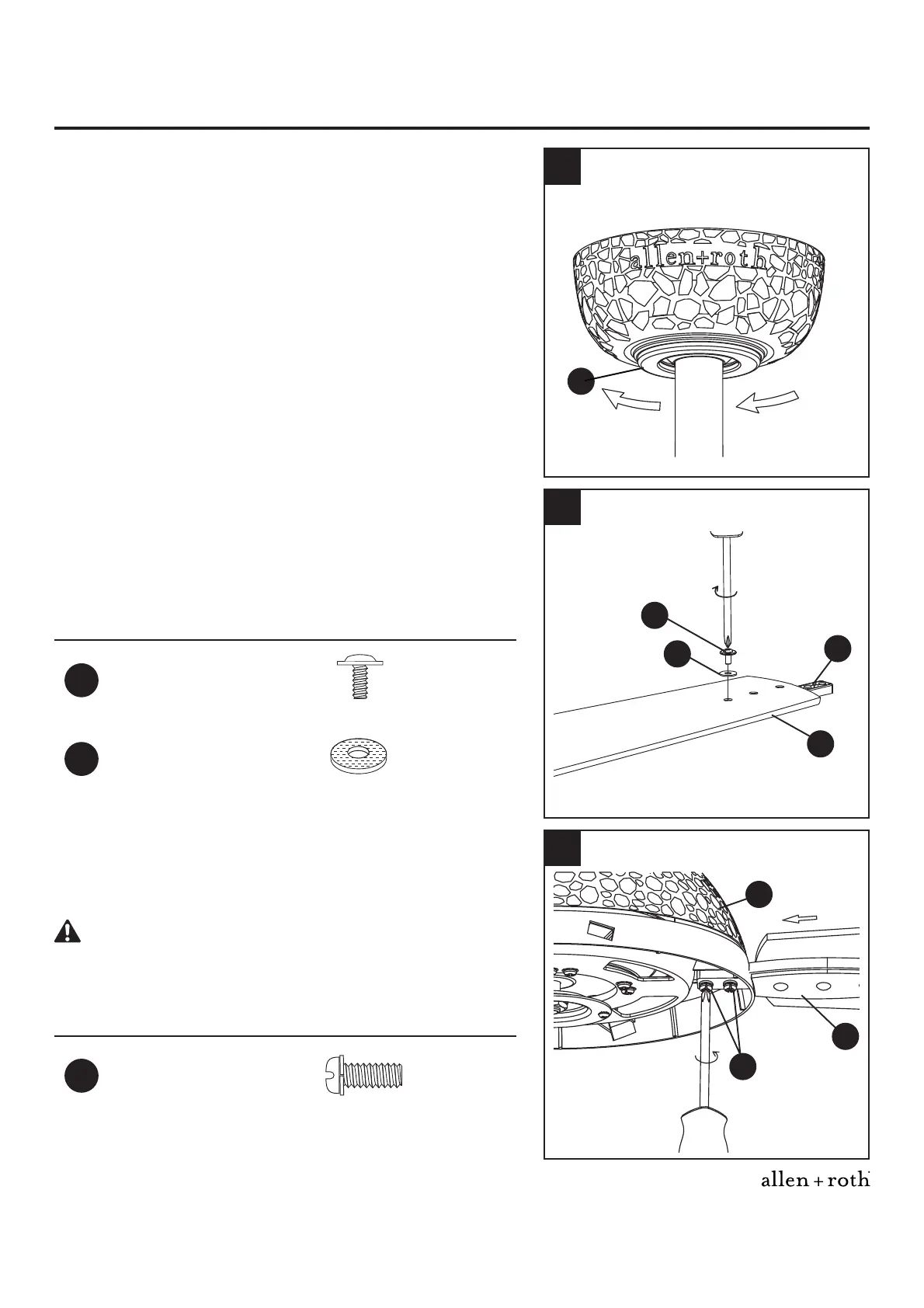

FINAL ASSEMBLY INSTRUCTIONS
2. Securely attach and tighten the canopy screw cover
(E) over the shoulder screws (KK) in the hanger
bracket (B), utilizing the keyslot twist-lock feature.
2
E
3. Position the blades (K) over the blade arms (J) with
threaded posts showing. Make sure the bottom edge
of the blades (K) are fully seated against the blade
arms (J). Install and tighten the washer-head screws
(BB) with fi ber washers (CC) to secure the blades (K)
to the blade arms (J).
Hardware Used
BB
Washer-Head
Screw
x 15
CC
Fiber Washer x 15
3
K
BB
CC
J
4. Attach the blade arms (J) to the hub of the motor (A)
using screws (AA).
Note: Periodically check hardware and resecure if
necessary.
WARNING: To reduce the risk of personal injury, do
not bend the blade arms when installing, balancing the
blades, or cleaning the fan. Do not insert foreign objects in
between the rotating blades.
Hardware Used
AA
Screw x 10
4
J
A
4
AA
