8
Lowes.com/allenandroth

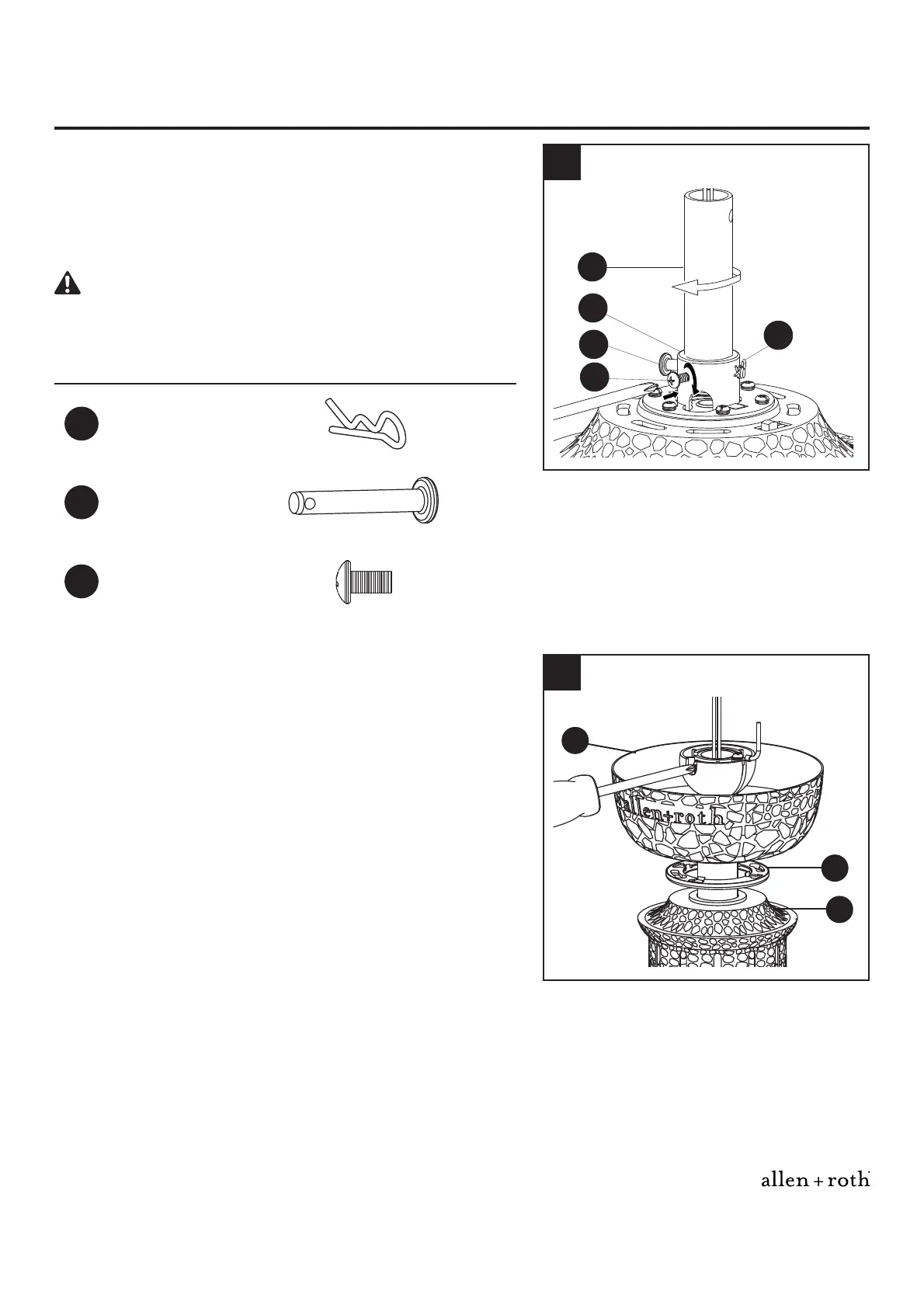

INITIAL ASSEMBLY INSTRUCTIONS
4. Thread the downrod (C) into the downrod support of
the motor (A). Align the holes in the downrod support
of the motor (A) with the holes in the downrod (C)
e-install the downrod pin (II). Secure the downrod pin
(II) with the downrod clip (HH). Tighten the downrod
support set screws (JJ) back into the motor (A).
WARNING: It is critical the downrod pin (II) is properly
installed and the motor housing set screws (JJ) are
securely tightened. Failure to do so could result in the fan
falling.
Hardware Used
HH
Downrod Clip x 1
II
Downrod Pin x 1
JJ
Downrod Support
Set Screw
x 2
4
HH
C
A
II
JJ
5. Route the wires through the motor coupling cover (F),
canopy screw cover (E) and ceiling canopy (D).
5
D
E
F
To Next Page
