Trowel Gearbox
3.2 Trowel Gearbox Maintenance
Check Oil levels in the gearbox daily (every 8 hours) Add oil if oil level is below the check
sight glass.
1) To add oil tilt gearbox to the side and remove the fill plug. Add oil through hole
opening. Replace fill plug after proper level has been achieved. Fill so that there is
oil 1/2 way in the sight glass. Use Allen Oil only.
2) Each Gearbox has a grease fitting on top cover that must be greased (2 SHOTS
ONLY) every 300 operating hours. Use only Mobilith SHC 220 Extended
pressure grease.

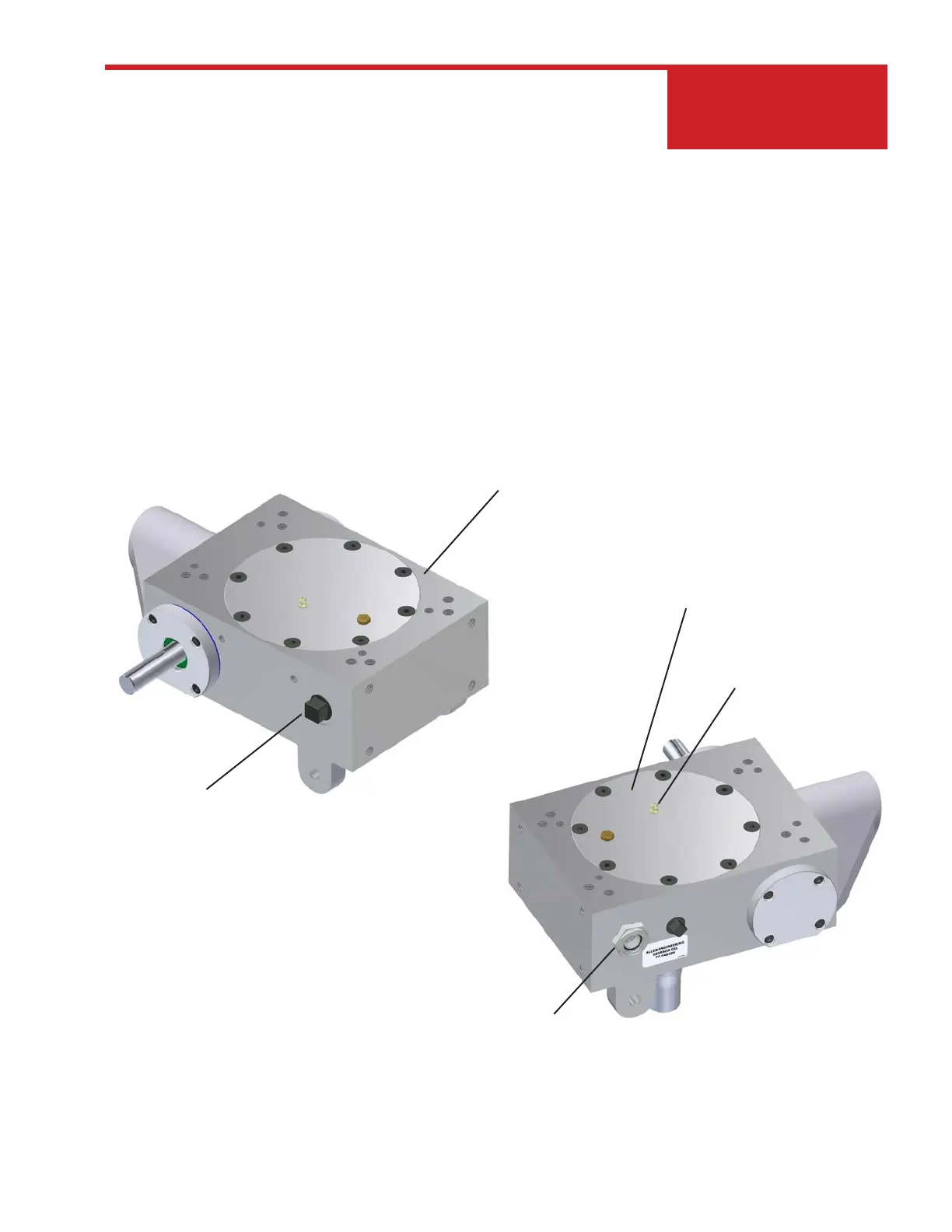

FIGURE 3.2.1
FILL PLUG LOCATION
FIGURE 3.2.2
GREASE FITTING LOCATION
GREASE FITTING
FILL PLUG
SIGHTGLASS
TOP COVER
GEARBOX
