3-14
SECTION 3
SERVICE
053383; 11/10
3.7
Transporting Trowel
3.7 Transporting Trowel Procedures
Optional dolly jacks are available for short moves or to aid in servicing the trowel.
Install dolly jacks as follows:
1) Inspect dolly jack for serviceability and damage.
2) Place riding trowel on firm level ground.
3) Tie steering levers [I] to frame to prevent them from tipping forward when
trowel is being lifted. AEC assumes no liability if injury occurs and this step is
eliminated during any trowel lifting procedures.
4) Insert the front dolly jack [J] fully into the holes in the mainframe of the riding
trowel. The front dolly jacks are equipped with short lifting tubes while the rear
dolly jacks have long lifting tubes.
5) Insert the rear dolly jack [M] with the long lifting tubes into the holes
provided in the rear of the mainframe. The holes in the mainframe are located
directly opposite the front holes.
6) Turn jack handles clockwise to lift trowels and counter-clockwise to lower
trowel.

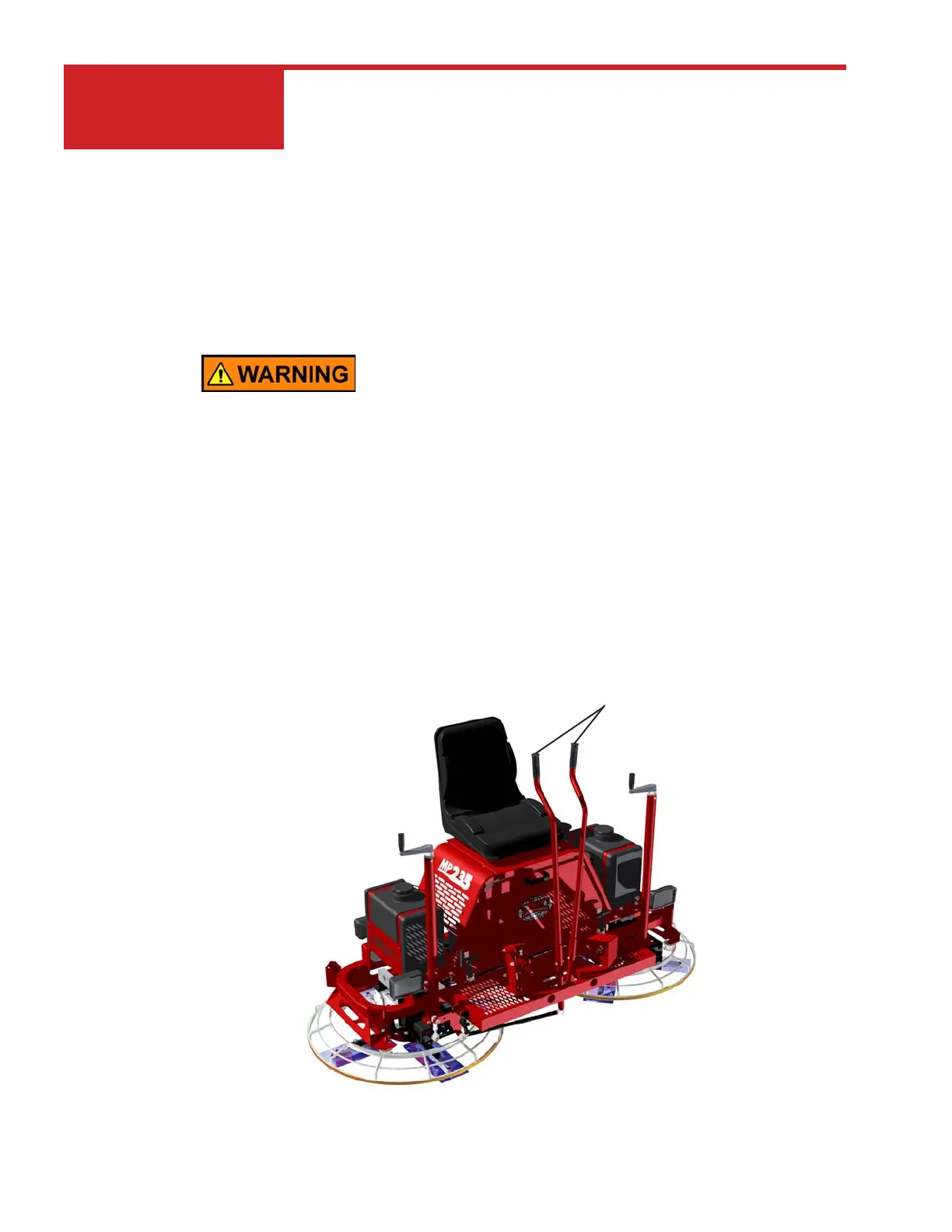

FIGURE 3.7.1
STEERING LEVER LOCATION
[I]
