2-8
SECTION 2
OPERATIONS
053430; 01/11
2.3, continued
Operating Instructions
2.3.2 Stopping The Riding Trowel
To stop the trowel’s movement, let go of the joysticks [B] and [C]. They will return to
their neutral position. Also release pressure on the right foot pedal [E].
New to this machine is the seat kill
switch mechanism.
If in need of an emergency stop, simply turning the key
off or raising off the seat while holding the right foot pedal
down, will stop the engine from running.
2.3.3 Steering The
Riding Trowel
A slight “feath-
ering motion” forward and
backward with the left
hand joystick is
required to move
the machine in a straight
path to the left or right
while operating the
right hand joystick. Refer
to Figure 2.3.3..
Position Action
1 Forward
2 Reverse
3 Rotate clockwise
4 Rotate counter clockwise
5 Left sideways
6 Right sideways

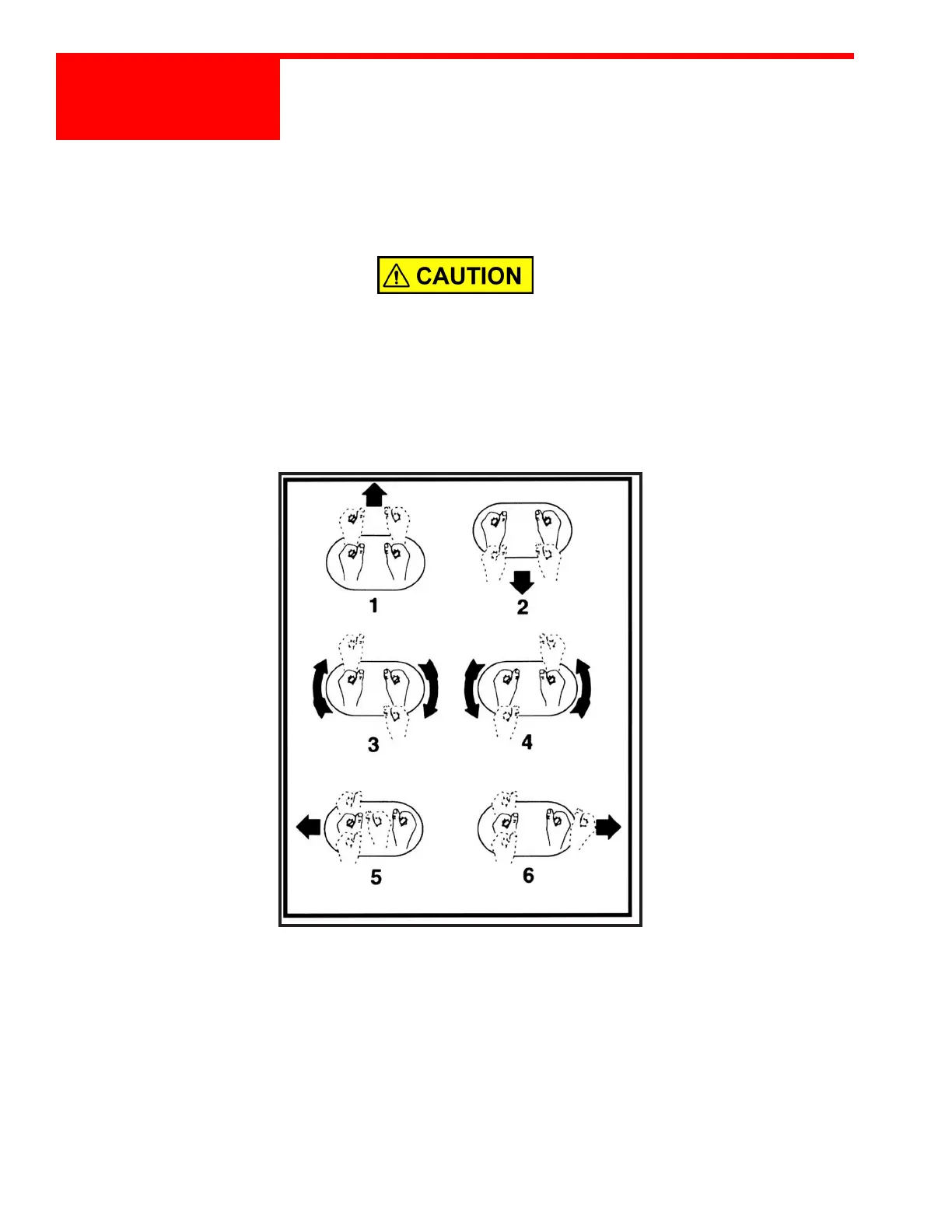

FIGURE 2.3.3
Steering Control Diagram
