allen MSP445 - Transporting Trowel

3-16
SECTION 3
SERVICE
053430; 01/11
The dolly jack lifting system is designed for short moves and
to aid in servicing the trowel. It is not a substitute for a
towing system or trailer. An optional lifting bridle [N]
is available and recommended for lifting the trowel.
Attach the bridle to each of the four lifting eyes [O]
on the trowel. Refer to Figure 3.7.7.
Secure steering levers to frame to prevent them
from tipping forward when the towel is
being lifted.
3.7, continued
Transporting Trowel

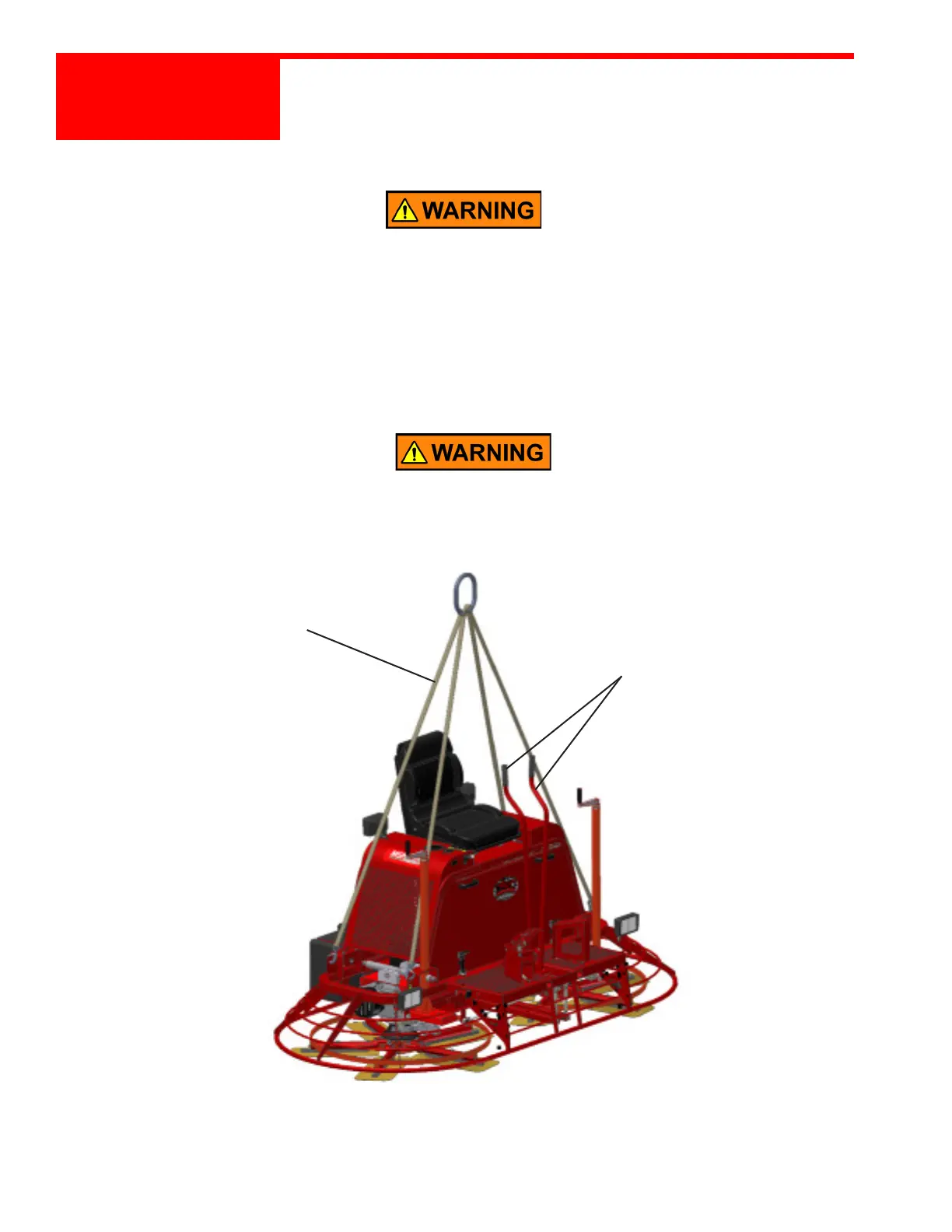

FIGURE 3.7.6
LIFTING BRIDLE
[N]
STEERING LEVERS
VISUAL REPRESENTATION
