allen MSP445 - Trowel Gearbox

3-3
053430; 01/11
SECTION 3
SERVICE
3.2
Trowel Gearbox
3.2 Trowel Gearbox Maintenance
Check Oil levels in the gearbox daily (every 8 hours) Add oil if oil level is below the
check
sight glass.
1) To add oil tilt trowel back and remove the fill plug. Add oil through hole opening.
Replace fill plug after proper level has been achieved. DO NOT fill past the fill
plug hole opening. Use Allen Mobil Oil SHC 634, synthetic ISO VG 460.
2) Each Gearbox has a grease fitting on top cover that must be greased (2 SHOTS
ONLY) every 300 operating hours. Use only Mobilith SHC 220 Extended
pressure grease.

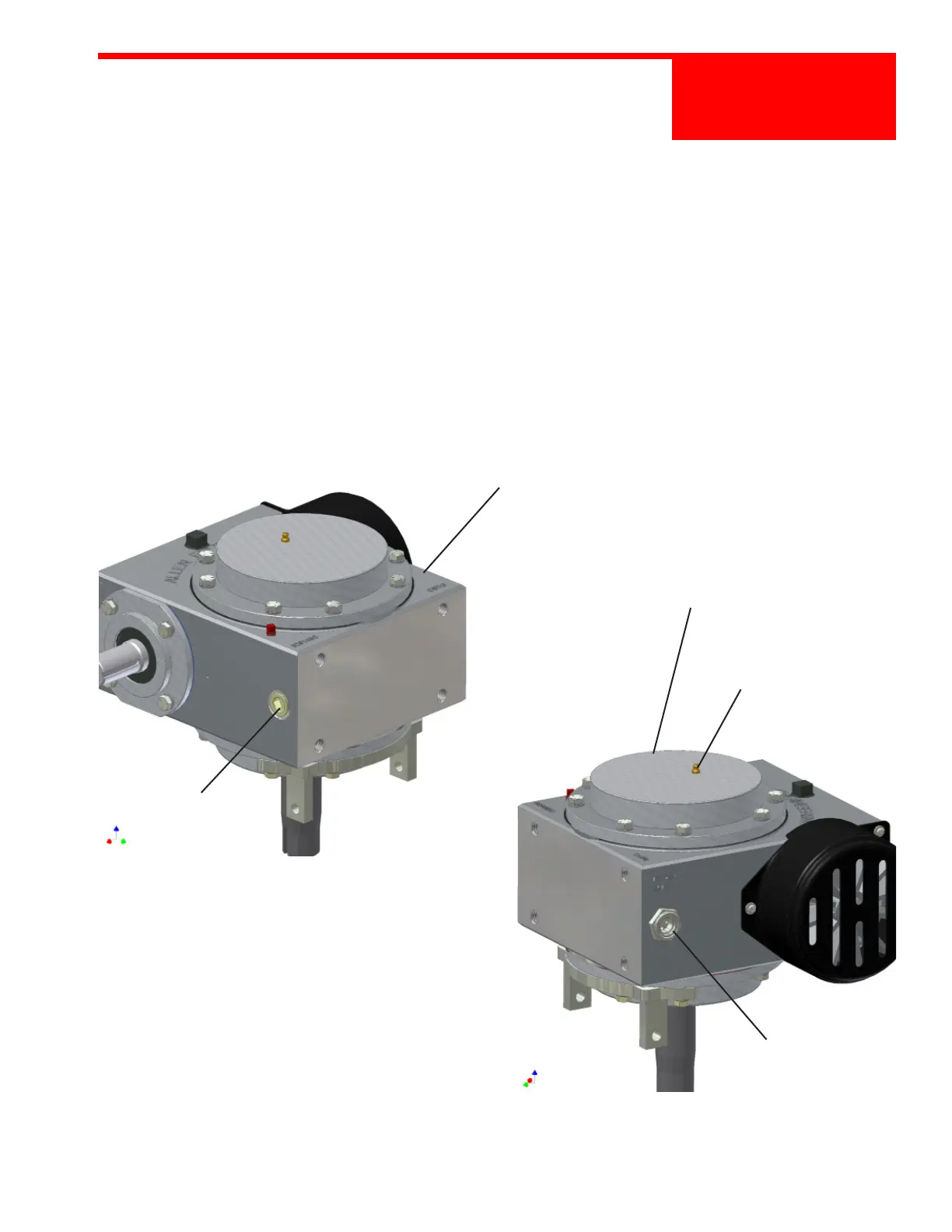

FIGURE 3.2.1
FILL PLUG LOCATION
FIGURE 3.2.2
GREASE FITTING LOCATION
GREASE FITTING
FILL PLUG
SIGHTGLASS
TOP COVER
GEARBOX
