Operating Instructions - cont’d
Pitch Adjustment

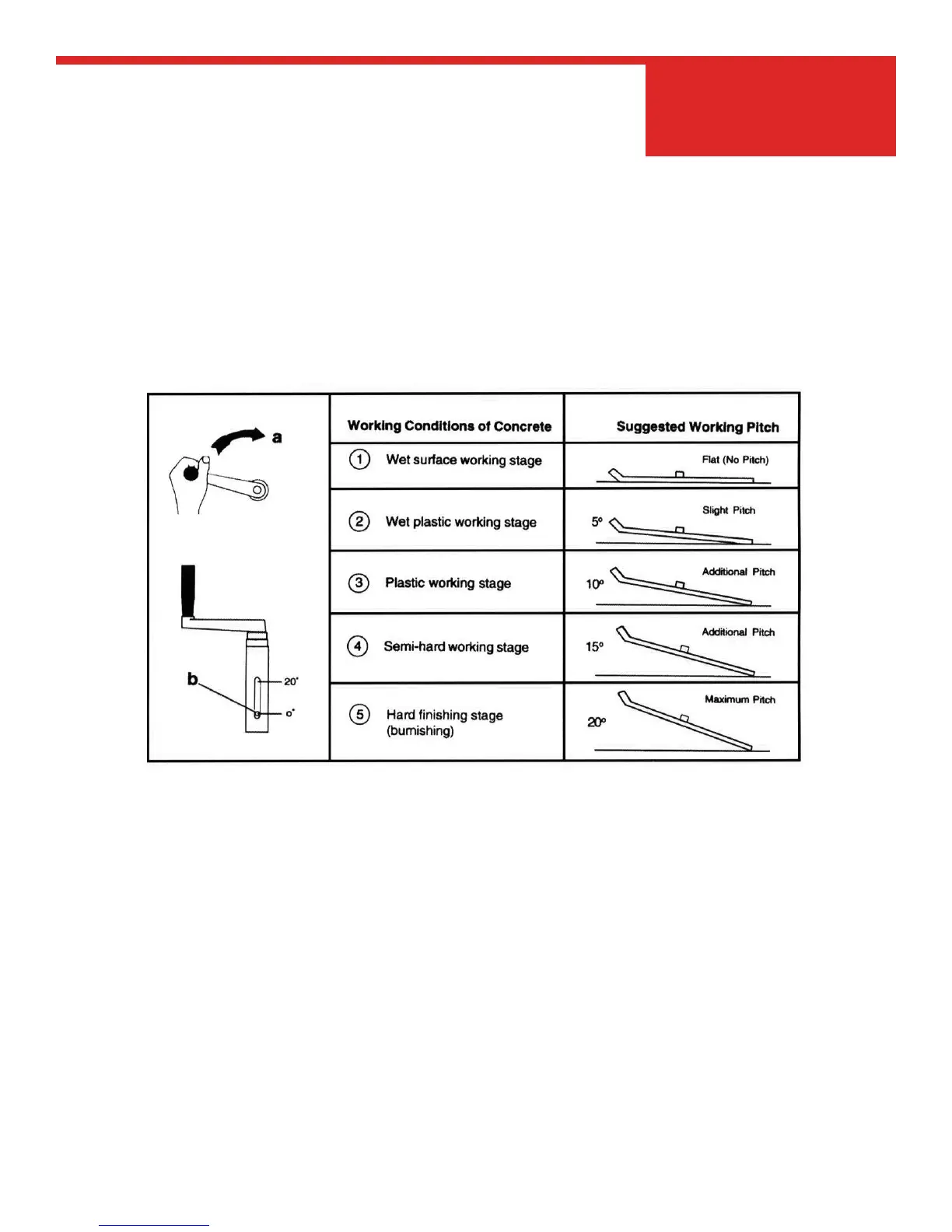

Different pitch angles are needed as you work the different stages of the concrete. Refer to fi gure be-
low. When changing or setting pitch (angle of trowel blades), slow the machine down, set the desired
degree of pitch on the left side of the machine and then adjust the right side to match.
To increase the pitch, turn the pitch control clockwise “a” use the pitch indicator “b” to adjust pitch
equally on both right and left trowel blades.
