allen MSP455 - Right Hand Spider Assembly

052793 - 03/2013
SECTION 4
PARTS
Page 4-32
10
9
5
4
8
7
1
3
2
11
6
ITEM PART NO. DESCRIPTION QTY
1 010050 NUT, 1/2-13 JAM HEX 5
2 015682 WASHER, 3/8 EXT TOOTH LOCK 5
3 015683 BOLT, 3/8-16 X 7/8 DOG PT HEX HD CAP 5
4 015684 NUT, 3/8-16 JAM HEX 5
5 015686 FSTN, SQHSS 3/8-16 X 1 5
6 024755 FITTING, 1/8-27 NPT 45° GREASE 5
7 028216 BOLT, 1/2-13 X 1 1/2 GR 8 CARRIAGE 5
8 033034 LEVER, LIFT SD UNIVERSAL 5
9 040699 SPIDER, LH 5 BOSS CCW ROT 1
10 040700 ARM, 5 BOSS SPIDER ASSY TROWEL 5
11 040792 CLIP, 46-48 UNIV SPIDER SPRING 5

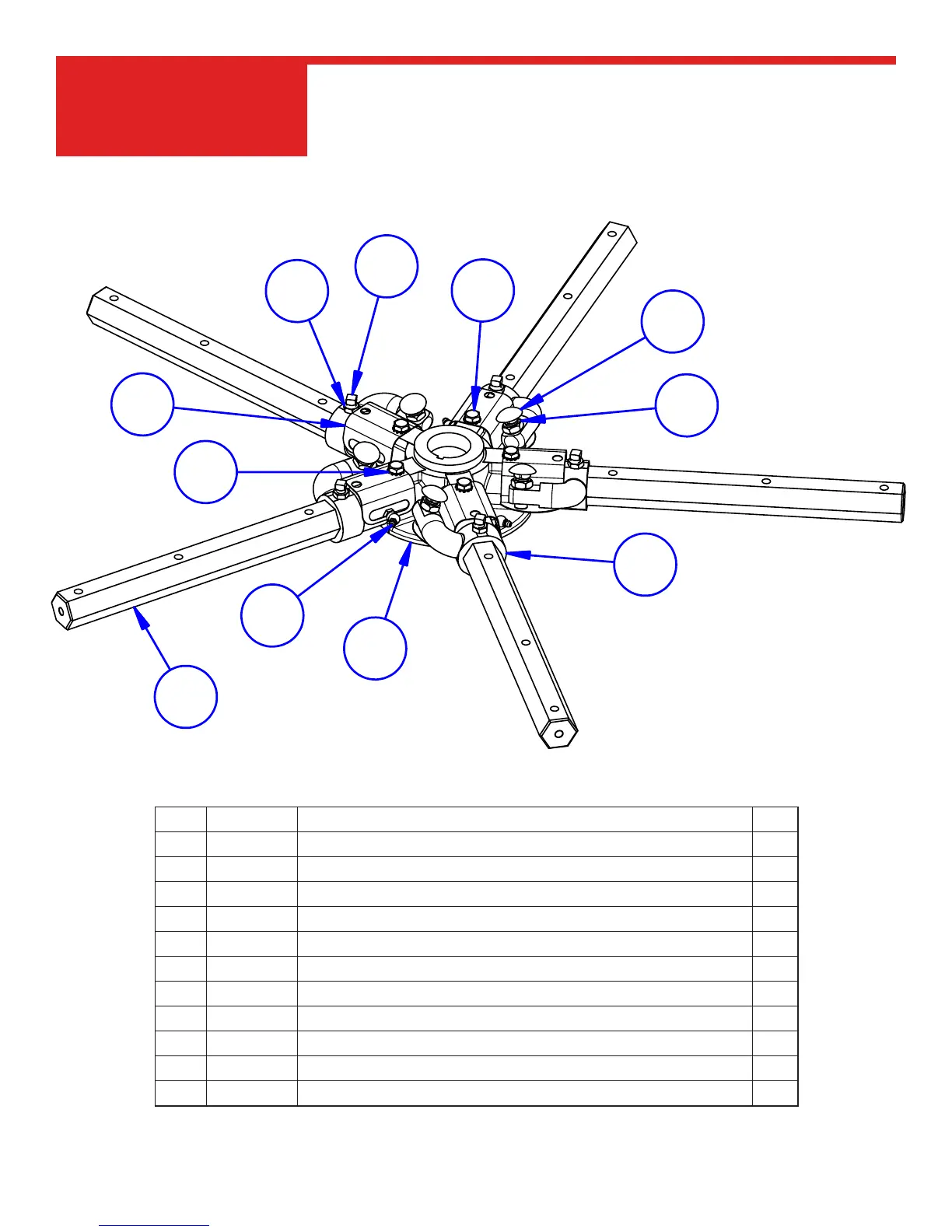

Right Hand Spider Assembly
Illustration and Parts List
