Alliance Laundry Systems SWTT21 - Installation; Dimensions and Specifications

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
201932
6
Installation
Dimensions and Specifications

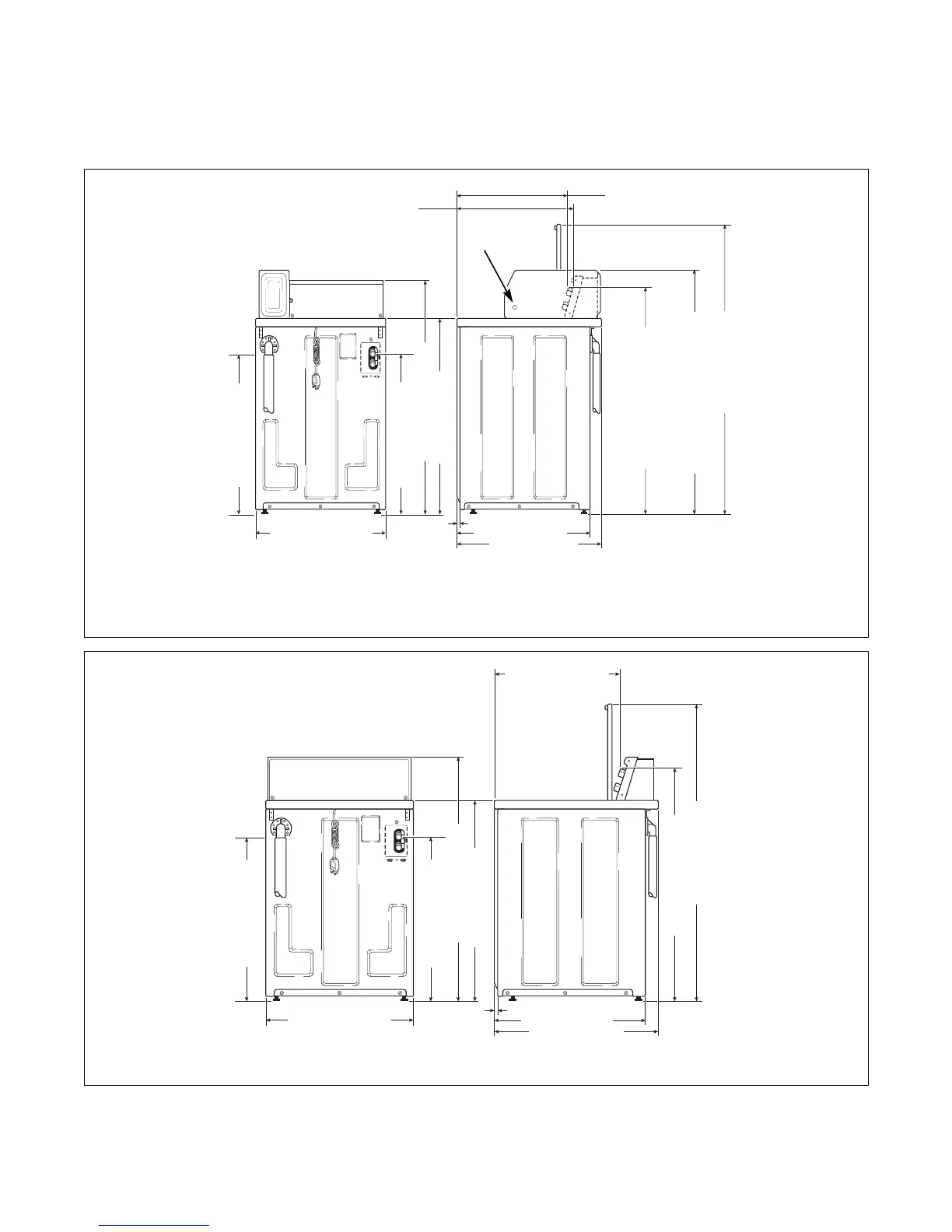

TLW2051N
1 Pilot Hole
C
H
TLW2051N
25.63 in. (65.1 cm)
30.5 in. (74.47 cm)
Standard Capacity Meter Case
43 in. (109.2 cm)
High Capacity Meter Case
43.875 in. (111.44 cm)
0.44 in.
(1.12 cm)
26 in. (66.04 cm)
28.75 in. (73.02 cm)
41.25 in. (104.78 cm)
36 in. (91.44 cm)
51 in. (129.54 cm)
1
28 in. (71.12 cm)
Coin Slide Models
40.38 in. (102.56 cm)
Electronic Control Models
38.19 in. (97 cm)
Coin Slide Models
21.56 in. (54.76 cm)
Electronic Control Models
22.44 in. (57 cm)
METERED MODELS
TLW2050N
C
H
TLW2050N
25.63 in. (65.1 cm)
30.5 in. (74.47 cm)
28 in. (71.12 cm)
0.44 in.
(1.12 cm)
26 in. (66.04 cm)
NONMETERED MODELS
41.25 in. (104.78 cm)
36 in. (91.44 cm)
51 in. (129.54 cm)
28.75 in. (73.02 cm)
40.38 in. (102.56 cm)
21.56 in. (54.76 cm)
