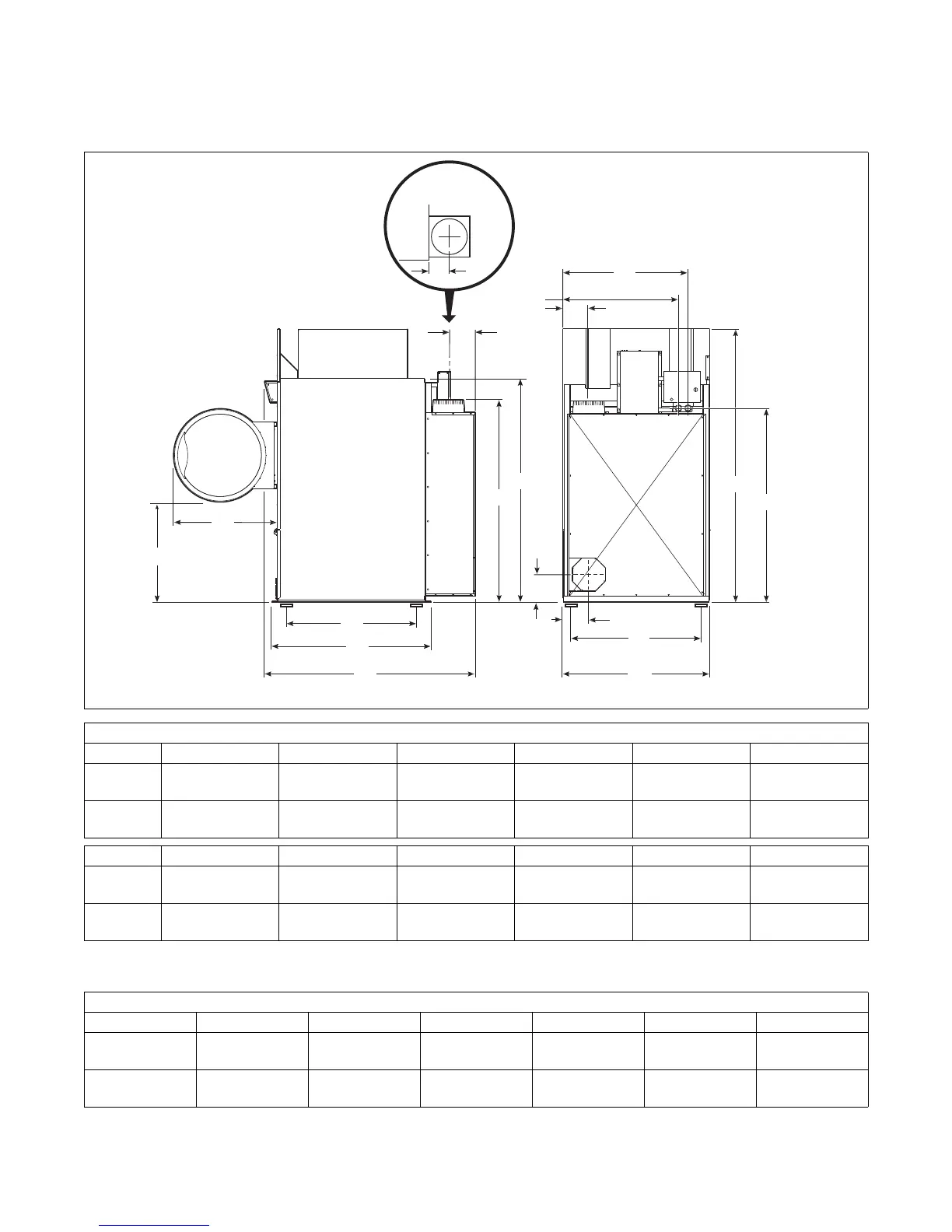

120 Series Tumble Dryer Dimensions
and Exhaust Outlet Locations
* Fire suppression system optional - may not be on machine.
Refer to Position and Level the Tumble Dryer to temporarily reduce the heights of these models.
TMB2396N
TMB2396N
A
B
C
D
U
V
X
H
F
Z
Y
W
TOP VIEW
OF EXHAUST
DUCT
E
G
I
L
J
K
Cabinet Dimensions
ModelsABCDEF
120L/N/E
797 mm
(31.38 in.)
826 mm
(32.5 in.)
1242 mm
(48.91 in.)
1268 mm
(49.91 in.)
1725 mm
(67.92 in.)
1153 mm
(45.38 in.)
120S
797 mm
(31.38 in.)
826 mm
(32.5 in.)
1242 mm
(48.91 in.)
1268 mm
(49.91 in.)
1725 mm
(67.92 in.)
1153 mm
(45.38 in.)
Models G H I J* K* L*
120L/N/E
1178 mm
(46.38 in.)
2177 mm.
(85.7 in.)
1778 mm.
(70 in.)
1057 mm
(41.6 in.)
1097 mm
(43.2 in.)
1562 mm
(61.5 in.)
120S
1178 mm
(46.38 in.)
2121 mm
(83.5 in.)
1778 mm
(70 in.)
1057 mm
(41.6 in.)
1097 mm
(43.2 in.)
1562 mm
(61.5 in.)
Exhaust Outlet Dimensions and Locations
Models U V W X Y Z
120L/N/E
1612 mm
(63.45 in.)
214 mm
(8.44 in.)
127 mm
(5 in.)
208 mm
(8.18 in.)
173 mm
(6.82 in.)
208 mm
(8.18 in.)
120S
1542 mm
(60.7 in.)
214 mm
(8.44 in.)
127 mm
(5 in.)
208 mm
(8.18 in.)
173 mm
(6.82 in.)
208 mm
(8.18 in.)
