ALLIANCE 120 Series User Manual

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Specifications and Dimensions
70458101 (EN)
14

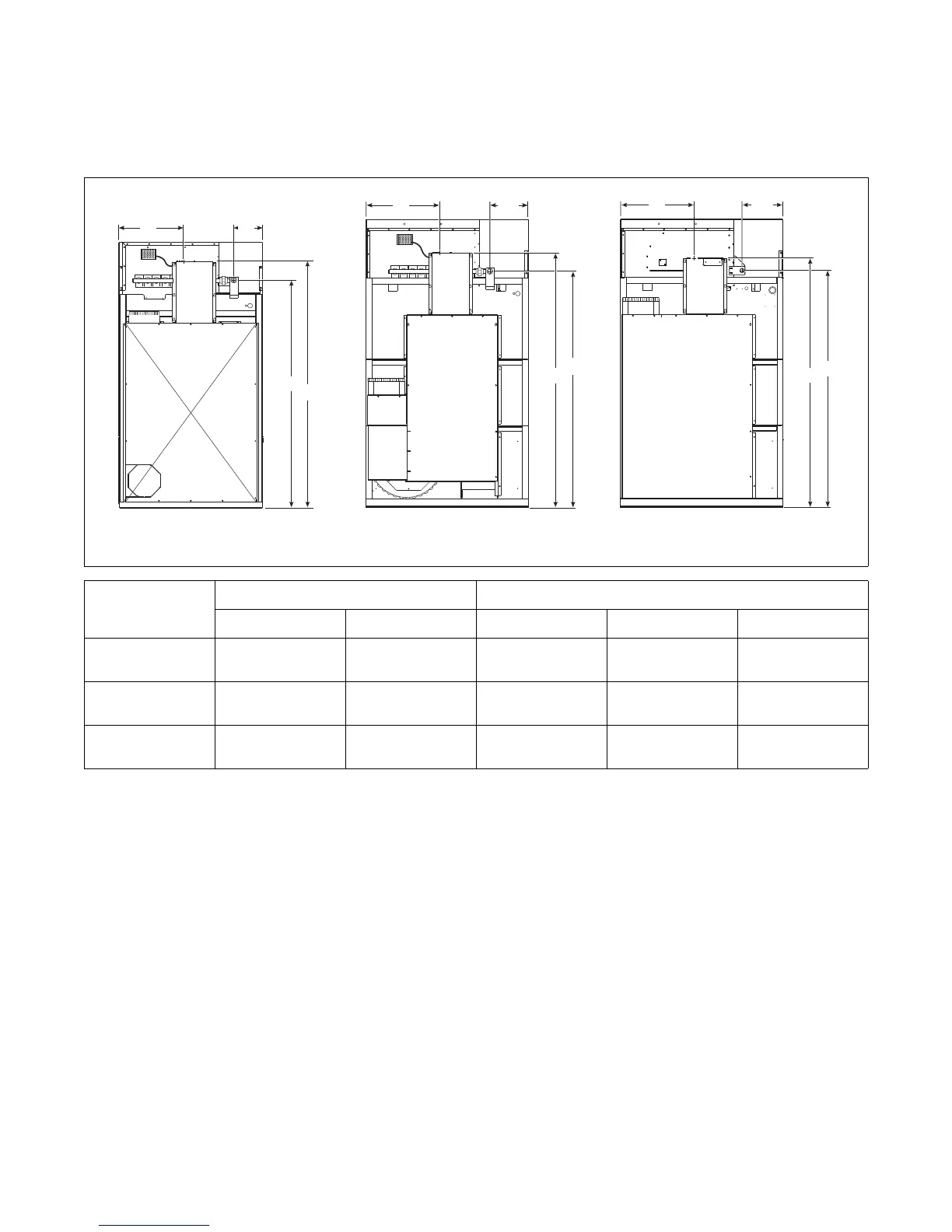

Electric and Gas Connection
Locations for Gas Models Through
3/10/13
TMB2255N TMB2382N
A
C
C
A
B
B
D
120L/N 170L/N
D
C
A
B
D
200L/N
Models
Electrical Connection Gas Connection
ABCDDiameter
120L/N
466 mm
(18.34 in.)
1977 mm
(77.84 in.)
318 mm
(12.5 in.)
1791 mm
(70.5 in.)
3/4 in. NPT
170L/N
533 mm
(21 in.)
2057 mm
(81 in.)
377 mm
(14.85 in.)
1966 mm
(77.4 in.)
1 in. NPT
200L/N
533 mm
(21 in.)
2057 mm
(81 in.)
348 mm
(13.7 in.)
1966 mm
(77.4 in.)
1 in. NPT
