Chapter 3: Microsoft Windows 2000, 2003, and XP
80
3. Click the Device Manager button.

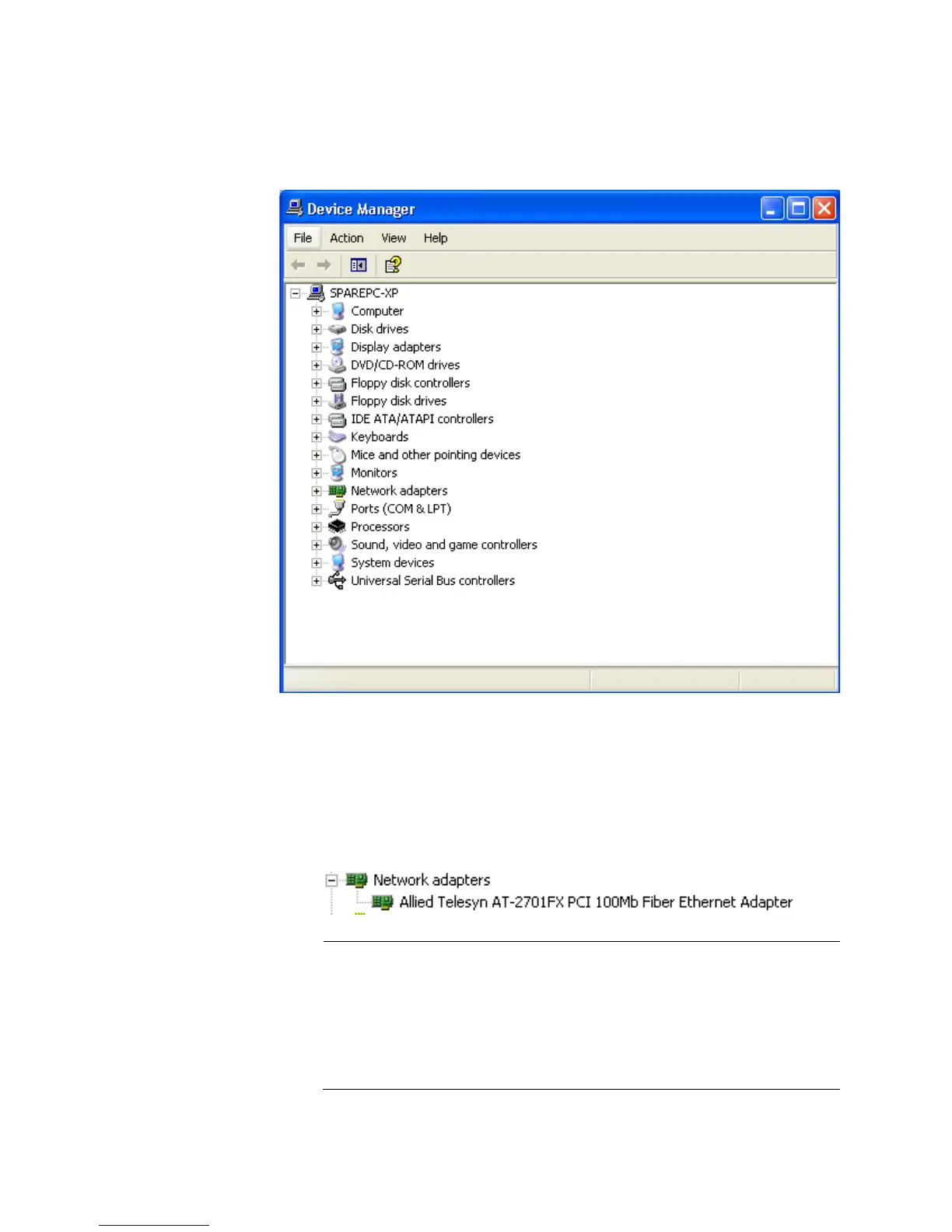

The Device Manager window is shown in Figure 39.
Figure 39. Device Manager Window
4. Expand Network adapters by either double-clicking on it or by clicking
once on the expansion box next to it.
The network adapter cards installed on the system are listed under
Network adapters. An example is shown here.
Note
The branch under Network Adapters will include VLANs if VIDs were
added to the adapter with the AT-MUX protocol. The VLANs are
labelled as “Allied Telesyn VLAN-Tagging miniport Driver.” In the
next step you must choose the selection for the network adapter
card and not a VLAN. The adapter card selection has the adapter’s
model number in the label.
