Overview
2
Table 1 lists the maximum operating distances for the media converters.
Table 1 Maximum Operating Distances
Key Features
The media converters have the following key features:
❑ LEDs for unit and port status
❑ MDI/MDI-X button
❑ Link Test/MissingLink button for performing a link test and
activates the MissingLink feature which notifies end-nodes of
connection failures
❑ 100Base-TX twisted pair port operates in half- or full-duplex mode
❑ 100Base-FX fiber optic port operates in half- or full-duplex mode

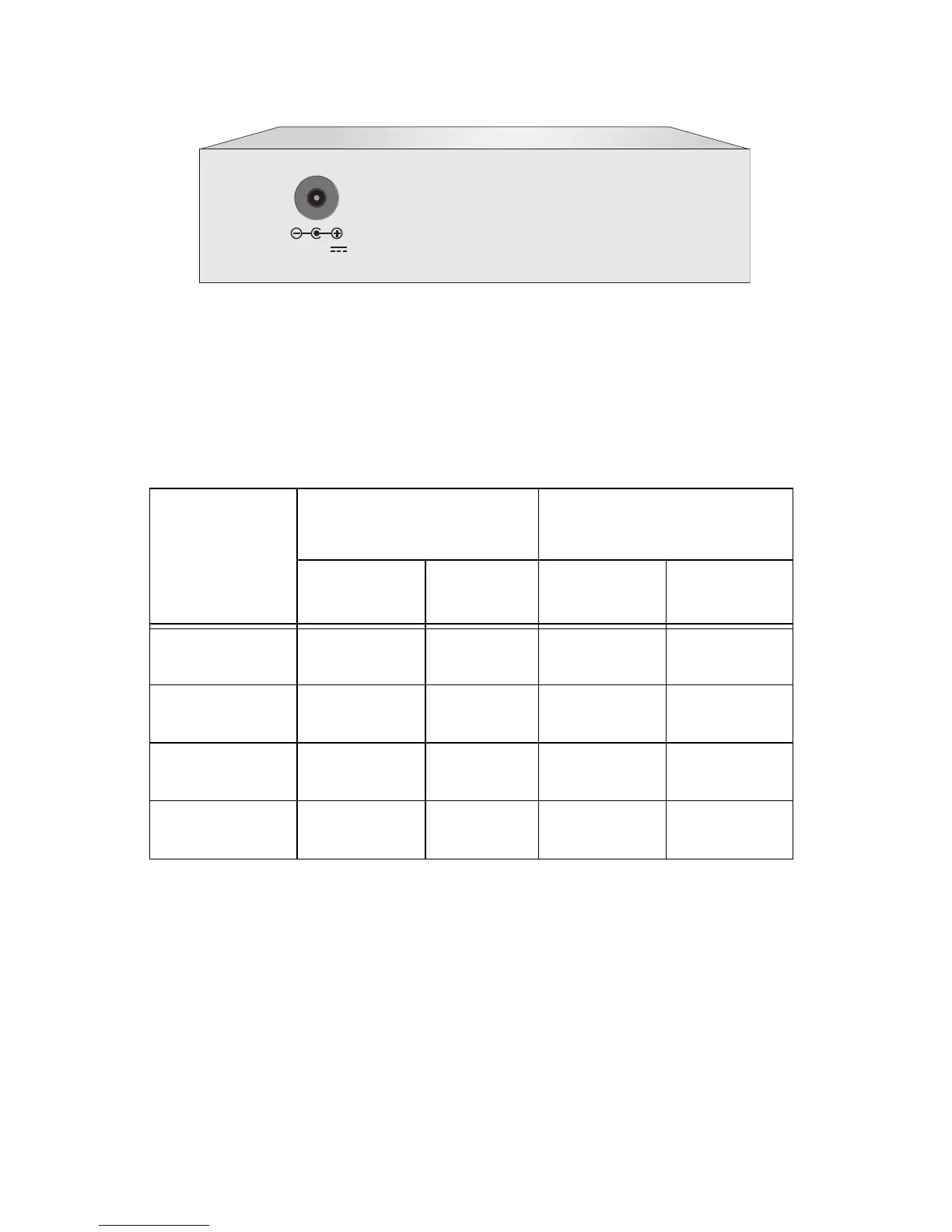

❑ External AC/DC power adapter
❑ Standard size for use in an AT-MCR12 chassis
Model Type of Connector Maximum Operating Distance
100Base-FX 100Base-TX 100Base-FX
1
1. Maximum distance may be less depending on the duplex mode of the end stations and the type of fiber optic
cabling used with the port.
100Base-TX
AT-MC101XL ST RJ-45 2 km (1.2 mi) 100 m (328 ft)
AT-MC102XL SC RJ-45 2 km (1.2 mi) 100 m (328 ft)
AT-MC103XL SC RJ-45 15 km (9.3 mi) 100 m (328 ft)
AT-MC103LH SC RJ-45 40 km
(24.8 mi)
100 m (328 ft)
AT-MC103SC/FS3 SC RJ-45 75 km
(46.5 mi)
100 m (328 ft)
AT-MC103ST/FS3 ST RJ-45 75 km
(46.5 mi)
100 m (328 ft)
AT-MC103SC/FS4 SC RJ-45 100 km (62 mi) 100 m (328 ft)
AT-MC103ST/FS4 ST RJ-45 100 km (62 mi) 100 m (328 ft)
