AT-TQ5403 Access Point Installation Guide
41
External AC/DC
Power Adapter
Installation
Allied Telesis recommends that you procure an AT-MWS0091 Power
Adapter if you choose to use an external power supply. Perform the
following procedure
1. Check the AC plug on the external power supply and verify that it is the
correct plug for your region. If it is not, follow the instructions provided
with the external power supply to install an optional AC plug that is
compatible with your region.
2. Plug the Power Adapter DC plug into the DC-IN jack on the access
point. Refer to Figure 14.

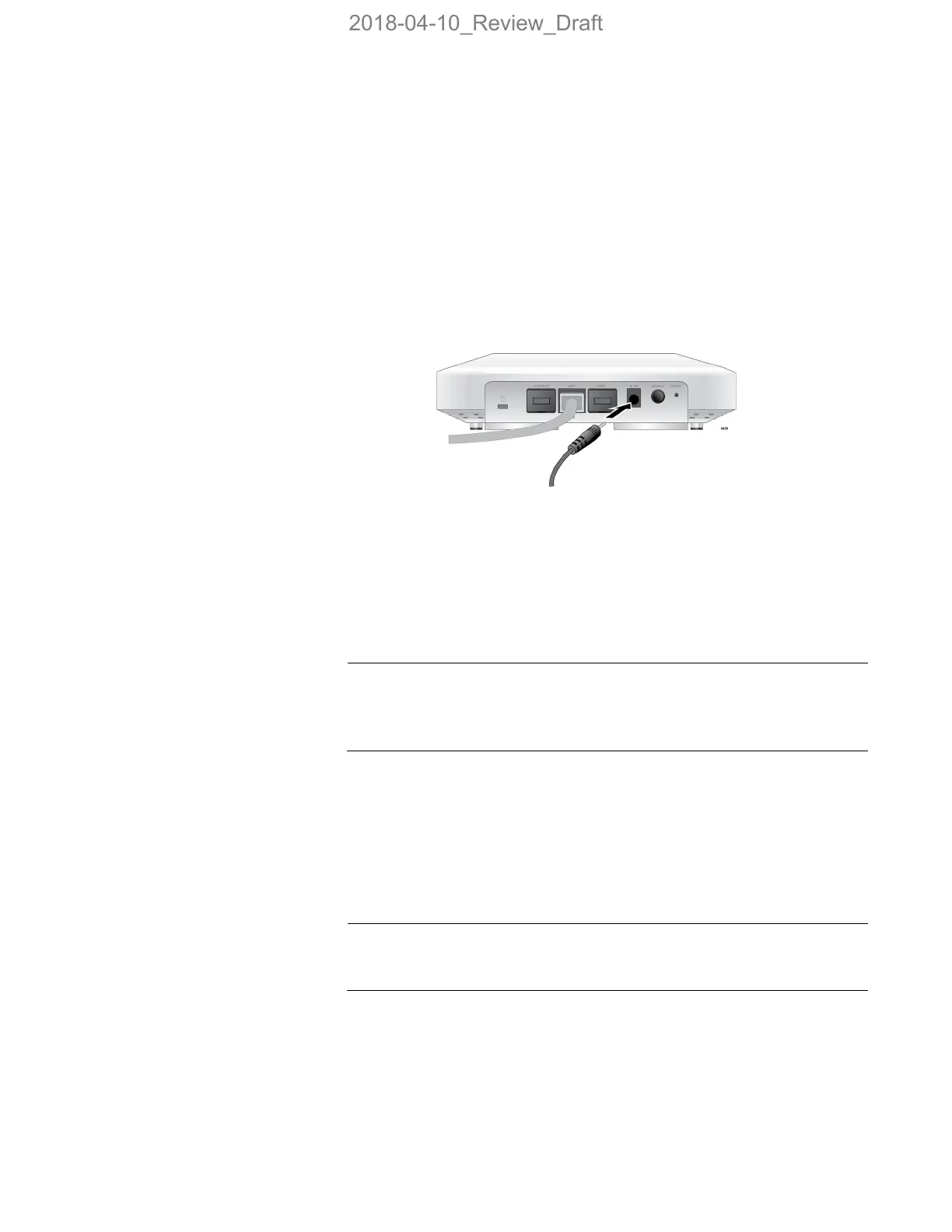

Figure 14. Connecting the External AC/DC Power Adapter Cable
3. Connect the external power supply AC plug to an appropriate AC
power source.
4. On the AT-TQ5403 chassis, push the DC Power Button to the
“IN” position to turn ON the power supply at the chassis.
The DC Power Button only controls the ON/OFF power into the
DC-IN jack. The PoE+ power provided on LAN1 is not affected by
this button.
5. Go to the ”Install Anti-theft Device” section.
Install Anti-theft
Device
Installation of an anti-theft cable/lock is optional. If you elect to install a
physical security device such as a Kensington lock, the AT-TQ5403 has a
lock port that is compatible with it. The lock port can be used to physically
secure the device when it is installed on a table, wall, or a ceiling.
Anti-theft devices including a Kensington lock are not available from
Allied Telesis.
