Allied 595 - Lubrication and Decals Location Diagram.9

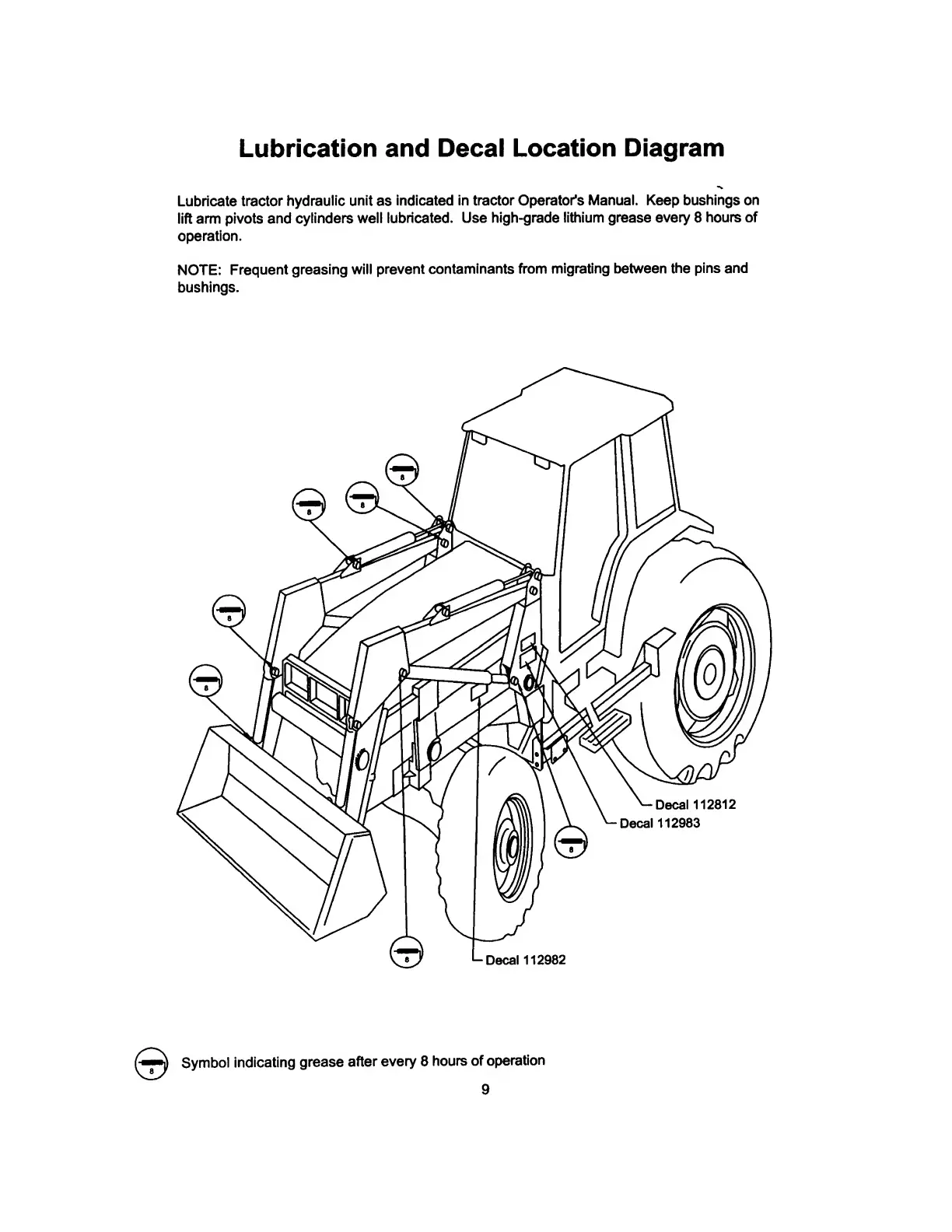

Lubrication and Decal Location Diagram
Lubricate tractor hydraulic unit as indicated in tractor Operator's Manual. Keep bushings on
lift arm pivots and cylinders well lubricated. Use high-grade lithium grease every 8 hours of
operation.
NOTE: Frequent greasing will prevent contaminants from migrating between the pins and
bushings.
Symbol indicating grease
after every 8 hours of operation
9
