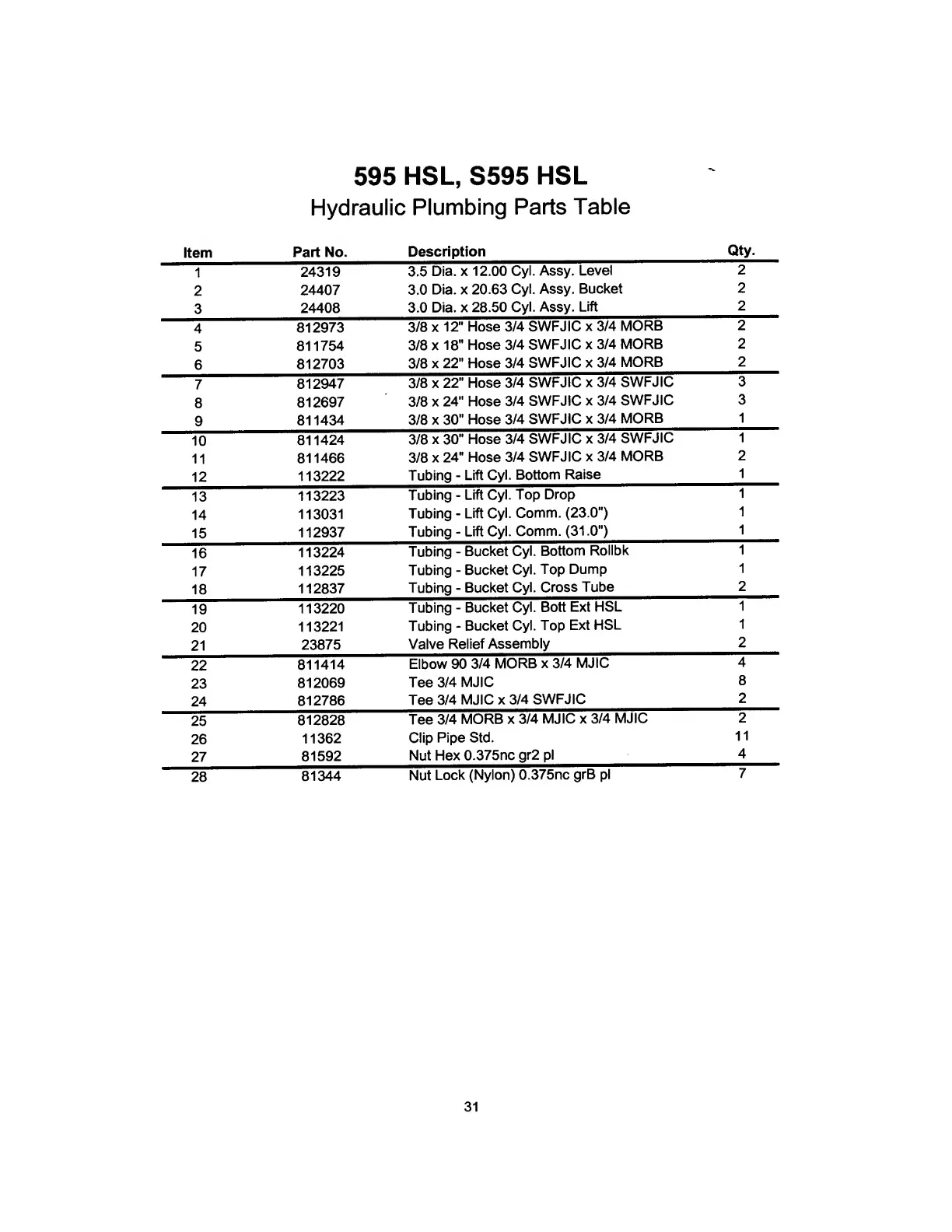

595 HSL, S595 HSL
Hydraulic Plumbing Parts Table
Item
Part No.
Description
Qty.
1
24319
3.5 Dia. x 12.00 Cyl. Assy. Level
2
2
24407
3.0 Dia. x 20.63 Cyl. Assy. Bucket
2
3
24408
3.0 Dia. x 28.50 Cyl. Assy. Lift
2
4
812973
3/8 x 12" Hose 3/4 SWFJIC x 3/4 MORB
2
5
811754
3/8 x 18" Hose 3/4 SWFJIC x 3/4 MORB
2
6
812703
3/8 x 22" Hose 3/4 SWFJIC x 3/4 MORB
2
7
812947
3/8 x 22" Hose 3/4 SWFJIC x 3/4 SWFJIC
3
8
812697
3/8 x 24" Hose 3/4 SWFJIC x 3/4 SWFJIC
3
9
811434
3/8 x 30" Hose 3/4 SWFJIC x 3/4 MORB
1
10
811424
3/8 x 30" Hose 3/4 SWFJIC x 3/4 SWFJIC
1
11
811466
3/8 x 24" Hose 3/4 SWFJIC x 3/4 MORB
2
12
113222
Tubing - Lift Cyl. Bottom Raise
1
13
113223
Tubing - Lift Cyl. Top Drop
1
14
113031
Tubing - Lift Cyl. Comm. (23.0”)
1
15
112937
Tubing - Lift Cyl. Comm. (31.0")
1
16
113224
Tubing - Bucket Cyl. Bottom Rollbk
1
17
113225
Tubing - Bucket Cyl. Top Dump
1
18
112837
Tubing - Bucket Cyl. Cross Tube
2
19
113220
Tubing - Bucket Cyl. Bott Ext HSL
1
20
113221
Tubing - Bucket Cyl. Top Ext HSL
1
21
23875
Valve Relief Assembly
2
22
811414
Elbow 90 3/4 MORB x 3/4 MJIC
4
23
812069
Tee 3/4 MJIC
8
24
812786
Tee 3/4 MJIC x 3/4 SWFJIC
2
25
812828
Tee 3/4 MORB x 3/4 MJIC x 3/4 MJIC
2
26
11362
Clip Pipe Std.
11
27
81592
Nut Hex 0.375nc gr2 pi
4
28
81344
Nut Lock (Nylon) 0.375nc grB pi
7
31
