Allied 595 - Removing the Loader from Your Tractor.16

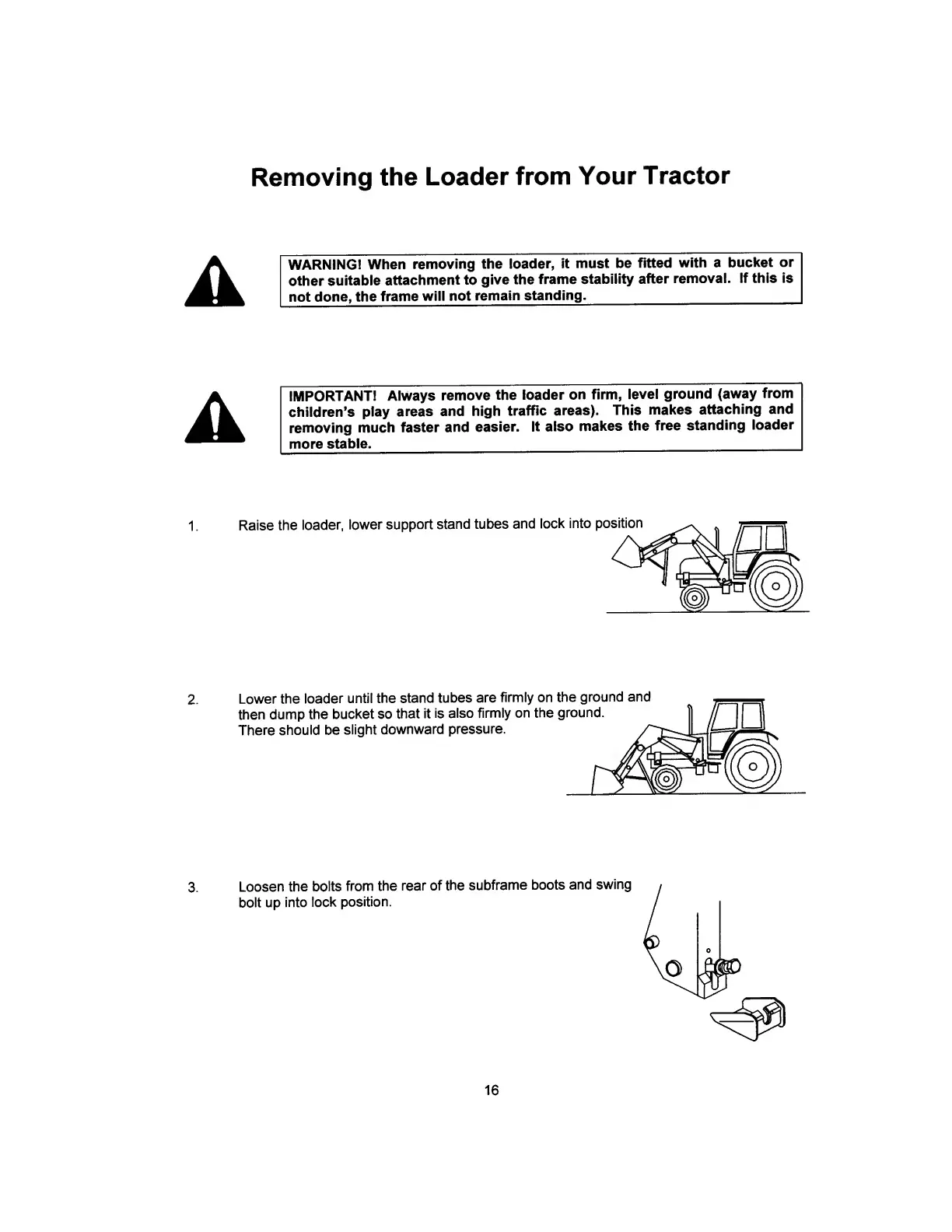

Removing the Loader from Your Tractor
WARNING! When removing the loader, it must be fitted with a bucket or
other suitable attachment to give the frame stability after removal. If this is
not done, the frame will not remain standing._
IMPORTANT! Always remove the loader on firm, level ground (away from
children’s play areas and high traffic areas). This makes attaching and
removing much faster and easier. It also makes the free standing loader
more stable. _
1 .
Raise the loader, lower support stand tubes and lock into position
2 .
Lower the loader until the stand tubes are firmly on the ground and
then dump the bucket so that it is also firmly on the ground.
There should be slight downward pressure.
3.
Loosen the bolts from the rear of the subframe boots and swing
bolt up into lock position.
16
