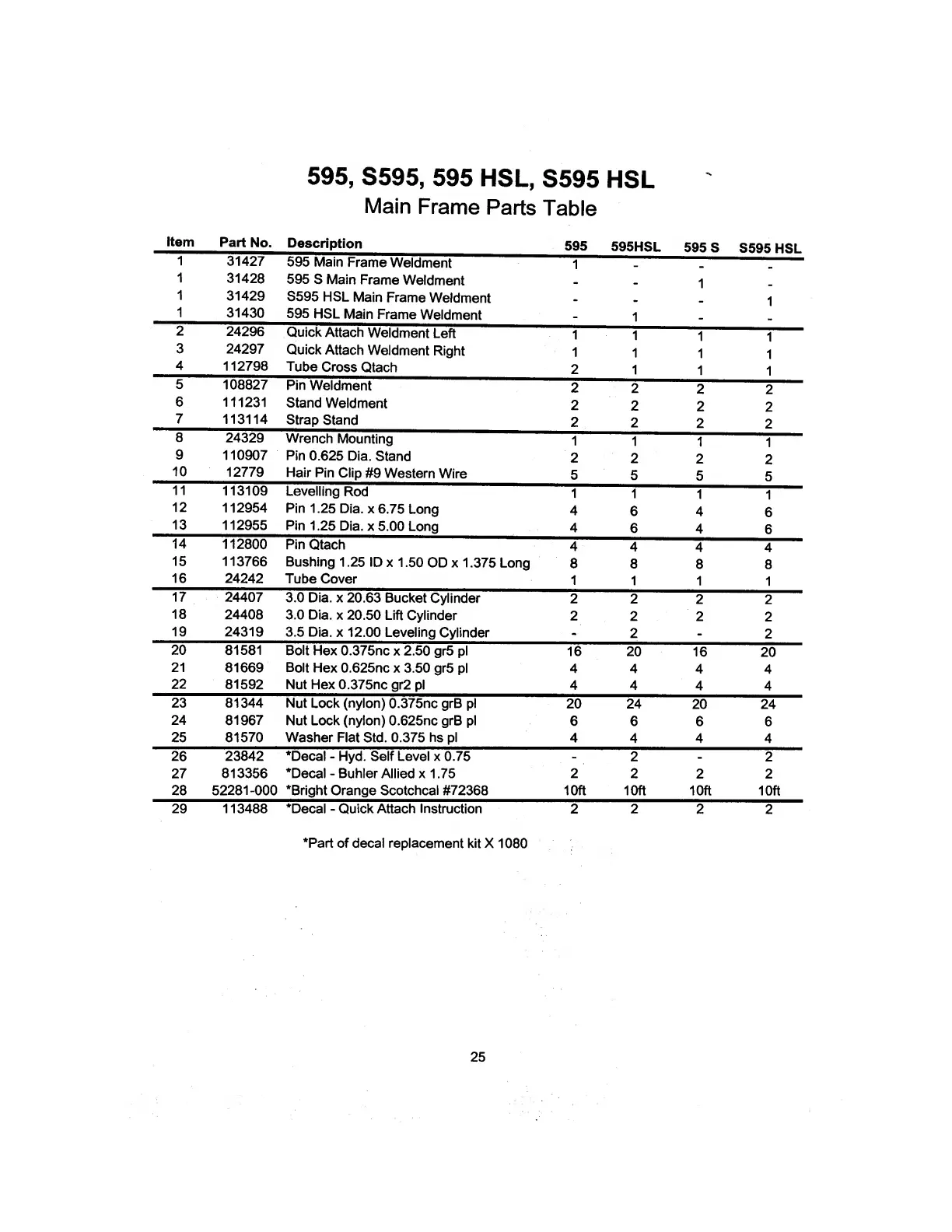

595, S595, 595 HSL, S595 HSL
Main Frame Parts Table
Item
Part No.
Description
595
595HSL
595 S
S595 HSL
1
31427
595 Main Frame Weldment
1
_
_
1
31428
595 S Main Frame Weldment
_ _
1
1
31429
S595 HSL Main Frame Weldment
_
_
1
1
31430
595 HSL Main Frame Weldment
-
1
-
2
Quick Attach Weldment Left
1
1
1 1
3
24297
Quick Attach Weldment Right
1
1
1
1
4
112798
Tube Cross Qtach
2
1
1
1
5
108827
Pin Weldment
2
2
2
2
6
111231
Stand Weldment
2
2
2
2
7
113114
Strap Stand
2
2
2
2
8
24329
Wrench Mounting
1
1
1
1
9
110907
Pin 0.625 Dia. Stand
2
2
2
2
10
12779
Hair Pin Clip #9 Western Wire
5
5
5
5
11
113109
Levelling Rod
1 1
1
1
12
112954
Pin 1.25 Dia. x 6.75 Long
4
6
4
6
13
112955
Pin 1.25 Dia. x 5.00 Long
4
6
4
6
14
112800
Pin Qtach
4
4
4
4
15
113766
Bushing 1.25 ID x 1.50 OD x 1.375 Long
8
8
8
8
16
24242
Tube Cover
1 1
1
1
17
3.0 Dia. x 20.63 Bucket Cylinder
2
2
2
2
18
24408
3.0 Dia. x 20.50 Lift Cylinder
2
2
2
2
19
24319
3.5 Dia. x 12.00 Leveling Cylinder
-
2
-
2
20
81581
Bolt Hex 0.375nc x 2.50 gr5 pi
16
20
16
20
21
81669
Bolt Hex 0.625nc x 3.50 gr5 pi
4 4
4
4
22
81592
Nut Hex 0.375nc gr2 pi
4
4 4
4
23 81344
Nut Lock (nylon) 0.375nc grB pi
20 24
20 24
24 81967
Nut Lock (nylon) 0.625nc grB pi
6
6 6
6
25 81570
Washer Flat Std. 0.375 hs pi
4
4
4
4
26
23842
‘Decal - Hyd. Self Level x 0.75
-
2
-
2
27 813356
‘Decal - Buhler Allied x 1.75
2
2 2 2
28 52281-000 ‘Bright Orange Scotchcal #72368 10ft
10ft 10ft
10ft
29 113488 ‘Decal - Quick Attach Instruction
2
2
2
2
‘Part of decal replacement kit X 1080
25
