Allied 595 - Page 29

595 TSL, S595 TSL

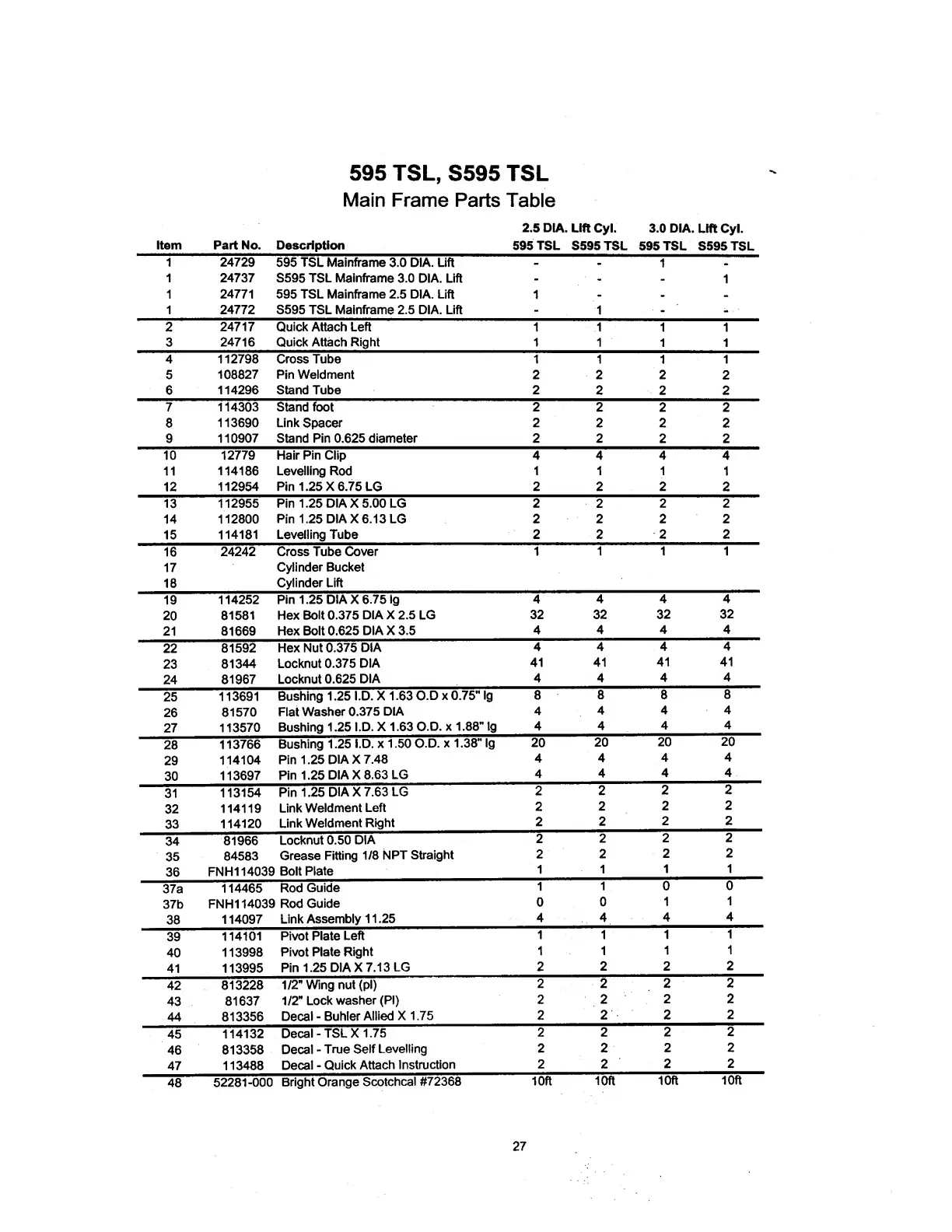

Main Frame Parts Table
Item
Part No. Description
2.5 DIA. Lift Cyl.
595 TSL S595TSL
3.0 DIA. Lift Cyl.
595 TSL S595TSL
1
24729 595 TSL Mainframe 3.0 DIA. Lift
-
1
-
1 24737
S595 TSL Mainframe 3.0 DIA. Lift
-
-
-
1
1 24771
595 TSL Mainframe 2.5 DIA. Lift
1
- - -
1
24772
S595 TSL Mainframe 2.5 DIA. Lift
-
1 -
2 24717 Quick Attach Left
1 1 1 1
3 24716 Quick Attach Right
1 1
1 1
4
112798 Cross Tube
1 1 1 1
5
108827
Pin Weldment 2
2 2
2
6
114296
Stand Tube 2
2 2 2
7 114303 Stand foot
2
2 2 2
8
113690 Link Spacer 2
2
2
2
9
110907 Stand Pin 0.625 diameter 2 2
2 2
10 12779 Hair Pin Clip 4 4 4 4
11
114186
Levelling Rod 1 1 1
1
12
112954
Pin 1.25X6.75 LG
2
2
2
2
13
112955 Pin 1.25 DIA X 5.00 LG 2 2 2 2
14 112800 Pin 1.25 DIA X 6.13 LG
2 2 2 2
15
114181
Levelling Tube
2
2 2 2
16
17
18
24242
Cross Tube Cover
Cylinder Bucket
Cylinder Lift
1
1
1 1
19
114252
Pin 1.25 DIA X 6.75 Ig
4
4 4 4
81581
Hex Bolt 0.375 DIA X 2.5 LG
32 32
32
32
21
81669
Hex Bolt 0.625 DIA X 3.5
4
4 4
4
22
81592
Hex Nut 0.375 DIA
4
4
4
4
23
81344
Locknut 0.375 DIA
41
41
41 41
24
81967
Locknut 0.625 DIA
4 4
4
4
25
113691
Bushing 1.25 I.D. X 1.63 O.D x 0.75" Ig
8
8 8
8
26
81570
Flat Washer 0.375 DIA
4
4
4
4
27
113570
Bushing 1.25 I.D. X 1.63 O.D. x 1.88" Ig
4
4
4
4
28
113766
Bushing 1.25 I.D. x 1.50 O.D. x 1.38" Ig
20
20
20 20
29
114104
Pin 1.25 DIA X 7.48
4
4
4 4
113697
Pin 1.25 DIA X 8.63 LG
4
4
4
4
31
113154
Pin 1.25 DIA X 7.63 LG
2
2
2
2
32
114119
Link Weldment Left
2
2
2
2
33
114120
Link Weldment Right
2
2
2
2
34
81966
Locknut 0.50 DIA
2
2
2
2
35
84583
Grease Fitting 1/8 NPT Straight
2
2
2
2
36
FNH114039 Bolt Plate
1
1 1
1
37a
114465
Rod Guide
1
1 0
0
37b
FNH114039 Rod Guide
0
0
1
1
38
114097
Link Assembly 11.25
4
4
4
4
39
114101
Pivot Plate Left
1 1
1
1
113998
Pivot Plate Right
1
1
1
1
41 113995
Pin 1.25 DIA X 7.13 LG
2
2 2
2
42
813228
1/2" Wing nut (pi)
2
2 2
2
43
81637
1/2" Lock washer (PI)
2
2
2 2
44
813356
Decal -Buhler Allied X 1.75
2 2
2
2
45
114132
Decal - TSL X 1.75
2 2
2 2
46
813358
Decal - True Self Levelling
2 2
2 2
47 113488
Decal - Quick Attach Instruction
2 2
2
2
48
52281-000
Bright Orange Scotchcal #72368
10ft 10ft
10ft
10ft
